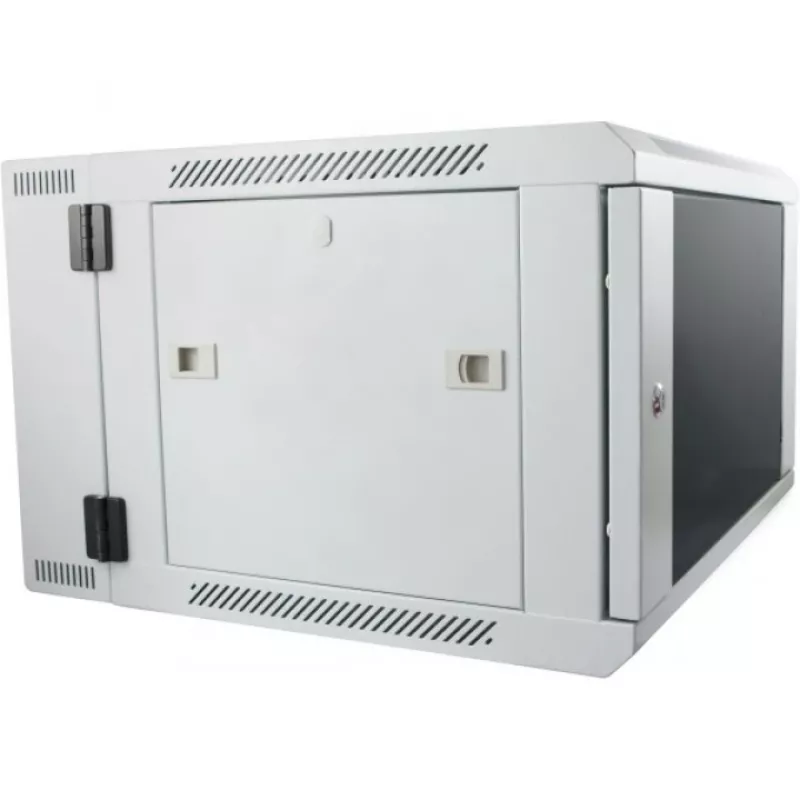

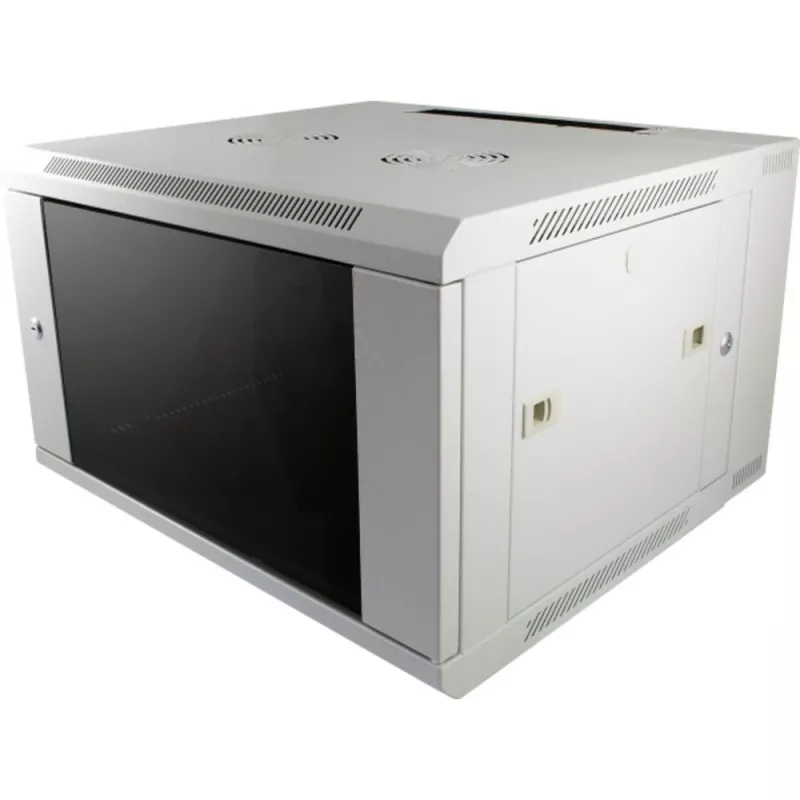

ALLNET SMB6612 12U 19-Inch Grey Floor Rack Cabinet with Glass Door, 600x600mm

In a small office or branch location, IT staff often need a secure, tidy place to mount a switch, patch panel, and a compact server. The ALLNET SMB6612 provides exactly that: a compact floor-standing enclosure with a neutral grey finish that blends into professional spaces. Its 12U of 19-inch rack space accommodates standard networking gear, while the lockable tempered glass front door keeps equipment visible yet protected. Removable side panels and a steel rear panel allow easy access during installation and maintenance.

Key specifications

• Rack capacity: 12U, 19-inch standard
• External dimensions (WxDxH): 600 x 600 x 640 mm
• Colour: Grey (RAL 7035)
• Material: Steel
• Front door: Lockable tempered glass

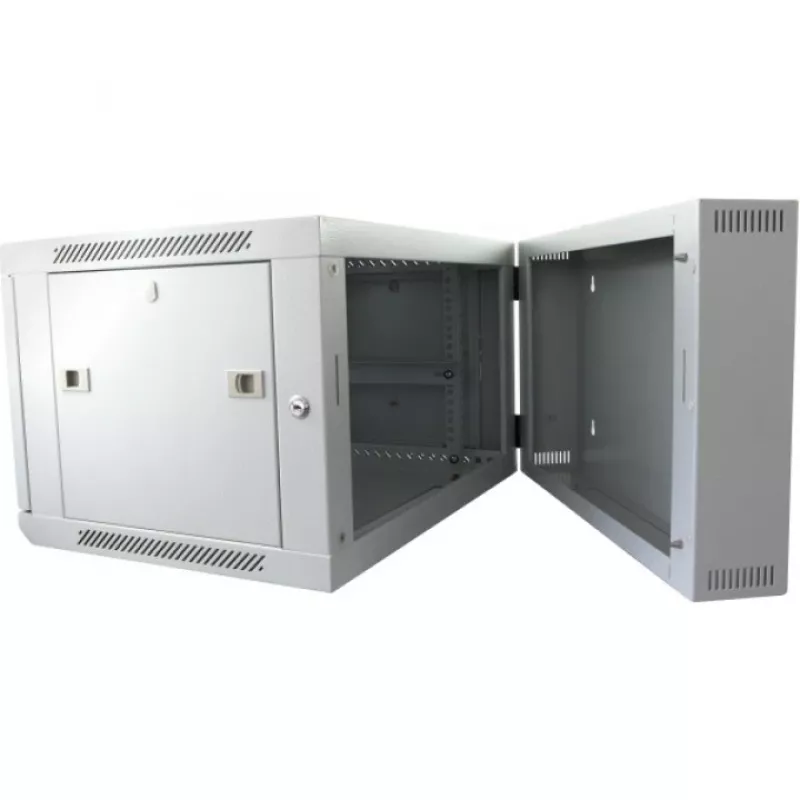

• Rear panel: Removable steel
• Side panels: Removable, lockable
• Static load capacity: 60 kg
• Ventilation: Passive, prepared for 2 fan units
• Cable entry: Top and bottom
• Included: 4 levelling feet, 2 keys
• Protection class: IP20

Why choose it

The SMB6612 strikes a balance between compact footprint and practical capacity. Its 600x600 mm footprint fits through standard doorways and occupies minimal floor space, yet it offers enough depth for many small servers and network devices. The grey steel construction is durable and easy to clean, and the lockable doors and panels deter unauthorised access. Passive ventilation keeps noise low, with the option to add fans if cooling demands increase.

Ideal use cases

• Small office network closets housing switches, routers, and patch panels
• Telecom or communications rooms with limited floor area
• Edge computing sites or branch offices needing a secure enclosure for a small server
• Retail back offices or classrooms requiring tidy, lockable IT storage

Good to know

The cabinet ships with adjustable 19-inch mounting rails, levelling feet for uneven floors, and two keys for the locking doors. Cable entry openings on the top and bottom simplify routing. Assembly is straightforward, and the removable panels speed up equipment installation. For environments with higher heat loads, two optional fan units can be installed in the prepared positions.
