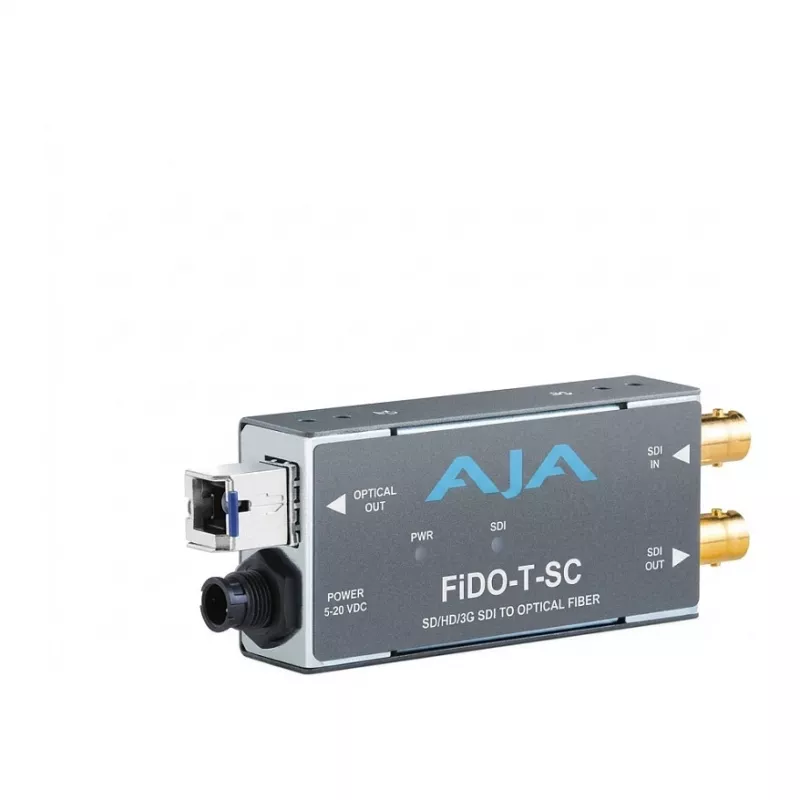

AJA FiDO-T-SC 3G-SDI to Fiber Optic Converter SC Single-Mode

AJA FiDO-T-SC 3G-SDI to Fiber Optic Converter SC Single-Mode
AJA FiDO-T-SC 3G-SDI to Fiber Optic Converter SC Single-Mode
R12,269
The AJA FiDO-T-SC is a compact, standalone 3G-SDI to fiber optic converter that transmits SDI signals over single-mode fiber via an SC connector. Ideal for broadcast, production, and ProAV environments, it supports SDI data rates up to 3 Gb and extends transmission distances up to 10 km (6.2 miles).... Read More
Stock 1 Code 2722954 Brand AJA Model VZ-30597944 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The AJA FiDO-T-SC is a compact, standalone 3G-SDI to fiber optic converter that transmits SDI signals over single-mode fiber via an SC connector. Ideal for broadcast, production, and ProAV environments, it supports SDI data rates up to 3 Gb and extends transmission distances up to 10 km (6.2 miles).

Advantages

Reliable signal conversion with re-clocking on the SDI input ensures pristine video quality over long distances. The compact form factor and low power consumption (3W typical) make it easy to deploy in space-constrained setups. Embedded SDI audio pass-through maintains full audio integrity.

Suitable for

  • Broadcast studios and production trucks
  • Live event video distribution
  • Security and surveillance systems
  • Digital signage and ProAV installations

Key specifications

  • Conversion Type: 3G-SDI to Fiber Optic
  • SDI Input: 1x BNC (3G-SDI, HD-SDI, SD-SDI)
  • Fiber Output: 1x SC Single-Mode
  • Supported SDI Formats: SMPTE 259M, 292M, 424M
  • SDI Data Rates: 270 Mb, 1.5 Gb, 3 Gb
  • Fiber Type: Single-Mode
  • Fiber Connector: SC
  • Max Fiber Cable Length: Up to 10 km (6.2 miles)
  • Re-clocking: Yes, on SDI input
  • Power Supply: +5VDC (via DWP-U-R1 universal power supply)
  • Power Consumption: 3W (typical)
  • Operating Temperature: 0 to 40°C (32 to 104°F)
  • Humidity: 10-90% non-condensing
  • Form Factor: Compact, standalone
  • LED Indicators: Power, SDI Lock, Fiber Lock
  • Audio Support: Embedded SDI audio pass-through
  • Video Standards: Supports 525i, 625i, 720p, 1080i, 1080p (up to 60fps)
  • Compliance: RoHS, WEEE

Recommendations

For optimal performance, use with single-mode fiber cables and the AJA DWP-U-R1 power supply. Ideal for extending SDI signals in broadcast and ProAV workflows.

Specifications
AC adapter included
Yes
Brand
AJA
Category
Media Converters
Compliance certificates
RoHS, WEEE
Connectivity technology
Wired
DC-in jack
Yes
EAN
892448000434
Ethernet LAN (RJ-45) ports
0
Ethernet LAN data rates
270 Mb, 1.5 Gb, 3 Gb
Input current
0.6
Input voltage
5
Internal
No
LED indicators
Power, SDI Lock, Fiber Lock
Model
FiDO-T-SC
MPN
FiDO-T-SC
Networking standards
SMPTE 259M, 292M, 424M
Operating relative humidity (H-H)
10 - 90
Operating temperature (T-T)
0 - 40
Output voltage
5
Power consumption (typical)
3
Quick installation guide
Yes
Web-based management
No
Weight
0.24 kg
Price history over the last 6 months
AJA FiDO-T-SC 3G-SDI to Fiber Optic Converter SC Single-Mode
Current
R12,269
Lowest
R12,117
Highest
R12,734
Change 24H
+R10   +0%
Week
+R124   +1%
Month
+R32   +0%
