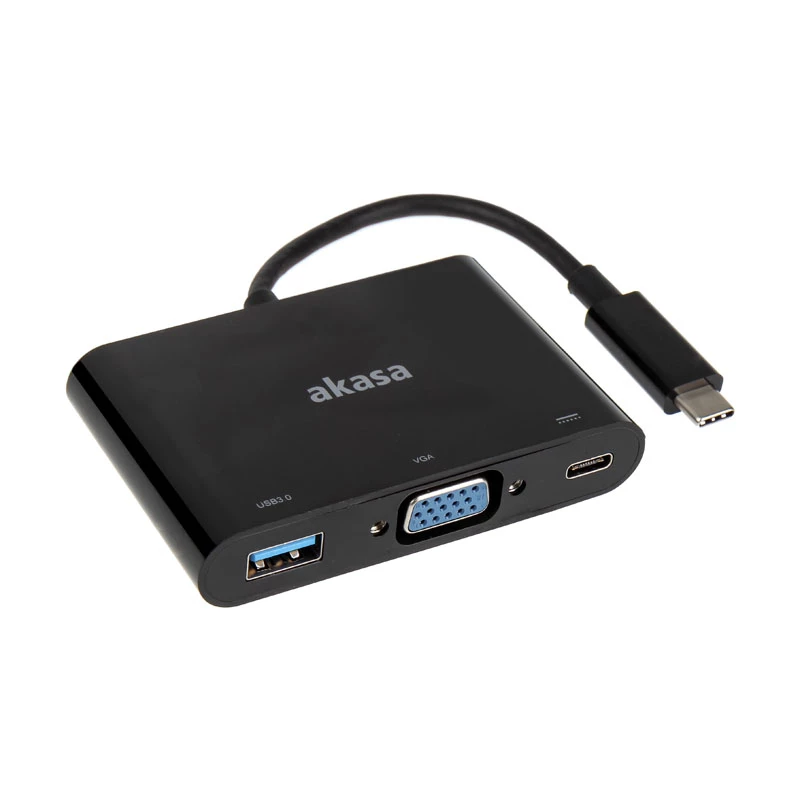

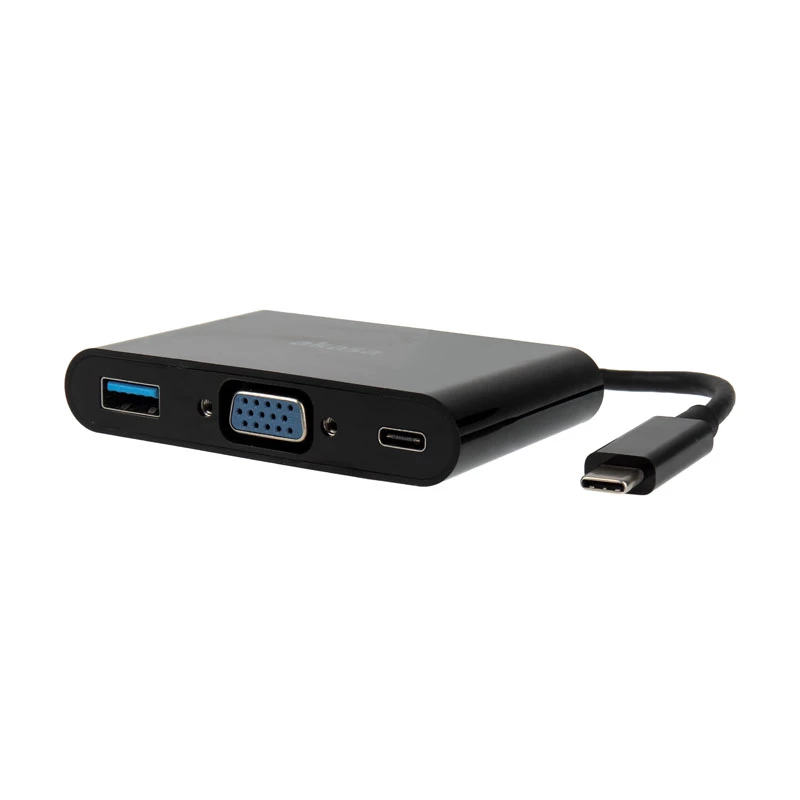

Adapter Type-C to VGA Akasa AK-CBCA02-15BK

The Akasa Adapter Type-C to VGA AK-CBCA02-15BK connects a USB-C device to a VGA monitor and includes an extra USB 3.0 Type-A port. It supports resolutions up to 1920 x 1200 and common video modes such as 720p and 1080p. The adapter accepts input voltages from 5 to 20 V (max current 2 A) for powering the connected Type-C device, is constructed from ABS material and weighs approximately 31.8 g.

Advantages

This compact adapter provides both video output and a high-speed USB 3.0 data connection (up to 5 Gbps, backward compatible with USB 2.0). The reversible Type-C plug simplifies connection, and the adapter supports both extended desktop and video-mirroring display modes for flexible use with monitors and projectors.

Suitable for

• Connecting laptops or mobile devices with USB-C to VGA monitors or projectors
• Extending desktop workspace across multiple displays
• Mirroring a device screen for presentations or playback
• Adding a USB-A port for peripherals or data transfer

Key specifications

• Model: Akasa AK-CBCA02-15BK
• Ports: USB-C (video & power in), VGA output, USB 3.0 Type-A
• Video support: up to 1920 x 1200; supports 720p and 1080p
• USB data rate: up to 5 Gbps (USB 3.0), backward compatible with USB 2.0
• Power delivery: input voltage range 5–20 V, max current 2 A (Type-C upward supply to host)
• Material and colour: ABS, black
• Weight: 0.0318 kg

How to use

Plug the reversible Type-C connector into the USB-C port of your laptop or mobile device. Connect a VGA cable from the adapter to your monitor or projector. Optionally connect a USB device to the Type-A port for data transfer. Select extended desktop or mirror display mode in your system display settings as required; supported modes include video-mirroring and extended desktop.

Recommendations

Use a quality VGA cable for reliable video signal and ensure the host device supports video output over USB-C. For stable power delivery, keep the connected device voltage within 5–20 V and current below 2 A.
