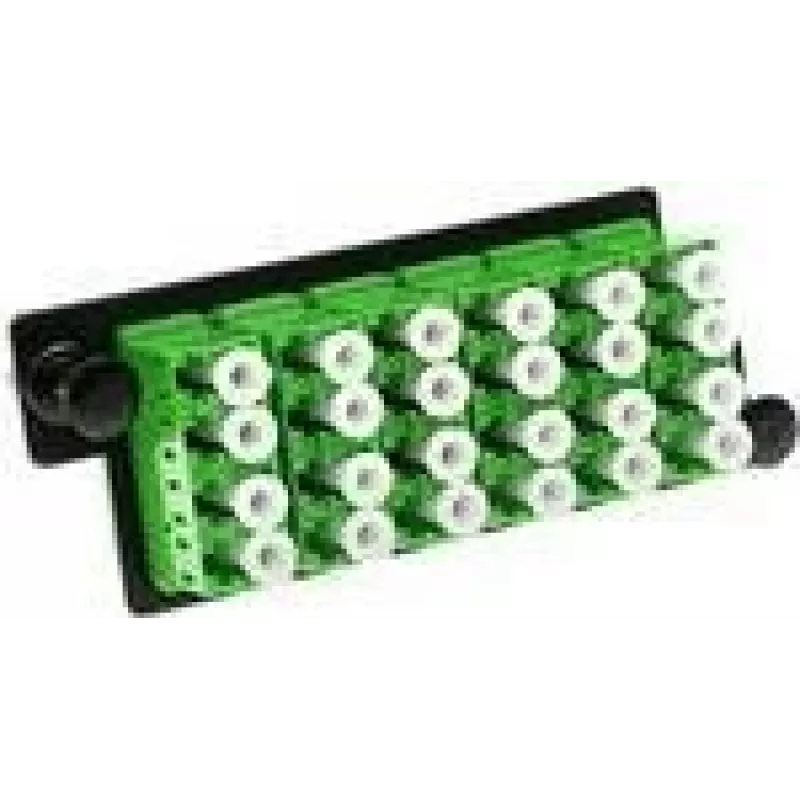

Adapter plate ACT FA2151 — 6x LC quad, 24-fiber OS2 APC8

The ACT FA2151 adapter plate accommodates six LC quad adapter positions, enabling up to 24 fiber connections with OS2 single-mode APC8 polishing. Intended for installation in fiber enclosures or patch panels, this compact plate supports organized, high-density fiber termination and straightforward connection management in professional network environments. The design focuses on compatibility with LC quad adapters and single-mode OS2 APC8 fiber, providing a compact interface for structured cabling systems.

Advantages

The adapter plate offers a high port density in a compact footprint, allowing efficient use of rack or enclosure space. Built for single-mode OS2 APC8 connections, it ensures low back-reflection and consistent optical performance when used with matching connectors and fiber. The plate provides clear physical segregation of adapter positions for orderly fiber routing and simplifies fiber maintenance and moves, adds, or changes in telecom, data center, and enterprise installations.

Suitable for

Key specifications

How to use

Install the adapter plate into a compatible fiber enclosure or patch panel following the enclosure manufacturer's mounting method. Fit LC quad adapters into each adapter position and route single-mode OS2 APC8-terminated fiber cables to the rear of the plate, taking care to maintain minimum bend radius and proper strain relief. Connect mating LC quad plugs to the front of the adapters for patching; label ports as required to reflect the network topology and to simplify future maintenance.

Recommendations

For optimal optical performance, use matching single-mode OS2 APC8 connectors and maintain correct polishing alignment. Avoid tight bends and mechanical stress on fibers, and perform insertion loss and return loss testing after installation to verify connections meet required thresholds.
