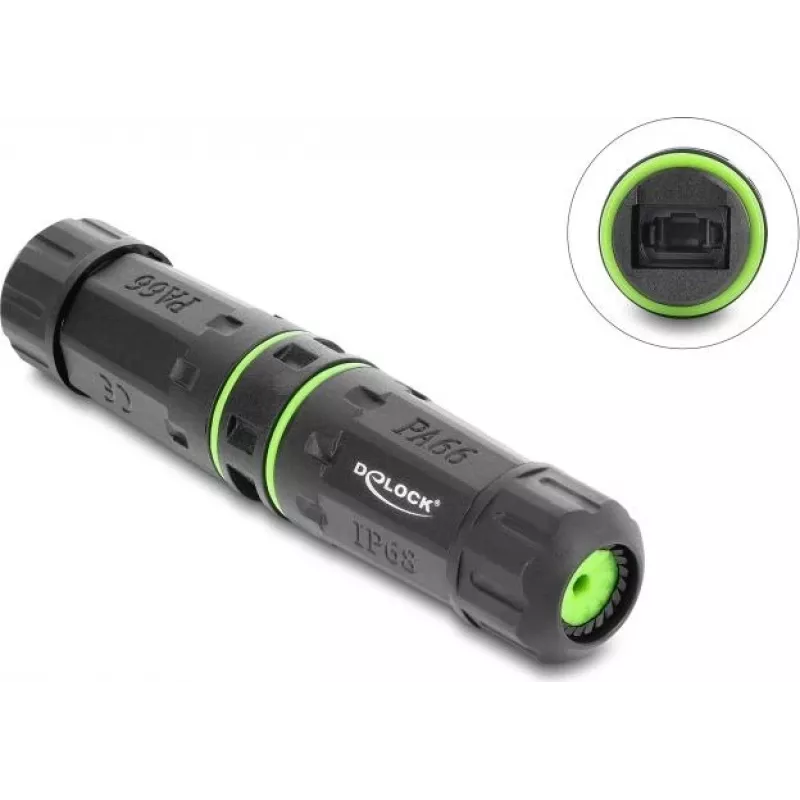

Delock Fiber Optic Connector MPO Female to MPO Female with M20 x 1.5 mm Thread IP68 Dust and Waterproof

The Delock Fiber Optic Connector MPO Female to MPO Female with M20 x 1.5 mm Thread IP68 is a high-quality adapter designed for reliable fiber optic connections in demanding environments. This connector coupler allows you to connect two MPO patch cables or devices with MPO female interfaces, ensuring low insertion loss and high return loss. The robust metal housing with M20 x 1.5 mm thread provides a secure and dustproof connection, while the IP68 rating guarantees protection against dust and water immersion. Ideal for outdoor, industrial, and data center applications where durability and performance are critical.

Advantages

This MPO coupler offers several key benefits: it enables quick and easy connection of MPO connectors without the need for additional tools; the IP68 protection ensures reliable operation even in harsh environments; the compact design saves space in patch panels and enclosures; and the high-quality construction ensures long-term stability and low signal loss.

Suitable for

• Outdoor fiber optic installations
• Industrial networking environments
• Data center patching and distribution
• Telecommunications infrastructure
• Any application requiring dust and waterproof connections

Key specifications

• Connector type: MPO female to MPO female
• Thread: M20 x 1.5 mm
• Protection class: IP68 (dust and waterproof)
• Housing material: Metal
• Number of connectors: 2 (both female)
• Fiber mode: Multimode (compatible with single-mode)
• Insertion loss: ≤ 0.5 dB (typical)
• Return loss: ≥ 20 dB (typical)
• Operating temperature: -40 °C to +85 °C

Recommendations

For optimal performance, use with Delock MPO patch cables and ensure proper cleaning of connectors before mating. This adapter is designed for indoor and outdoor use where IP68 protection is required.
