DeLOCK Fiber Optic Adapter Panel LC Duplex UPC 12 Port blue

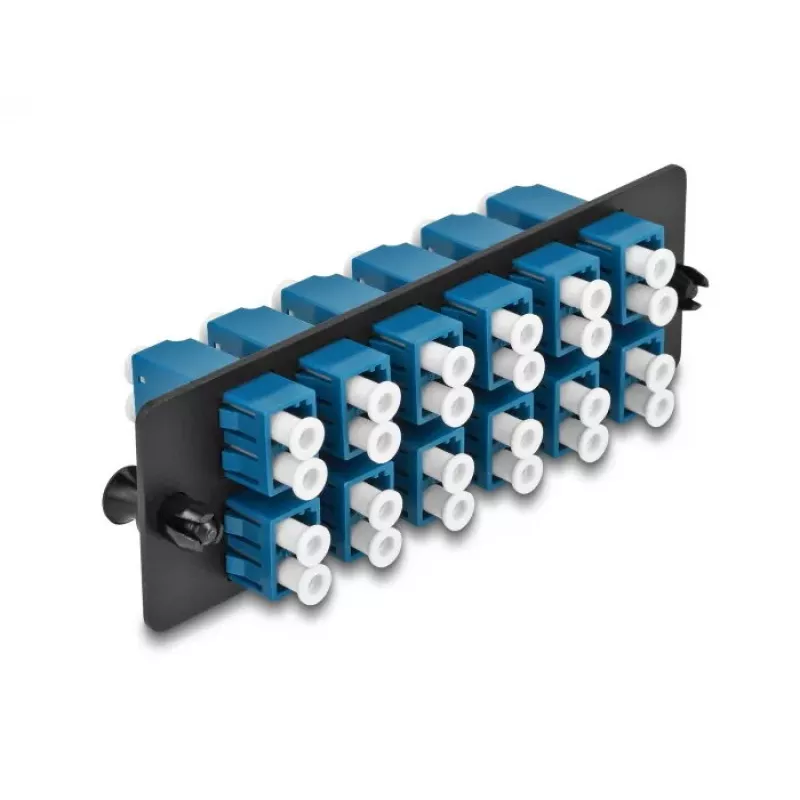

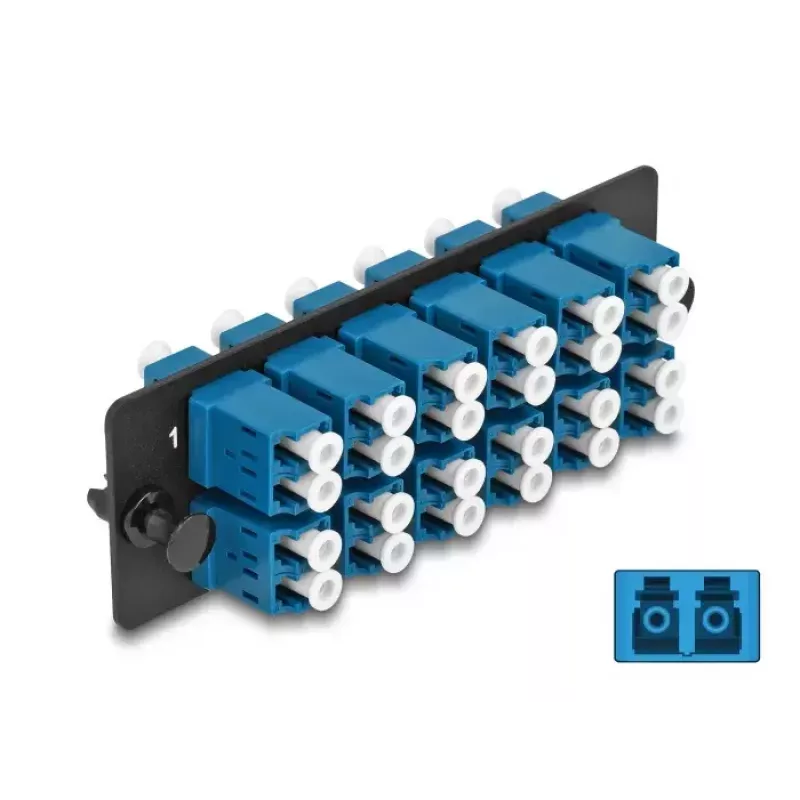

This DeLOCK Fiber Optic Adapter Panel LC Duplex UPC 12 Port blue provides twelve LC Duplex UPC couplers for connecting single‑mode fiber optic connectors. It is designed for installation in a 19" fiber optic HD (High Density) patch panel by Delock (model 66924) and has a compact form factor (35 mm width, 109 mm depth, 20 mm height). The panel is supplied in a zipper bag for handling and storage.

Advantages

The panel offers a high‑density arrangement with twelve LC Duplex UPC ports, allowing reliable mating of fiber optic male connectors. Its standardized LC Duplex interfaces ensure compatibility with common single‑mode fiber cabling, and the compact dimensions make it suitable for space‑constrained installations. The unit is delivered in protective packaging to simplify transport and installation.

Suitable for

• Single‑mode fiber patching and cross‑connects

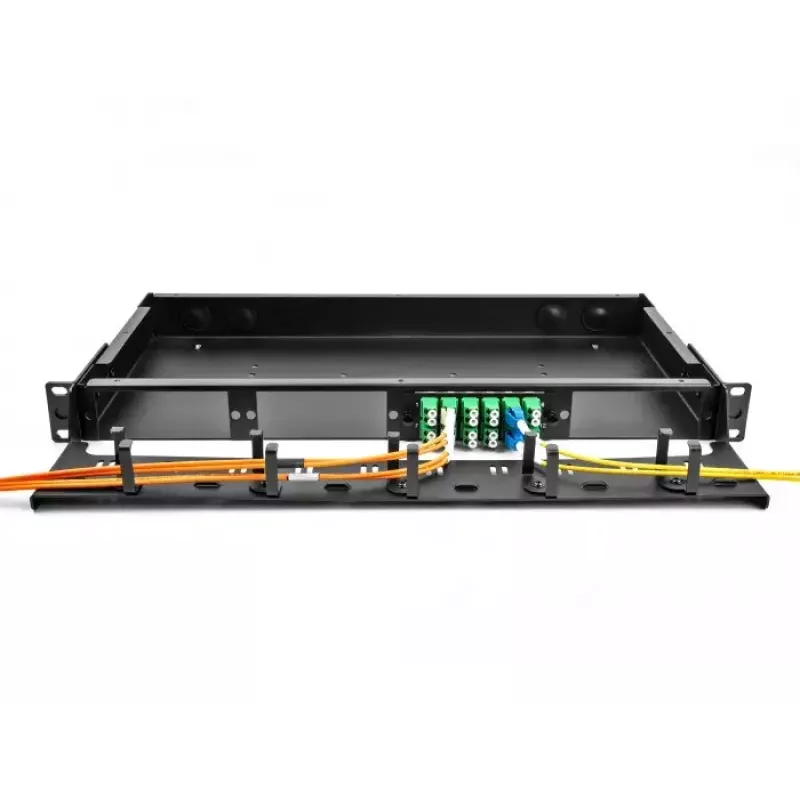

• Integration into Delock 19" HD patch panels (model 66924)
• Server rooms, telecom racks, and network closets requiring compact fiber density

Key specifications

• Connector type: LC Duplex UPC (12 ports)
• Fiber mode: Single‑mode
• Dimensions: 35 mm (W) × 109 mm (D) × 20 mm (H)
• Color: Blue
• Packaging: Zipper bag
• Brand: DELOCK, MPN: 66930, EAN: 4043619669301

How to use

Install the adapter panel into the compatible 19" Delock HD patch panel (66924) following the rack panel manufacturer's mounting instructions. Route single‑mode LC Duplex patch cords to the panel and gently insert the male LC connectors into the corresponding duplex couplers until they click into place. Verify optical continuity and loss with appropriate test equipment after connections are made.

Recommendations

Use LC Duplex UPC single‑mode patch cords of matching polarity and fiber type, avoid excessive bending at the cable entry points, and perform insertion loss and continuity tests after installation to ensure proper signal transmission.
