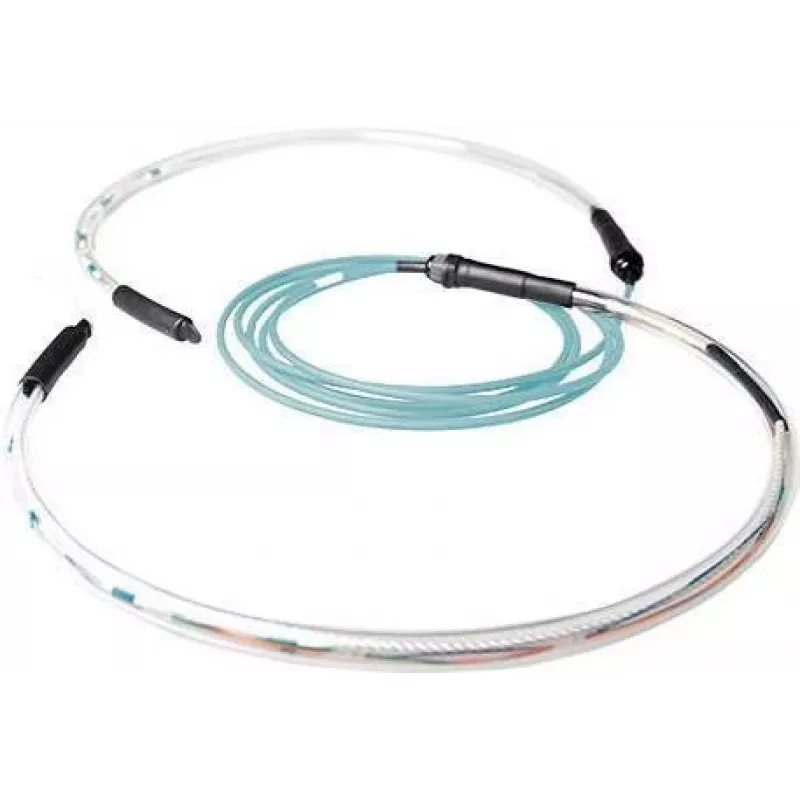

ACT RL2401 10m 4x LC to 4x LC LSZH OM3 Aqua Fibre Optic Patch Cable

For high-density fibre installations where every port counts, the ACT RL2401 delivers a 10-metre link with four independent LC duplex channels in a single slim jacket. Unlike standard duplex patch leads, this 4x LC to 4x LC assembly consolidates four OM3 multimode fibres into one aqua LSZH cable, reducing cable clutter in data centres and SAN environments while maintaining full 10/40/100 Gigabit Ethernet compatibility.

Highlights

• Four parallel LC connections on each end for high-port-count switches and patch panels
• OM3 multimode fibre with 50/125 µm core supports 10GbE up to 300 m and 40/100GbE up to 100 m
• Low Smoke Zero Halogen (LSZH) jacket in aqua for easy identification and enhanced fire safety
• Typical insertion loss below 0.3 dB per connector ensures reliable signal integrity
• RoHS and CE compliant for use in professional networking infrastructure

In daily use

This cable is built for structured cabling where density and performance are non-negotiable. The four LC connectors on each end are colour-coded and keyed for correct polarity, making installation straightforward even in crowded racks. The LSZH jacket emits minimal smoke and no halogen gases in the event of fire, making it suitable for enclosed spaces and public buildings. The aqua colour immediately identifies the cable as OM3 multimode, simplifying maintenance and troubleshooting.

Full specifications

• Brand: ACT
• Model: RL2401
• MPN: RL2401
• EAN: 8716065351552
• Cable length: 10 m
• Fibre type: Multimode OM3
• Core/cladding diameter: 50/125 µm
• Connector A: 4x LC
• Connector B: 4x LC
• Number of fibres: 4
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable colour: Aqua
• Insertion loss (typical): < 0.3 dB per connector
• Return loss (typical): > 30 dB
• Bandwidth (850 nm): 1500 MHz·km OFL, 2000 MHz·km EMB
• Supported protocols: 10GbE, 40GbE, 100GbE
• Maximum distance (10GbE): 300 m
• Maximum distance (40/100GbE): 100 m (SR4/SR10)
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, CE
• Application: Data centre, SAN, LAN, FTTx

Final note

When you need four reliable OM3 links in one tidy cable, the ACT RL2401 keeps your infrastructure organised and ready for high-speed networking.
