2N IP Force Secure Door Set with Additional Switch and Tamper Alarm Module (9151198SET)

The 2N IP Force Secure Door Set (9151198SET) is a robust, vandal-resistant IP intercom system designed for secure access control in demanding environments. This set includes the main unit, an additional switch for external relay control, and a tamper alarm module (TAM), providing enhanced security and flexibility for door entry applications.

Advantages

This complete set offers a comprehensive solution for secure door communication and access management. The integrated tamper alarm module ensures immediate detection of any unauthorized attempts to open or manipulate the unit, while the additional switch allows control of external devices such as electric locks or gates. With IK10 vandal resistance and IP69K ingress protection, the unit withstands extreme weather and physical attacks, making it ideal for outdoor installations.

Suitable for

• Secure entry points in commercial buildings, offices, and industrial facilities
• Outdoor door stations requiring high durability and weather resistance
• Integration with SIP-based intercom systems and access control platforms

Key specifications

• Product Type: IP Intercom System / Door Entry Unit
• Series: 2N IP Force
• Configuration: Secure Door Set (without camera, without keypad)
• Connectivity: Ethernet (RJ-45)
• Power Supply: PoE (IEEE 802.3af) or 12V DC / 2A
• Vandal Resistance Rating: IK10 (EN 62262)
• Ingress Protection (IP Rating): IP69K (EN 60529)
• Audio Features: Full-duplex audio with echo cancellation
• Microphone: Integrated, omnidirectional
• Speaker: Integrated, 2W
• Buttons: 1x Quick Dial Button (backlit)
• Relay Outputs: 2x Internal active/passive outputs, 1x External relay output (via additional switch)

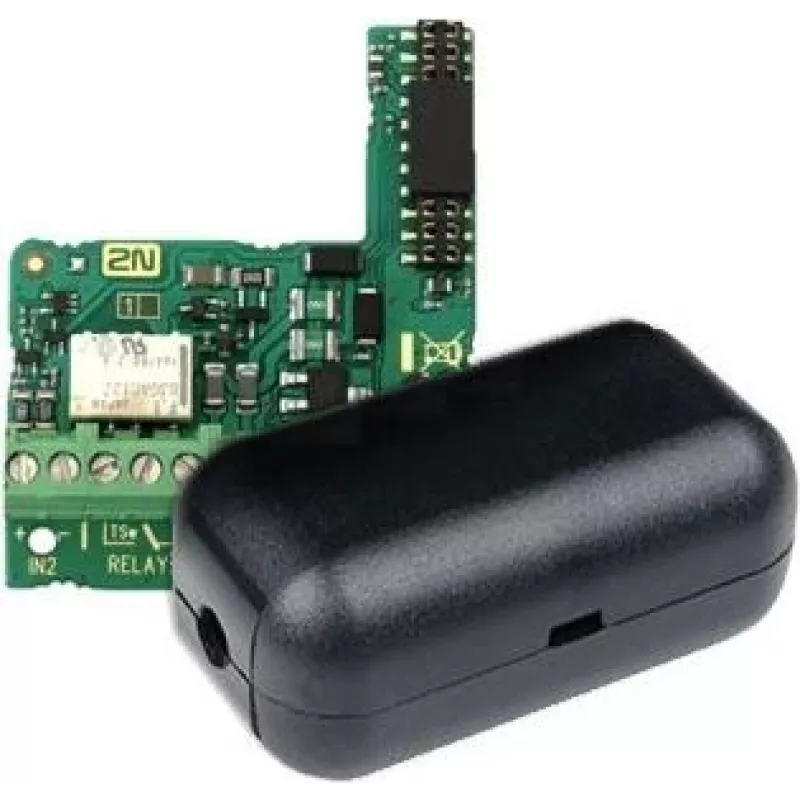

• Included Components: 2N IP Force Main Unit, Additional Switch (External Relay Module), Tamper Alarm Module (TAM)
• Communication Protocol: SIP 2.0 (RFC 3261)
• Operating Temperature: -40°C to +55°C
• Installation Type: Surface Mount (Flush mount possible with optional accessories)
• Construction Material: High-strength steel chassis, robust construction
• Management Interface: Web interface, 2N Access Commander
• Security Features: Tamper detection, secure boot, encrypted communication

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. The unit can also be powered via 12V DC (2A) if PoE is not available. Ensure proper grounding and surge protection for outdoor installations. Compatible with 2N Access Commander for centralized management.
