2-Port Cat.5e RJ45 Splitter Equip 127608

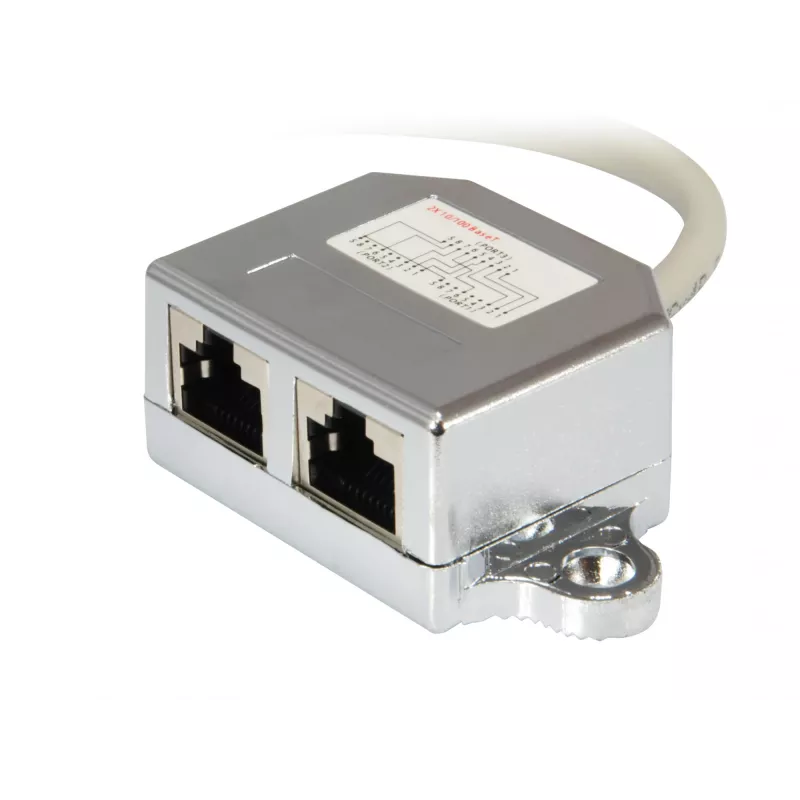

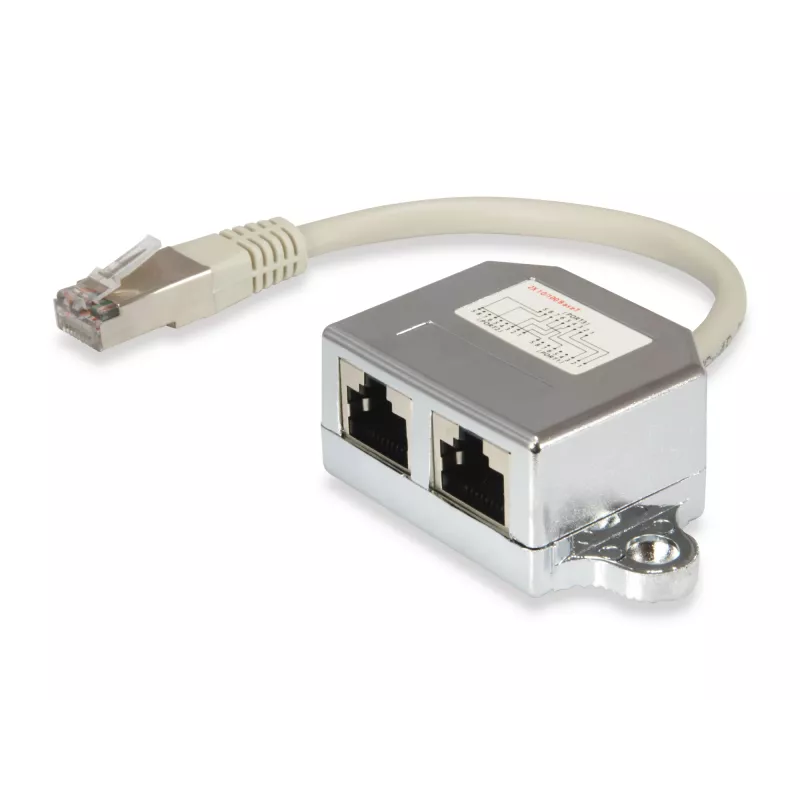

The equip® 2-Port Cat.5e RJ45 Splitter (model 127608) is a passive adapter that enables two RJ45 devices to share a single network port. Housed in a durable silver ABS casing, the compact splitter features one male RJ45 connector and two female RJ45 ports. It is RoHS- and CE-compliant and designed for simple, economical extension of existing Cat5e cabling in home or office environments.

Advantages

The splitter provides a cost-effective way to connect two devices to one Ethernet port without requiring additional active network hardware. Its compact ABS enclosure and lightweight construction (0.039 kg) make it easy to install and position in tight spaces. Compliance with RoHS and CE standards ensures basic regulatory conformity.

Suitable for

• Connecting two Cat5e Ethernet devices to a single RJ45 wall or switch port
• Temporary or low-bandwidth sharing of an existing network socket
• Home offices and small office setups with limited network ports

Key specifications

• Brand: EQUIP
• Model / MPN: 127608
• Product type: 2-Port Cat.5e RJ45 Splitter (passive)
• Housing material: ABS, colour: silver
• Dimensions (W x D x H): 188.5 mm x 56 mm x 24 mm
• Weight: 0.039 kg
• Standards: RoHS, CE
• EAN: 4015867206829

How to use

Insert the male RJ45 connector of the splitter into the available network port on a wall socket, patch panel or switch. Connect two Cat5e-compatible devices to the splitter’s female RJ45 ports. Because the unit is passive, it does not provide independent full Ethernet channels for both devices simultaneously at full duplex; verify device and network requirements before use. Use standard Cat5e cables for best compatibility.

Recommendations

Use this passive splitter for simple, low-bandwidth sharing or temporary setups. It is not a network switch and should not be used where simultaneous full-duplex connections or gigabit speeds are required; for those applications, use an active switch or hub.
