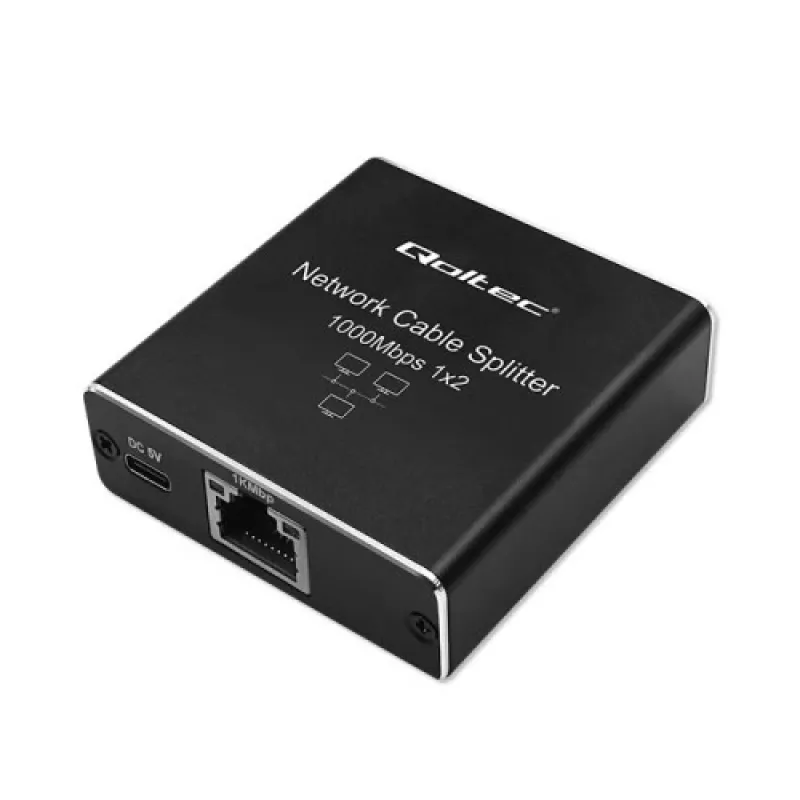

Qoltec 52249 Mini Switch 1x2 Port RJ45 1000 Mbps Splitter

Running out of Ethernet ports can disrupt your network, but the Qoltec 52249 Mini Switch solves this by splitting one RJ45 connection into two Gigabit outputs. This unmanaged switch delivers stable 1000 Mbps transmission over distances up to 100 metres, making it ideal for expanding your home or small office network without complex setup.

Who is it for

Perfect for users needing to connect multiple devices—such as computers, smart TVs, or gaming consoles—to a single router port. Its plug-and-play design suits both tech-savvy individuals and beginners looking for a hassle-free network expansion.

Main features

• 1 input and 2 output RJ45 ports for splitting a network signal.
• Gigabit Ethernet speeds (10/100/1000 Mbps) for fast data transfer.
• Plug-and-play installation—no configuration required.
• Compact desktop design with durable plastic housing.
• LED indicators for power and link/activity per port.
• Supports CAT5, CAT5e, and CAT6 cables for flexible connectivity.

Specifications

• Ports: 1× RJ45 input, 2× RJ45 output
• Data transfer rate: 10/100/1000 Mbps (Gigabit Ethernet)
• Switching capacity: 4 Gbps
• MAC address table: 1K entries
• Jumbo frame support: up to 9K bytes
• Auto MDI/MDIX: Yes
• Flow control: IEEE 802.3x (full-duplex), back pressure (half-duplex)
• Forwarding method: Store-and-forward
• Power supply: External DC 5V/0.6A adapter
• Power consumption: < 2W
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 10% to 90% non-condensing
• Compliance: CE, FCC, RoHS

Tips

For best performance, use high-quality CAT5e or CAT6 cables and place the switch in a well-ventilated area. Connect the input port to your router or modem, then connect your devices to the output ports—the LEDs will confirm active connections.
