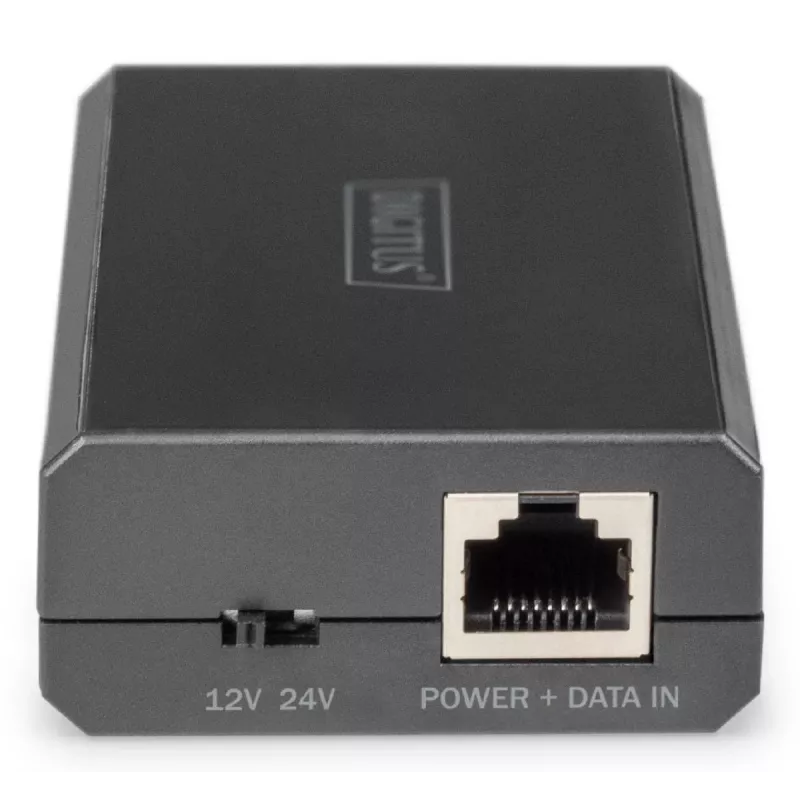

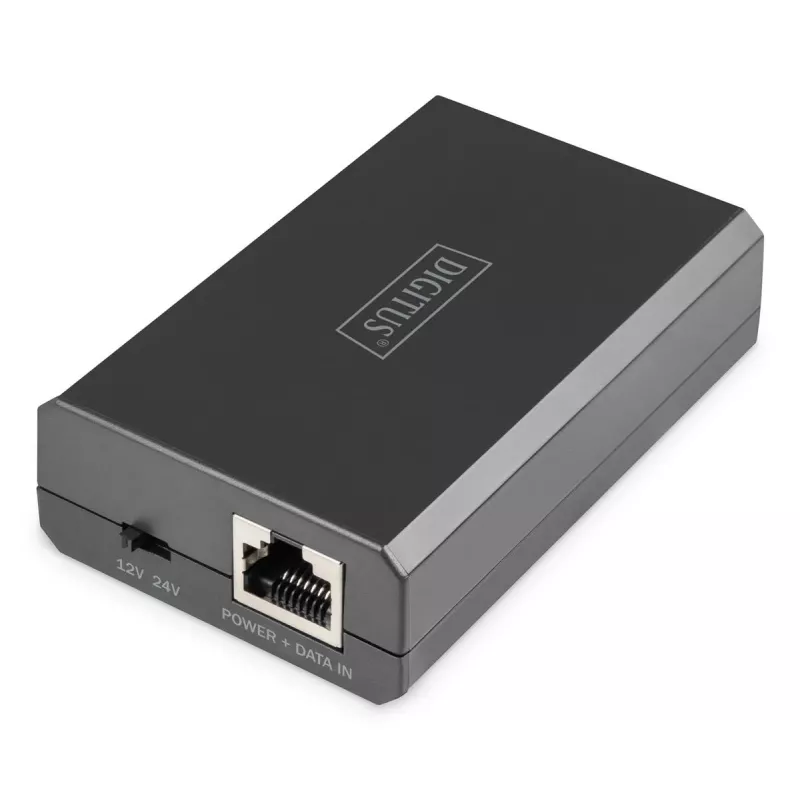

DIGITUS Gigabit Ethernet PoE Splitter 802.3af/at/bt Output: 12V/4.25A 24V/2.125A 51W

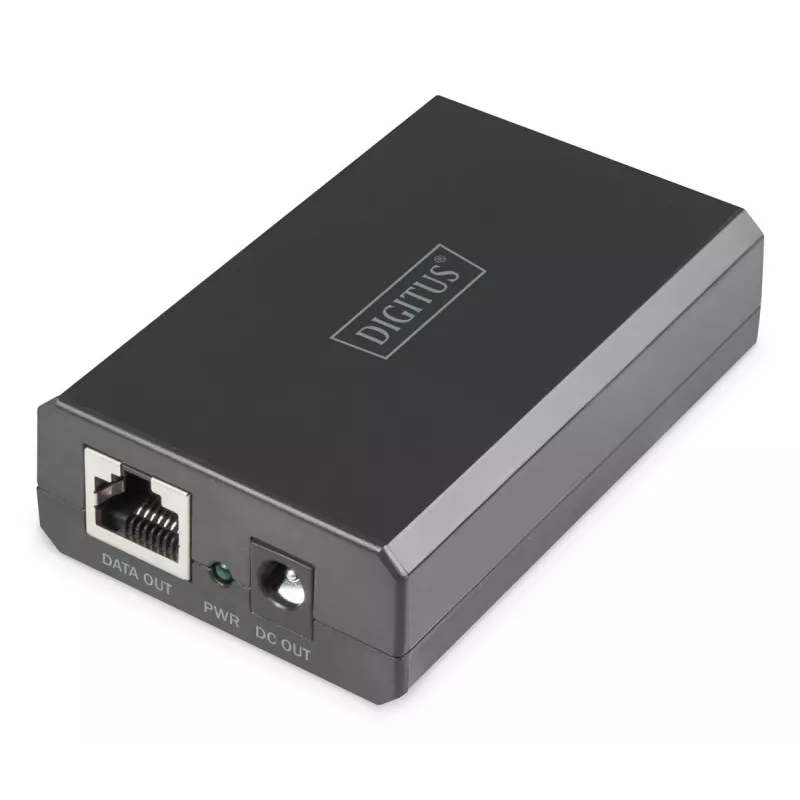

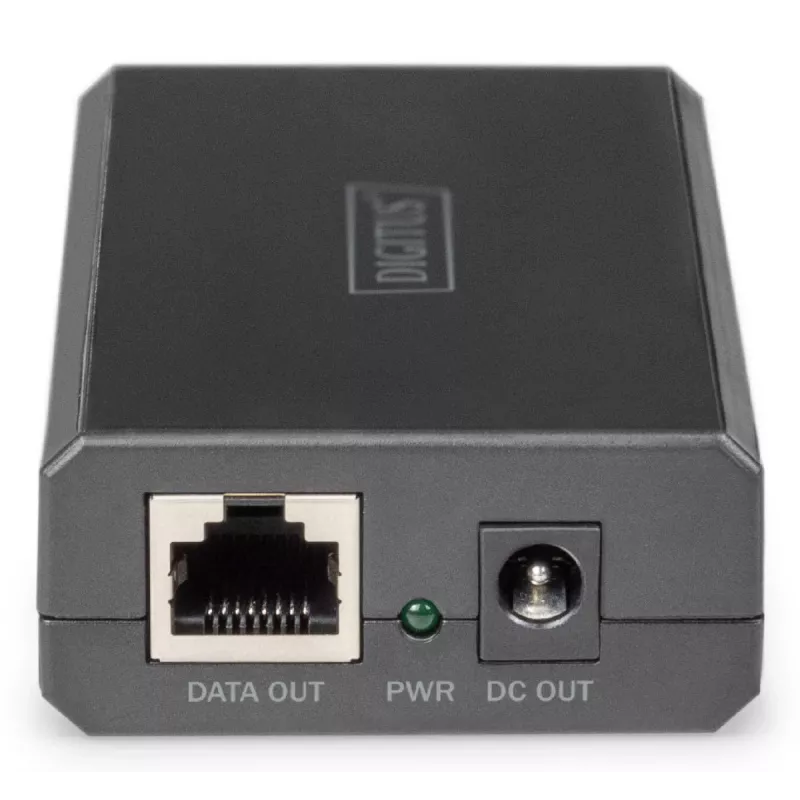

The Digitus Gigabit Ethernet PoE splitter 802.3bt 51 W delivers data and up to 51 W of power over a single Ethernet cable to devices that do not support Power over Ethernet. It supports Gigabit Ethernet (10/100/1000 Mbps) and accepts PoE input according to IEEE 802.3at/bt standards, converting the injected 36–57 VDC into selectable DC output voltages. The compact black unit features an RJ45 data+power input and separate RJ45 data output plus a DC power output, with an LED indicating PoE status.

Advantages

The splitter provides simultaneous data and power delivery via one cable, enabling installation of non‑PoE devices without a local power outlet. It supports Gigabit speeds and IEEE 802.3at/bt for compatibility with modern PoE switches and injectors. Output voltage is selectable (12 V or 24 V) to match various devices, and built‑in insulation and status LED improve safety and usability. Plug‑and‑play design requires no configuration.

Suitable for

• Access points that lack local power
• IP phones requiring external DC power
• Network cameras placed away from power outlets
• Other non‑PoE network devices needing 12 V or 24 V DC

Key specifications

• Brand: DIGITUS
• Model: DN-95211
• Maximum output power: up to 51 W
• PoE standard: IEEE 802.3at / 802.3bt
• Ethernet speed: 10 / 100 / 1000 Mbps (Gigabit)
• Input voltage range: 36–57 VDC
• Selectable DC outputs: 12 V / 4.25 A or 24 V / 2.125 A
• Ports: RJ45 power+data input, RJ45 data output, DC output
• Product colour: Black
• Weight: 0.08 kg
• EAN: 4016032495406

How to use

Connect the RJ45 input of the PoE splitter to a PoE switch or PoE injector capable of supplying IEEE 802.3at/bt power. Set the dip switch to the required output voltage (12 V or 24 V). Connect the RJ45 data output to the device's network port and the DC output to the device's power input if required. Power and data will be provided from the PoE source; no separate power supply is necessary. Observe the status LED to verify PoE readiness and operation.

Recommendations

Use with PoE sources that comply with IEEE 802.3at or 802.3bt and ensure the selected output voltage matches the target device's power requirements. Avoid exposing the splitter to moisture and install it in a well‑ventilated location. For maximum reliability, verify cable quality for Gigabit transmission and do not exceed the specified output current and power limits.
