Intellinet PoE Splitter with USB-C Output, PoE++ / 4PPoE, Gigabit Ultra, IEEE 802.3bt, RJ45 In and Out Ports, Up to 45 W USB-C Output Port

The Intellinet PoE Splitter USB-C Output 561693 separates power and data from a single PoE cable to provide up to 45 W USB-C Power Delivery and Gigabit Ethernet to non-PoE devices. Designed for use with IEEE 802.3bt (PoE++) injectors or switches and backward compatible with IEEE 802.3at and IEEE 802.3af, the compact splitter offers RJ45 network connectivity and a USB-C PD output to charge notebooks, MacBook Pro®, Ultrabooks™ or tablets while maintaining Gigabit data speeds. The unit features a durable plastic housing and certifications including FCC Class B, CE, RoHS, UKCA and NDAA.

Advantages

The PoE Splitter provides simultaneous delivery of power and Gigabit data over a single Ethernet cable, converting PoE++ (4PPoE) to a 45 W USB-C Power Delivery output. It supports full backward compatibility with IEEE 802.3at and IEEE 802.3af standards and includes built-in protection against overload, overcurrent and overheating. Its compact black plastic enclosure and standard RJ45 connector make it easy to integrate into existing PoE networks.

Suitable for

• Charging USB-C notebooks and Ultrabooks up to 45 W
• Powering tablets and other USB-C powered devices
• Providing Gigabit Ethernet to RJ45 devices that do not support PoE
• Environments with IEEE 802.3bt (PoE++) infrastructure

Key specifications

• Model: Intellinet PoE Splitter USB-C Output 561693
• Power output: up to 45 W via USB-C Power Delivery (PD)
• PoE standards: IEEE 802.3bt (PoE++ / 4PPoE), backward compatible with IEEE 802.3at and IEEE 802.3af
• Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Data: Gigabit Ethernet (RJ45)
• Dimensions: 80 mm x 54 mm x 24 mm
• Weight: 0.17 kg
• Colour: Black
• Certifications: FCC Class B, CE, RoHS, UKCA, NDAA

How to use

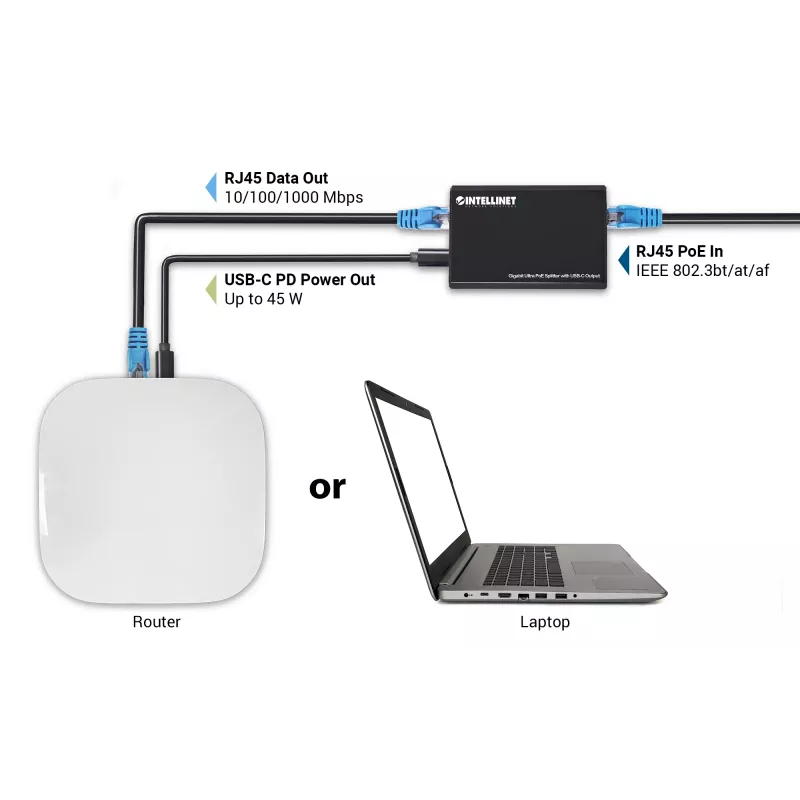

Connect the PoE Splitter's RJ45 input to an IEEE 802.3bt-compliant PoE injector or PoE switch using a single Ethernet cable. Plug the splitter's RJ45 output into the network device that requires Gigabit data and use the USB-C port to connect and charge the USB-C powered device. Ensure the supplying PoE source can provide PoE++ (4PPoE) if the connected device needs the full 45 W output; the splitter will still operate with IEEE 802.3at/af sources at reduced power.

Recommendations

Install the splitter in a well-ventilated location away from direct heat sources. Verify PoE injector or switch compatibility and cable quality to ensure stable power delivery and Gigabit performance.
