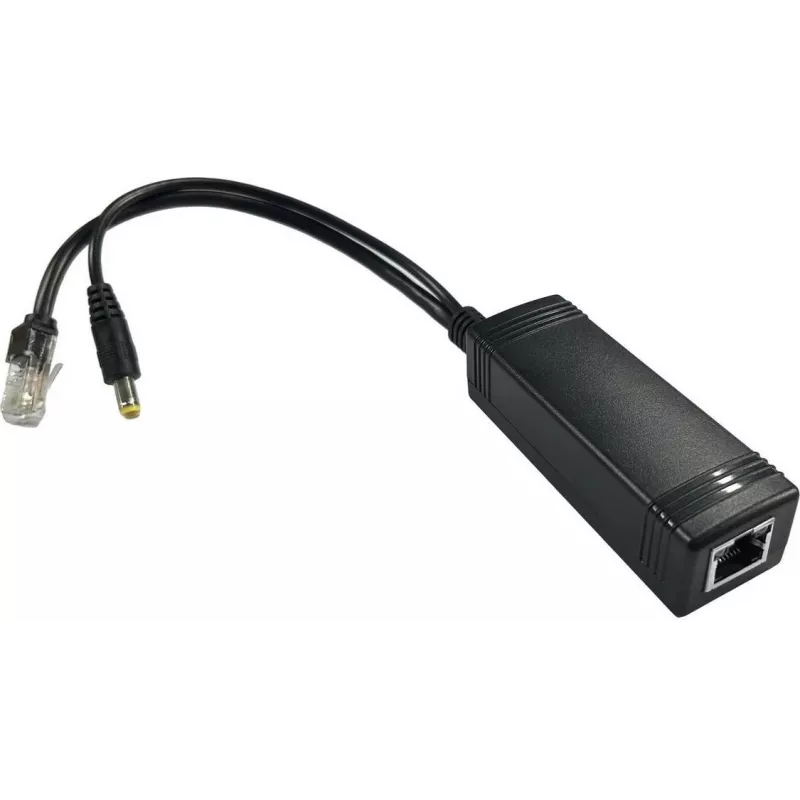

VivoLink PoE Splitter 5V 2A (VLPOESPLIT5V)

Deliver clean 5V DC power to non-PoE devices with the VivoLink PoE Splitter 5V 2A (VLPOESPLIT5V). This compact splitter taps into an IEEE 802.3af PoE network connection and separates the data and power, providing a regulated 5V/2A output through a standard DC jack. Ideal for IP cameras, wireless access points, and other low-voltage equipment where a local power outlet is unavailable.

Overview

The VLPOESPLIT5V converts Power over Ethernet into usable DC power and Ethernet data. It accepts PoE input (44-57V DC) on its RJ45 port and outputs both a 10/100 Mbps data connection and a 5V DC power feed. The DC output uses a 2.1mm x 5.5mm center-positive jack, compatible with many small network devices.

What stands out

• IEEE 802.3af compliant – works with standard PoE switches and injectors
• Clean 5V/2A (10W) output with over-voltage and short-circuit protection
• Plug-and-play – no configuration needed
• Compact ABS housing with LED power indicator
• 1.5kV isolation for safe operation

Technical details

• Input: PoE (IEEE 802.3af), 44-57V DC
• Output: 5V DC, 2A, 10W max
• Data rate: 10/100 Mbps
• Ports: 1x RJ45 PoE input, 1x RJ45 data output
• DC connector: 2.1mm x 5.5mm jack, center positive
• DC cable length: approx. 15 cm
• Operating temperature: -10°C to 50°C
• Storage temperature: -20°C to 70°C
• Humidity: 10% to 90% non-condensing
• Protection: over-voltage, short-circuit
• Isolation: 1.5kV
• Housing: ABS plastic
• Certifications: CE, FCC

Our verdict

An efficient and reliable way to power 5V devices over existing network cabling. The VivoLink PoE Splitter 5V 2A eliminates the need for separate power supplies, simplifying installation and reducing clutter. A solid choice for integrators and DIY network builders.
