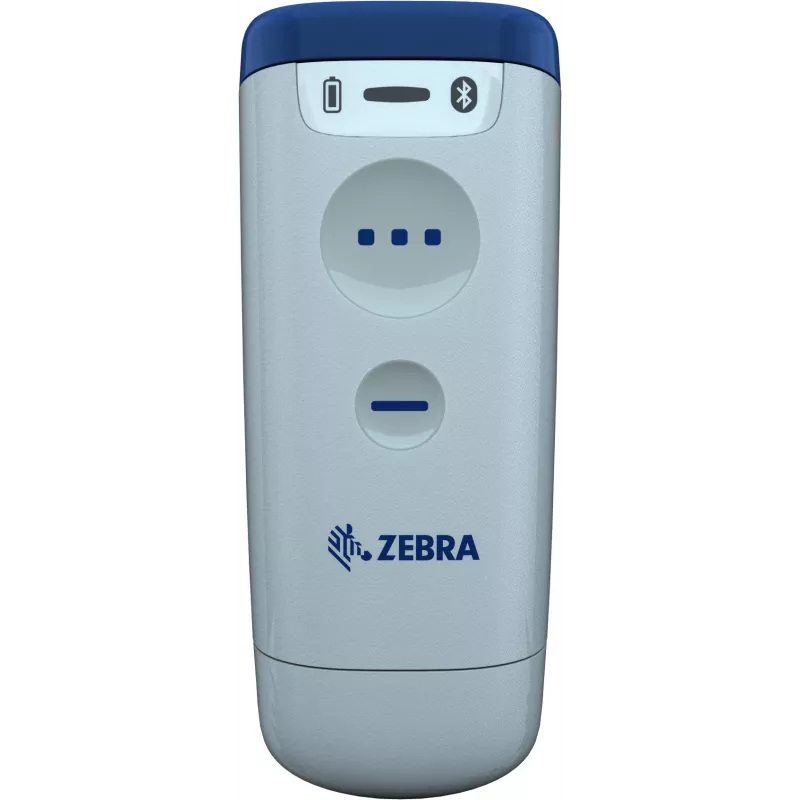

Zebra CS60-HC Handheld bar code reader 1D/2D LED White

The Zebra CS60-HC Handheld bar code reader is a convertible 1D/2D scanner engineered for healthcare settings. It supports corded and cordless operation, handheld and hands-free use, and is built with an IP65 sealed, disinfectant-ready housing with a crevice-free surface to reduce places where germs can hide. Lightweight and compact, the CS60-HC adapts to nurse-carry workflows as a cordless companion and to counters or lab stations when used corded.

Advantages

The scanner offers a convertible design that switches easily between corded and cordless modes and between handheld and hands-free configurations for flexible deployment and extended investment protection. Clinical mobility features include Qi inductive charging, Bluetooth 5.0 with a Wi‑Fi friendly mode, NFC tap-to-pair, an 18-hour battery life and Virtual Tether anti-loss functionality. The product includes a safe LED aimer and a disinfectant-ready IP65 housing designed to withstand healthcare cleaning protocols.

Suitable for

• Point-of-care nursing and nurse-carry workflows
• Pharmacy counters and medication dispensing
• Laboratory sample tracking and specimen labeling
• Maternity, NICU and mother–baby units

Key specifications

• Scanner type: 1D/2D
• Sensor type: LED
• Connectivity: Bluetooth 5.0, NFC, USB (corded option)
• Wireless range: up to 100 m (typical, environment dependent)
• Battery: built-in Lithium Polymer, up to 18 hours runtime
• Ingress protection: IP65 (sealed, disinfectant-ready)
• Weight: 0.087 kg
• Supported barcodes: common 1D (UPC, Code 128, Code 39, etc.) and 2D (QR, Data Matrix, PDF417, Aztec, etc.)
• Color: White
• Manufacturer part number: CS6080-HC4F00BVZWW

How to use

Use the CS60-HC in corded mode by connecting the USB interface to a workstation or register, or convert it to cordless mode and pair via Bluetooth or NFC for mobile scanning. Place the scanner in a compatible hands-free presentation cradle when fixed-position scanning is needed. For cordless use, charge the device using the Qi-compatible charging system or the provided charging cradle and follow on-screen or device indicators to monitor battery status. Aim the LED sensor at the barcode and press the trigger (handheld) or present an item to the reader in presentation mode to capture 1D and 2D codes.

Recommendations

Clean the sealed housing regularly using disinfectants approved by your facility; avoid harsh solvents not recommended by the manufacturer. Store and charge the device in a dry, ventilated area and follow your organisation’s infection-control protocols when moving between clinical areas.
