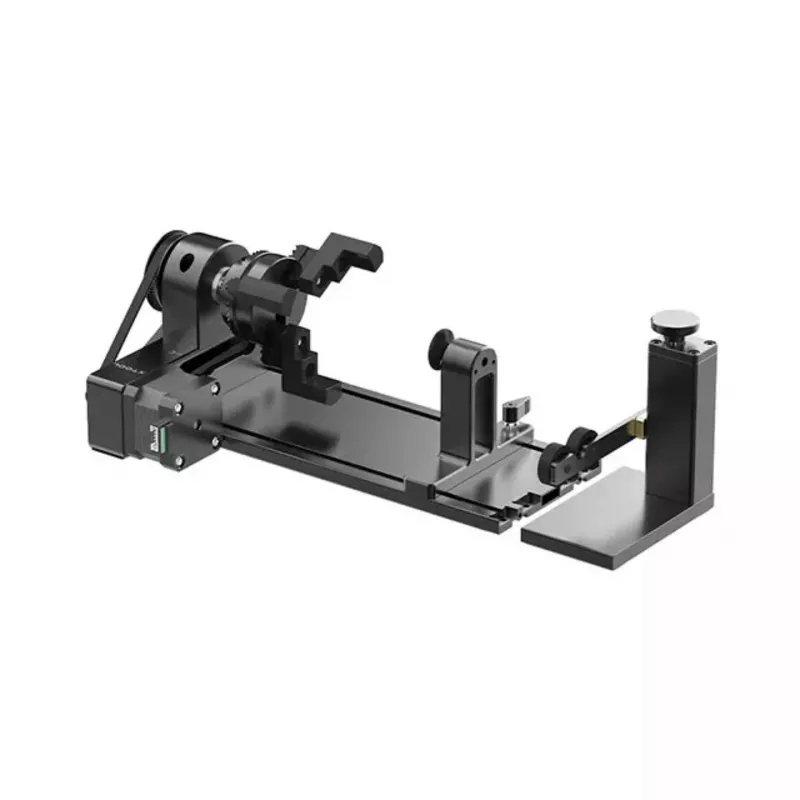

xTool RA2 Pro Rotary Extension for All xTool Laser Engravers

The xTool RA2 Pro Rotary Extension is a versatile 4-in-1 rotary attachment designed to expand the capabilities of all xTool laser engraving machines. It enables precise engraving on cylindrical objects, spheres, rings, and irregular shapes with high accuracy. The modular design allows quick swapping between roller, chuck, ring, and sphere engraving modes, making it an essential tool for personalized engraving projects.

Advantages

Unlock the full potential of your xTool laser engraver with the RA2 Pro. Its 4-in-1 functionality eliminates the need for multiple attachments, saving space and cost. The high-precision stepper motor ensures consistent, detailed engravings on curved surfaces. The included risers allow adjustable height for different object sizes, and the quick-swap design minimizes downtime between projects.

Suitable for

• Engraving cylindrical objects like bottles, glasses, and mugs
• Engraving spherical items such as golf balls and ornaments
• Engraving rings and jewelry
• Engraving irregularly shaped objects
• Personalized gifts, awards, and promotional items

Key specifications

• Compatibility: All xTool Laser Engravers (D1, D1 Pro, M1, S1, P2, F1, P2)
• Rotary Modes: 4-in-1 (Roller, Chuck, Ring, Sphere)
• Roller Engraving Diameter Range: 3-198 mm
• Chuck Engraving Diameter Range (Outer Clamping): 0-100 mm
• Chuck Engraving Diameter Range (Inner Clamping): 22-125 mm
• Chuck Jaw Type: 3-Jaw
• Sphere Engraving Diameter Range: 25-100 mm
• Ring Engraving Diameter Range: 11-70 mm
• Motor Type: High-precision Stepper Motor
• Material: Aluminum Alloy, Steel
• Control Software Compatibility: xTool Creative Space, LightBurn
• Connection Interface: 4-pin cable (to xTool machine)
• Included Accessories: Chuck, Roller Module, Sphere Engraving Module, Ring Engraving Module, Risers, Cables, Base Plate
• Application: Cylindrical objects, spheres, rings, irregular shapes
• Precision: High-precision engraving
• Adjustable Height: Yes, with included risers
• Power Source: Powered by xTool machine
• Installation: Quick-swap modular design

Recommendations

For best results, ensure your xTool machine firmware is up to date. Use xTool Creative Space or LightBurn software for optimal control. The RA2 Pro is ideal for businesses and hobbyists looking to offer custom engraving on a wide variety of objects.
