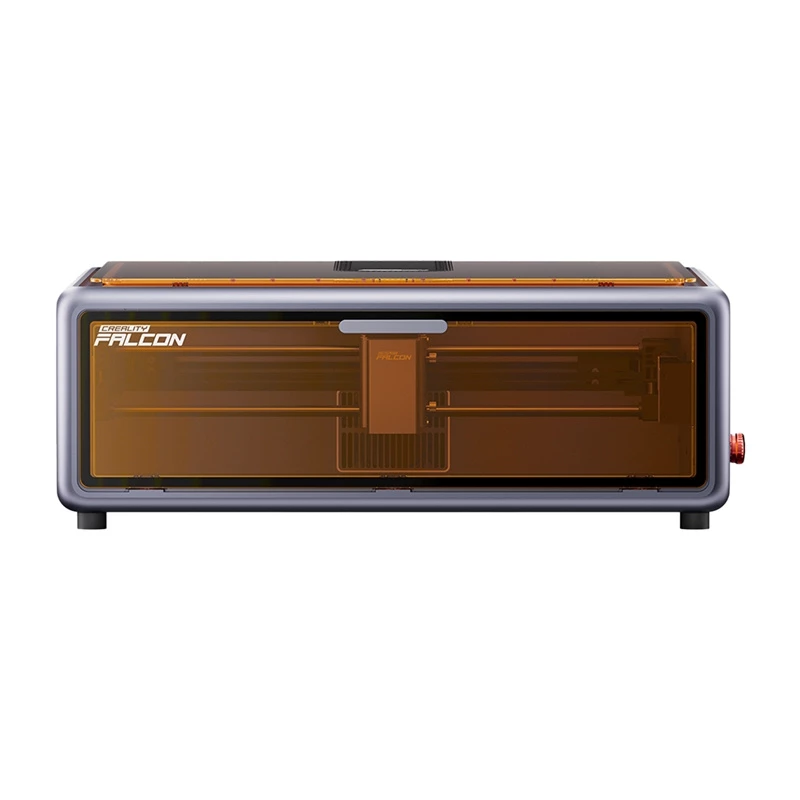

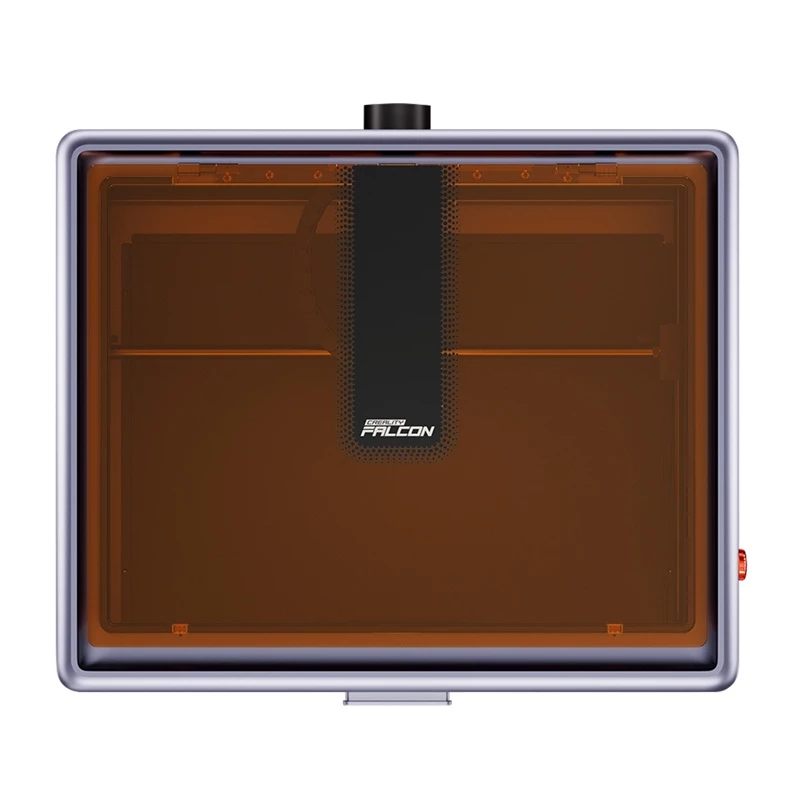

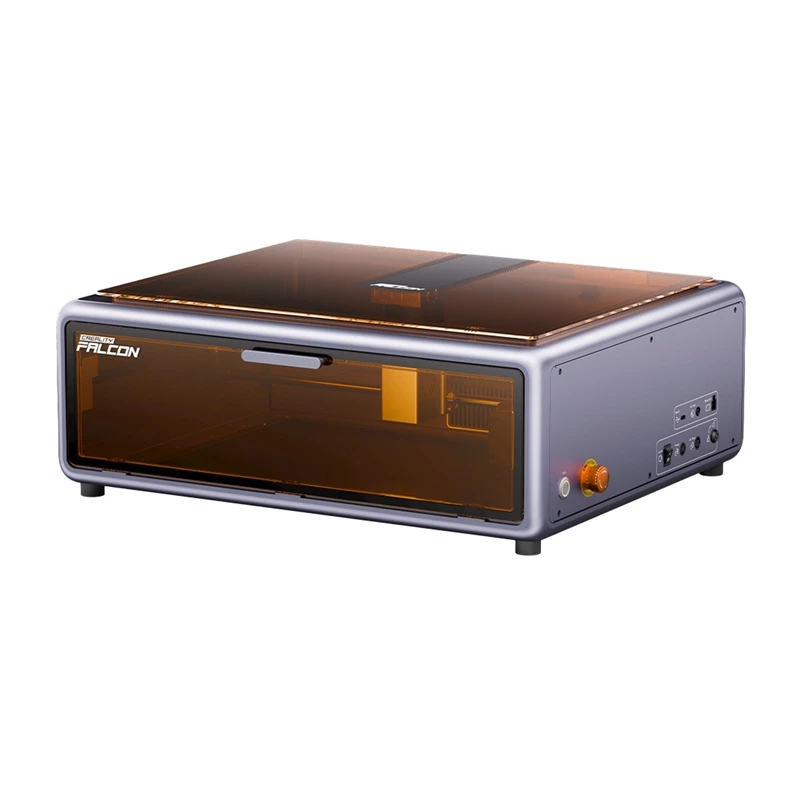

Creality Falcon A1 10W Laser Engraving Machine
Creality Falcon A1 is an advanced 10W laser engraving machine that guarantees high quality cutting. Thanks to its integrated camera and intelligent material recognition, using it will not be a problem for you. The Falcon A1 offers a workspace of 305 × 381 mm and a maximum working speed of up to 600 mm/s . What's more, it works with a wide range of materials - from wood and acrylic, to glass and leather, to metal or jewelry.
Ready to work without complicated setup
The Creality Falcon A1 comes pre-assembled and calibrated, saving up to 95% of the time needed to get the device ready for use. This is a huge convenience, especially for novice users or those who want to start working immediately after unpacking. Everything works on a plug & play basis - just plug in the power, insert the material and start engraving.
Precision camera and intelligent material recognition
The device is equipped with a full-range HD camera that gives an accurate view of the entire work area. The camera is calibrated at the factory, making material positioning and project preparation extremely easy. In addition, it automatically recognizes materials using a QR code system and independently selects the optimal laser operation settings, eliminating the need for manual configuration.
10W power and one-step cutting
Thanks to its dual laser beam technology, the Falcon A1 can cut as much as 9.6 mm of acrylic or 6 mm of wood in one go. This not only saves time, but also guarantees precise cutting without the need for repetition. The laser's precise spot (0.06×0.08 mm) makes it possible to make highly detailed engravings - ideal for both personalizing items and creating artistic designs.
Fast and smooth operation thanks to the CoreXY system
The high speed of operation (up to 600 mm/s) is made possible by the CoreXY motion mechanism. This system is based on two motors that ensure smooth and stable head movement, which translates into speed without sacrificing precision.
Various application possibilities
Falcon A1 can handle a variety of materials: wood, acrylic, glass, leather, metal, fabric, plastic or jewelry. As a result, it can be used for personalizing objects, creating decorations, engraving on cylindrical surfaces (with the help of an additional rotary kit), as well as for precision cutting.
Additional accessories for even more convenience
You can upgrade the Falcon A1 with a rotary kit that allows you to engrave cylindrical objects - such as glasses, bottles or cups. There's also a HEPA-filtered air purifier that removes 99.97% of pollutants, improving the comfort of working in closed rooms. Creality also offers a wide range of proprietary materials, tailored for compatibility and engraving quality.
Full compatibility and intuitive operation
Falcon A1 works with the popular LightBurn, LaserGRBL and Falcon Design Space software and runs under both Windows and macOS. It supports files in jpg, png, bmp, svg, dxf and many other formats, allowing you to work seamlessly with a variety of graphic designs.
Included
- Laser engraving machine
- Tube
- Clamp
- Air Assist module
- Silicone tube
- Power supply
- Lime plywood (300×300×3 mm) + QR card for materials
- Test calibration card
- Cable for connecting the rotating set
- Multi-level focusing block
- USB-A to USB-C cable
- Anti-static brush
- Allen wrench
- User manual
- Mounting tools (M1.5 / M2 / M2.5 / M3 allen keys, tweezers, dust-free cloth, protective lens, adapter from USB-A to USB-C, safety keys x2)
| Manufacturer | Creality |
|---|---|
| Model | Falcon A1 |
| Laser spot | 0.06 × 0.08 mm |
| Power max. | 120 W |
| Laser wavelength | 455 ±15 nm |
| Optical power | 10 W |
| Laser class | Class 1 (FDA) |
| Device dimensions | 567 × 468 × 196 mm |
| Engraving software | LightBurn, LaserGRBL, Falcon Design Space |
| Weight of the device | 15.5 kg |
| Operating system | Windows / macOS |
| Input voltage | 100-240 V, 50-60 Hz |
| Supported file formats | jpeg, jpg, png, bmp, svg, dxf, etc. |
| Output voltage | DC 24V/5.0A |
| Supported materials | Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, glass, plastic, etc. |
| Operating temperature | 5°C - 35°C |
| Engraving platform | 305 × 381 mm |
| Laser source | Laser diode |
How to use
The Falcon A1 arrives pre-assembled and factory-calibrated. Place the unit on a stable surface, connect the power supply (input 100–240 V, 50–60 Hz) and connect to a computer via USB. Load project files (jpeg, png, bmp, svg, dxf, etc.) in supported engraving software such as LightBurn, LaserGRBL or Falcon Design Space, position the material using the integrated camera view, confirm material settings (the device can auto-recognize materials via QR), set focus with the multi-level focusing block and start the engraving or cutting process.
Recommendations
Use appropriate ventilation or the HEPA-filtered air purifier when working with materials that produce fumes. For cylindrical objects use the optional rotary kit. Always follow safety instructions for laser operation, use protective lenses and avoid direct eye exposure to the laser beam.
