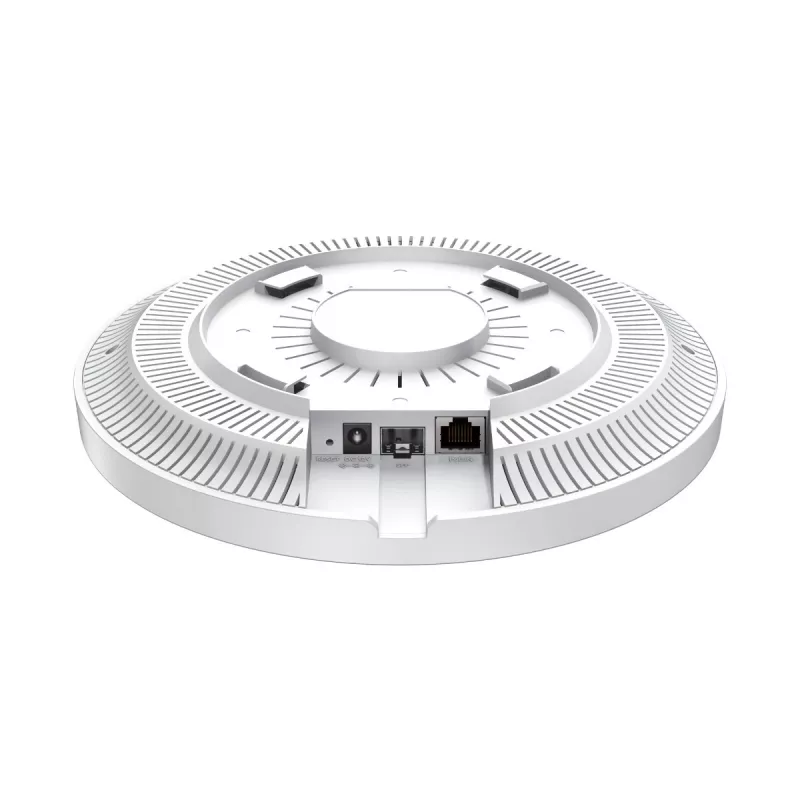

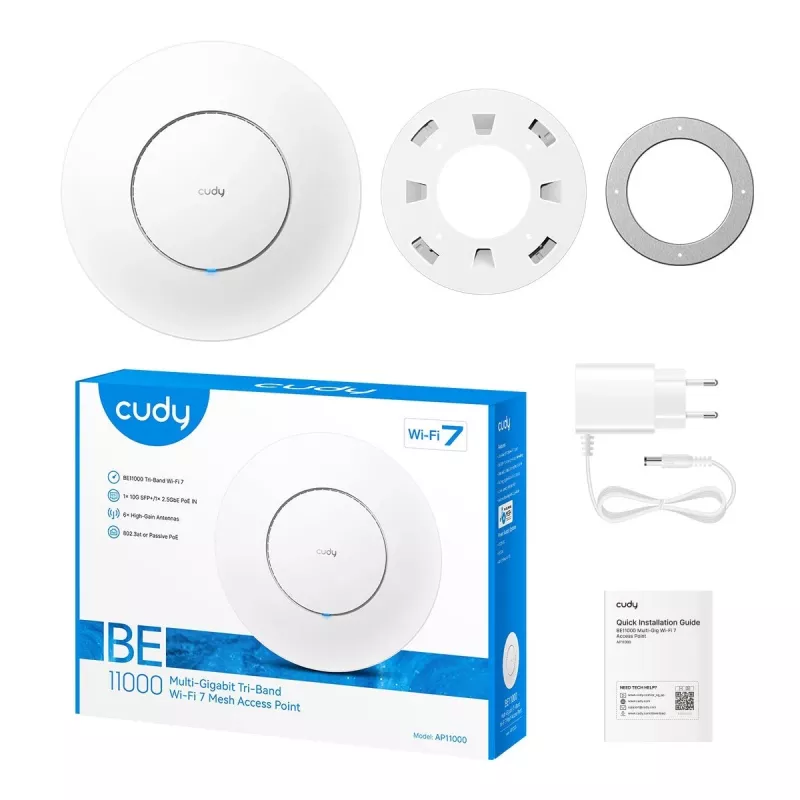

Wireless access point Cudy AP11000 — tri‑band Wi‑Fi 6 (2.4/5/6 GHz), 5760 Mbps, MU‑MIMO, ceiling/wall mount

The Cudy AP11000 is a wall/ceiling-mounted multi-gig WiFi 7 access point that supports 2.4 GHz, 5 GHz and 6 GHz bands and delivers combined high throughput for demanding public and commercial environments such as shopping and office complexes, busy stations, stadiums and campuses. The unit comes in a white enclosure, includes six internal antennas and provides advanced security with WPA, WPA2 and WPA3.

Advantages

The access point offers tri-band operation with a maximum data transfer rate of 5760 Mbit/s and multi-gig Ethernet support for high-speed backhaul. Its compact wall/ceiling form factor simplifies installation in public spaces, while integrated security protocols help protect client connections. The device has low power consumption and a lightweight design suitable for dense deployments.

Suitable for

• Shopping centres and retail areas
• Office buildings and coworking spaces
• Train stations, bus terminals and transit hubs
• Stadiums and event venues
• University campuses and large educational facilities

Key specifications

• Wireless bands: 2.4 GHz, 5 GHz, 6 GHz
• Data rates (per band listed): 2.4 GHz — 688 Mbit/s; 5 GHz — 4320 Mbit/s; 6 GHz — 5760 Mbit/s
• Maximum data transfer rate: 5760 Mbit/s
• Security: WPA, WPA2, WPA3
• Antennas: 6 internal
• Ethernet LAN (RJ-45) ports: 1 (supports multi-gig backhaul)
• Colour: White
• Weight: 0.5782 kg
• Maximum power consumption: 20 W
• Brand / Model: Cudy AP11000 (MPN: AP11000 1.0)

How to use

Mount the AP11000 on a wall or ceiling in a central position for target coverage, connect the Ethernet cable to the RJ-45 port and provide power according to the installation guide. Configure SSID, security mode (WPA/WPA2/WPA3) and other network parameters through the device management interface or supported controller. Place the unit away from large metal objects and reflective surfaces to optimise radio performance.

Recommendations

For large or high-density deployments, plan AP placement and channel allocation to minimise co-channel interference; use multi-gig ethernet backhaul where available and enable WPA3 for strongest security when client devices support it.
