Water Pump Gardena 9014-47

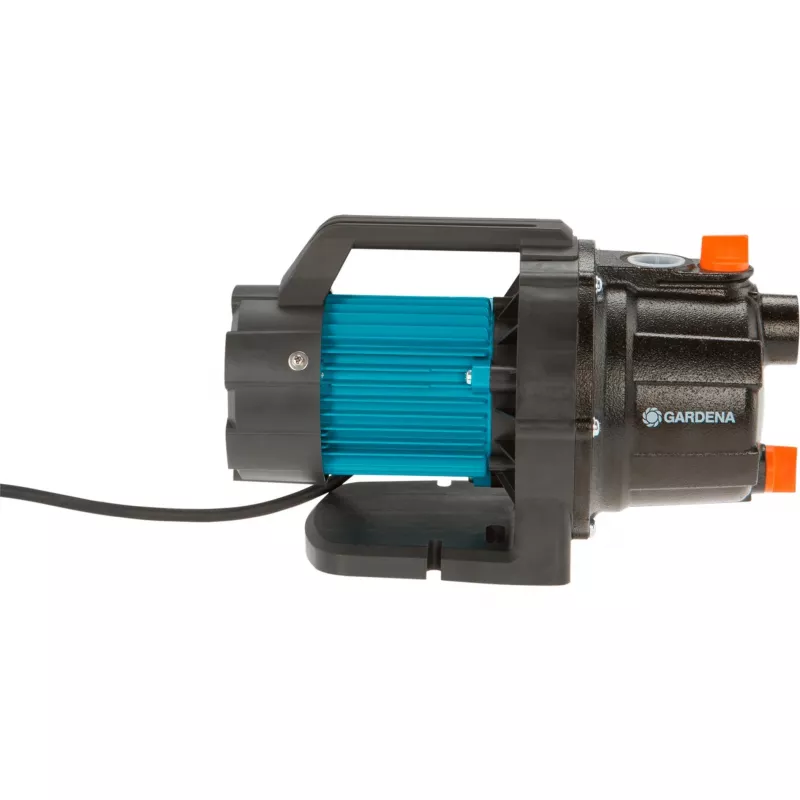

The Gardena 9014-47 water pump is an 800 W electric pump designed for garden water supply, irrigation and water transfer. It delivers up to 3700 litres per hour with a maximum pressure of 4.1 bar and a maximum delivery head of 41 metres. The pump is rated IPX4 for protection against splashing water and is supplied with a durable H07 RNF power cable. With a compact design and a weight of approximately 8 kg, it is straightforward to move and install for seasonal or occasional use.

Advantages

The pump combines high flow performance with a compact, lightweight housing that simplifies transport and placement. Its 800 W motor provides stable pressure up to 4.1 bar, making it suitable for a variety of garden tasks. The IPX4 splash protection increases operational safety in outdoor environments, while the supplied H07 RNF cable ensures reliable power connection. The pump construction supports continuous operation for water transfer and irrigation duties.

Suitable for

• Garden irrigation and sprinkler systems
• Transfer of rainwater from barrels and tanks
• Pressurising domestic outdoor water supplies
• Filling and emptying small ponds, pools or water containers

Key specifications

• Motor power: 800 W
• Maximum flow rate: 3700 l/h
• Maximum pressure: 4.1 bar
• Maximum delivery height (head): 41 m
• Protection rating: IPX4 (splash protection)
• Approximate weight: 8 kg
• Power cable type: H07 RNF

How to use

Place the pump on a stable, level surface close to the water source and connect inlet and outlet hoses according to the hose and connector sizes. Ensure electrical connection to a suitably rated outlet and follow local safety regulations. Prime the pump if required by filling the inlet hose or pump housing with water before starting. Start the pump and check for stable flow and pressure. Monitor the pump during operation for unusual noise, vibration or overheating and stop the unit before inspecting or adjusting connections.

Recommendations

Use suitable hose diameters and fittings to minimise pressure loss and avoid excessive bending or kinking of hoses. Protect the pump from freezing temperatures and avoid prolonged dry running. For extended outdoor installation, provide additional shelter from direct weather exposure while maintaining ventilation around the motor. Regularly inspect hoses, connectors and the power cable for wear and damage.
