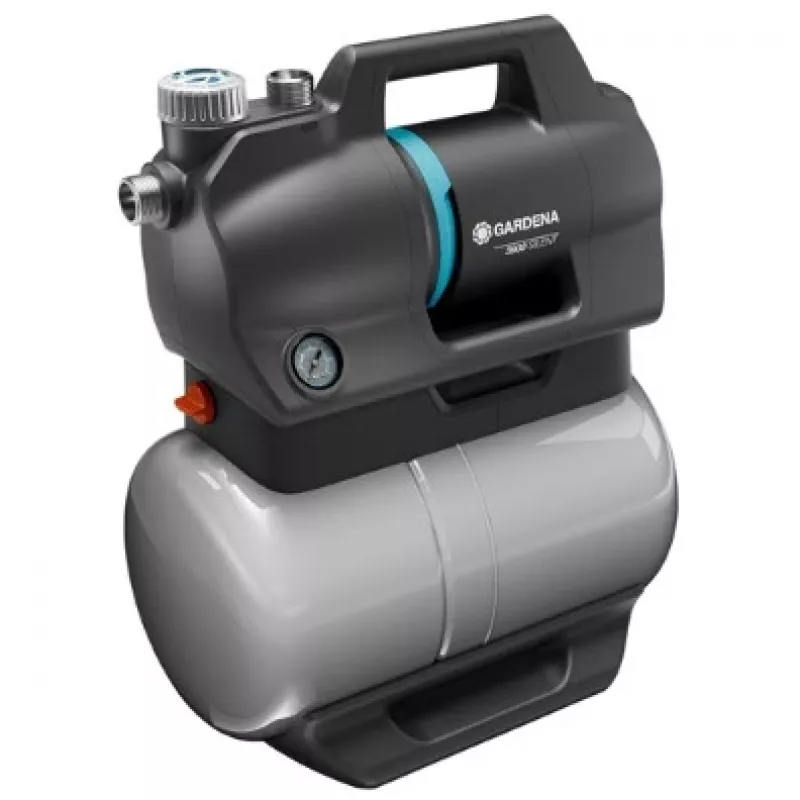

Water Pump Gardena 5600 SilentComfort

The Gardena 5600 SilentComfort water pump is designed for garden irrigation, water transfer and pressure boosting tasks. Equipped with a 650 W motor, it delivers a maximum pressure of 4.3 bar and a maximum flow rate of 3900 l/h, enabling efficient water supply to sprinklers, drip systems and outdoor taps. The pump features a stainless steel drive shaft and an IPX4 splash-protection rating, and its compact dimensions (452 mm width, 259 mm depth, 547 mm height) allow convenient installation and placement in garden utility areas.

Advantages

The pump offers quiet operation relative to comparable models, combined with robust water delivery suitable for medium-sized gardens. Durable construction elements such as a stainless steel drive shaft enhance longevity while the IPX4 protection rating protects against splashing water during outdoor use. High delivery head capability ensures water can be supplied to elevated areas or long runs with minimal additional equipment.

Suitable for

• Irrigation of lawns and flower beds with sprinklers or drip systems
• Water transfer from tanks, barrels or cisterns to garden supply points
• Boosting water pressure for outdoor taps and watering systems
• Supplying water to elevated garden features or rooftop planters up to the specified delivery height

Key specifications

• Motor power: 650 W
• Maximum pressure: 4.3 bar
• Maximum flow rate: 3900 l/h
• Maximum delivery height: 43 m
• Drive shaft material: stainless steel
• Protection rating: IPX4 (splash protection)
• Dimensions (W×D×H): 452 × 259 × 547 mm

How to use

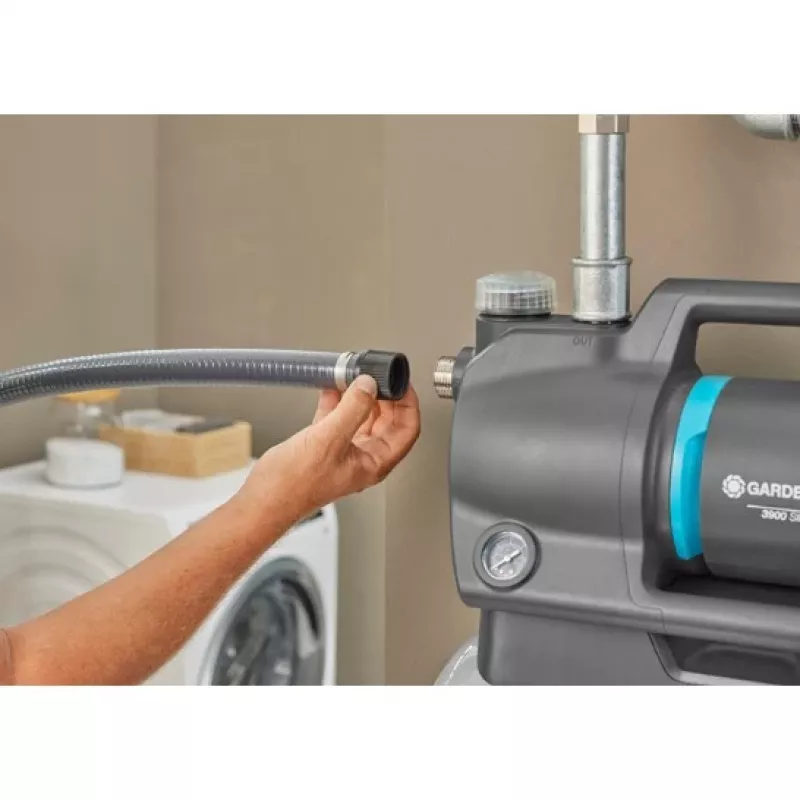

Place the pump on a stable, level surface close to the water source and ensure all connections are tight and leak-free. Connect the suction and delivery hoses or pipes according to the installation requirements, observing appropriate hose diameters for the intended flow. Connect the pump to a suitable electrical supply following local wiring regulations and the manufacturer's safety instructions. Prime the pump if required by the installation and start the motor, monitoring pressure and flow to verify correct operation. Turn off and isolate the pump before performing any maintenance.

Recommendations

For reliable performance, use clean water free of large debris and periodically check filters and inlet strainers. Avoid prolonged dry running and ensure frost protection when used outdoors in low temperatures. Match hose and pipe diameters to the pump's flow capability to minimize losses and maintain the specified delivery height and pressure.
