Water block EK Water Blocks Copper Nickel

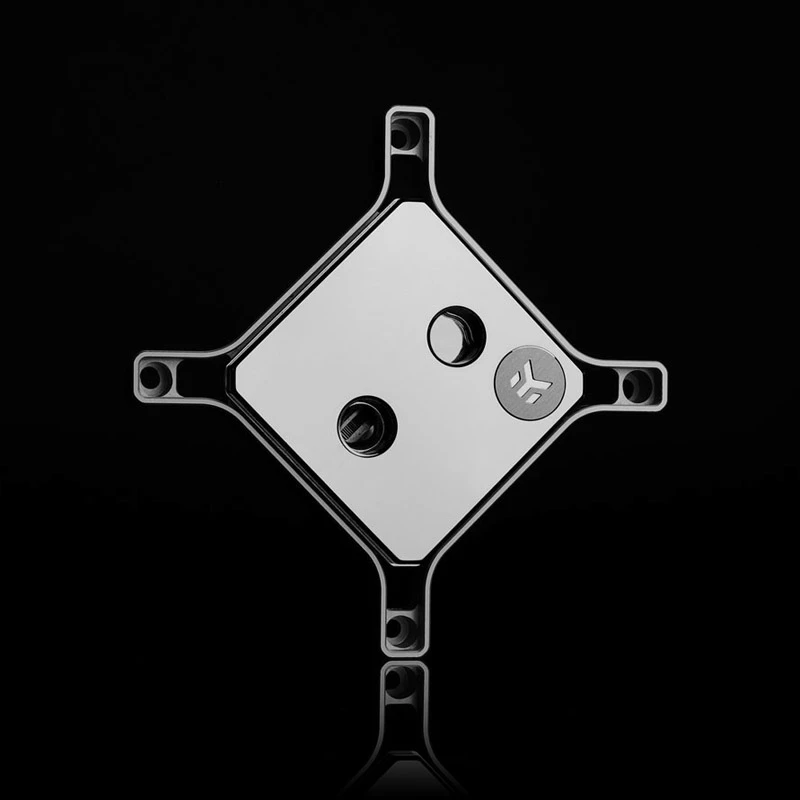

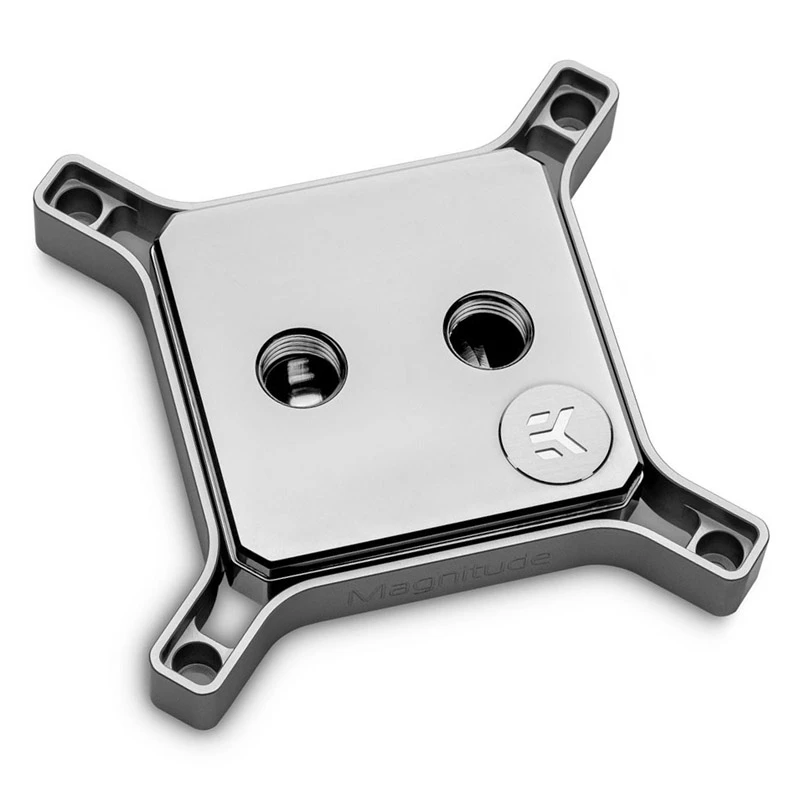

The EK-Quantum Magnitude 1700 is a bespoke CPU water block by EK Water Blocks designed for Intel® 12th Generation Core processors (socket 1700). It pairs a nickel-plated copper cold plate with a nickel-plated brass top and a CNC-machined brass insert to deliver high thermal transfer with low flow restriction. The block’s enlarged fin array and 0.40 mm microchannels with 0.26 mm microfins increase cooling surface area while keeping a compact footprint compatible with small form-factor motherboards. The 1700-specific insert and cold plate geometry direct coolant flow evenly over the CPU die, and the insert is reversible to allow easier tube routing.

Advantages

The Magnitude 1700 offers a combination of optimized flow distribution, increased fin surface area (approximately 50% larger compared to previous generations), and precision CNC machining of each component from solid material for consistent build quality. Its reversible brass insert enables inlet/outlet swapping for flexible tubing layouts. Interchangeable aesthetic frames (sold separately) and a three-dimensional X-shaped mounting mechanism provide secure mounting and compatibility with various fittings and visual styles. The included nickel-plated copper cold plate and microchannel geometry maximize thermal transfer while minimizing flow restriction.

Suitable for

• Custom liquid-cooled desktop PCs using Intel 12th Gen CPUs (socket 1700)
• High-performance gaming and workstation systems requiring efficient CPU cooling
• Compact builds (mITX/mATX) where a small footprint and low flow restriction are important

Key specifications

• Compatibility: Intel® socket 1700 (12th Gen Core)

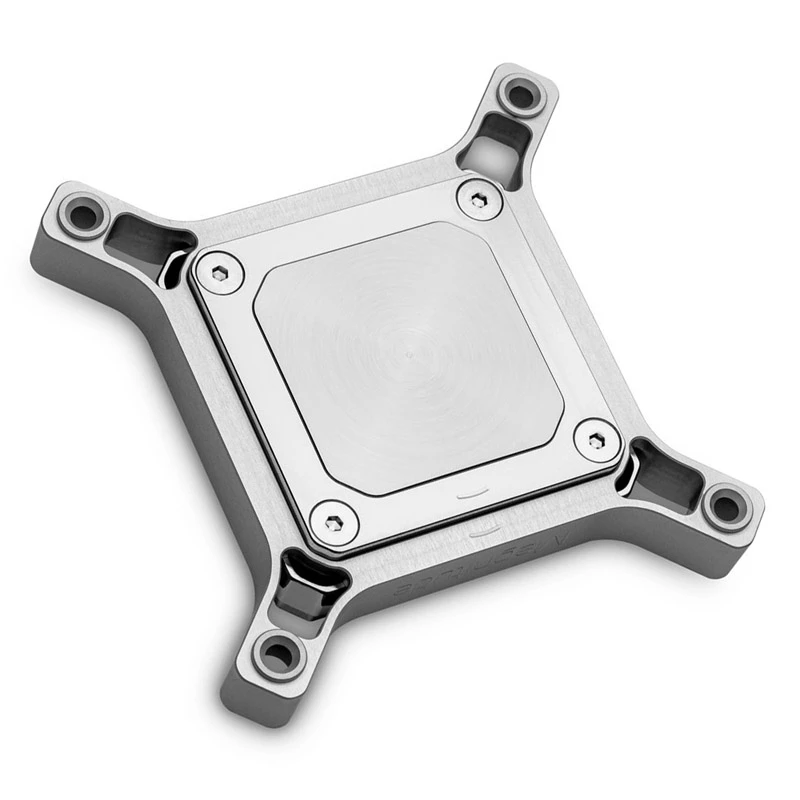

• Cold plate material: Nickel-plated copper
• Top and insert material: Nickel-plated CNC-machined brass
• Microchannel width: 0.40 mm
• Microfin thickness: 0.26 mm
• Enclosed items: water block, mounting mechanism with springs/screws/washers, pre-installed stock jet plate (0.6C), Thermal Grizzly Hydronaut (1.0 g)

How to use

Install the mounting mechanism onto the motherboard in accordance with the supplied hardware and EK’s mounting instructions for socket 1700. Apply the included Thermal Grizzly Hydronaut thermal paste to the CPU IHS, fit the EK-Quantum Magnitude 1700 so the cold plate contacts the CPU, and secure the block using the supplied springs, screws, and washers to the recommended mounting pressure. If needed, rotate the brass insert 180° to change inlet and outlet ports for preferred tube routing. Connect tubing and fittings compatible with the EK-Quantum Torque or other matching fittings, then pressure-test and fill the loop following standard liquid-cooling procedures.

Recommendations

Use the stock jet plate for general cooling setups; consider testing alternative jet plates or fine-tuning flow rates for optimal performance. Replace or upgrade interchangeable frames separately if you require specific aesthetics or D-RGB diffusion. Ensure leak testing after installation and use corrosion-inhibiting coolant compatible with nickel-plated copper and brass components.
