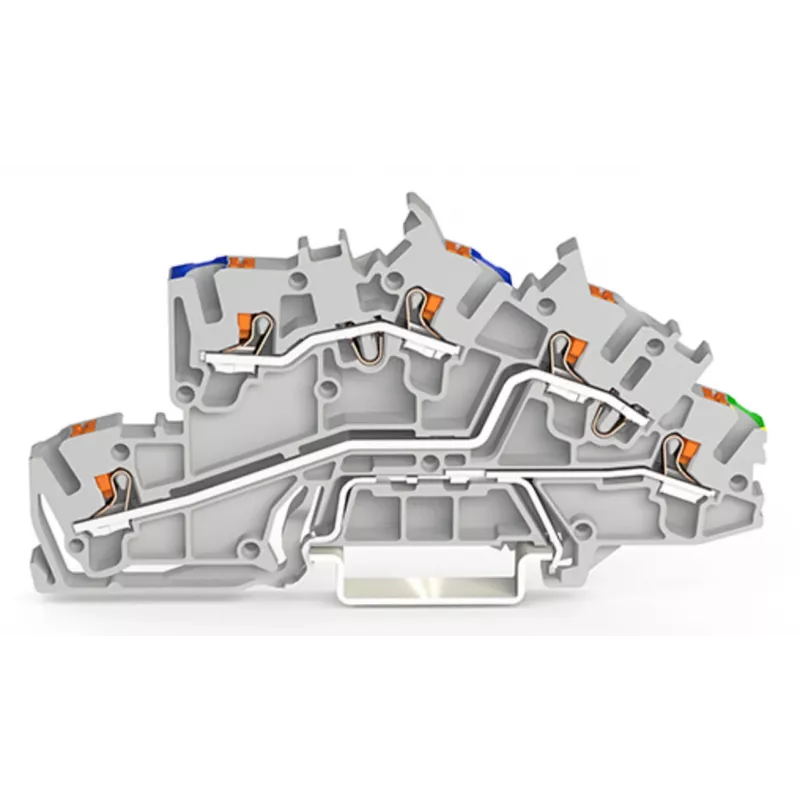

WAGO Installation Terminal Block 2203-7646 with Push-button 2.5 mm² Grey

The WAGO Installation Terminal Block 2203-7646 is a high-quality, compact terminal block designed for reliable and tool-free wiring in electrical installations. Featuring PUSH WIRE® connection technology and push-button actuation, it ensures fast, secure, and maintenance-free connections for solid, stranded, and fine-stranded conductors. Ideal for use in junction boxes, distribution boards, and control cabinets, this terminal block meets the highest safety standards with a rated voltage of 400 V and rated current of 24 A.

Advantages

Tool-free operation with PUSH WIRE® technology and push-button actuation saves time and effort. Compact 2-level design allows for dense wiring in limited spaces. Transparent housing provides visual inspection of conductor insertion. Vibration-proof and maintenance-free connections ensure long-term reliability. Suitable for a wide range of conductor sizes from 0.5 to 4 mm² (solid/stranded) and 0.5 to 2.5 mm² (fine-stranded).

Suitable for

• Electrical installations in residential and commercial buildings
• Wiring in junction boxes, distribution boards, and control cabinets
• Connecting lighting, switches, sockets, and other electrical devices
• Industrial automation and control systems

Key specifications

• Product Type: Installation Terminal Block
• Series: 2203 Series
• Number of Conductors: 2
• Number of Levels: 2
• Nominal Cross-Section: 2.5 mm²
• Connectable Conductor Size (Solid): 0.5 ... 4 mm² (20 ... 12 AWG)
• Connectable Conductor Size (Stranded): 0.5 ... 4 mm² (20 ... 12 AWG)
• Connectable Conductor Size (Fine-Stranded): 0.5 ... 2.5 mm² (20 ... 14 AWG)
• Connection Technology: PUSH WIRE® (for solid/stranded), Push-button (for fine-stranded)
• Rated Voltage (EN): 400 V
• Rated Impulse Voltage (EN): 4 kV
• Rated Current (EN): 24 A
• Color: Grey
• Mounting Type: DIN-rail 35
• Stripping Length: 11 mm
• Pollution Degree: 2
• Insulating Material Group: I
• Actuation Type: Push-button

Recommendations

For optimal performance, use WAGO original tools and accessories. Ensure proper stripping length of 11 mm for reliable connections. This terminal block is compatible with all standard DIN-rail 35 mm mounting systems.
