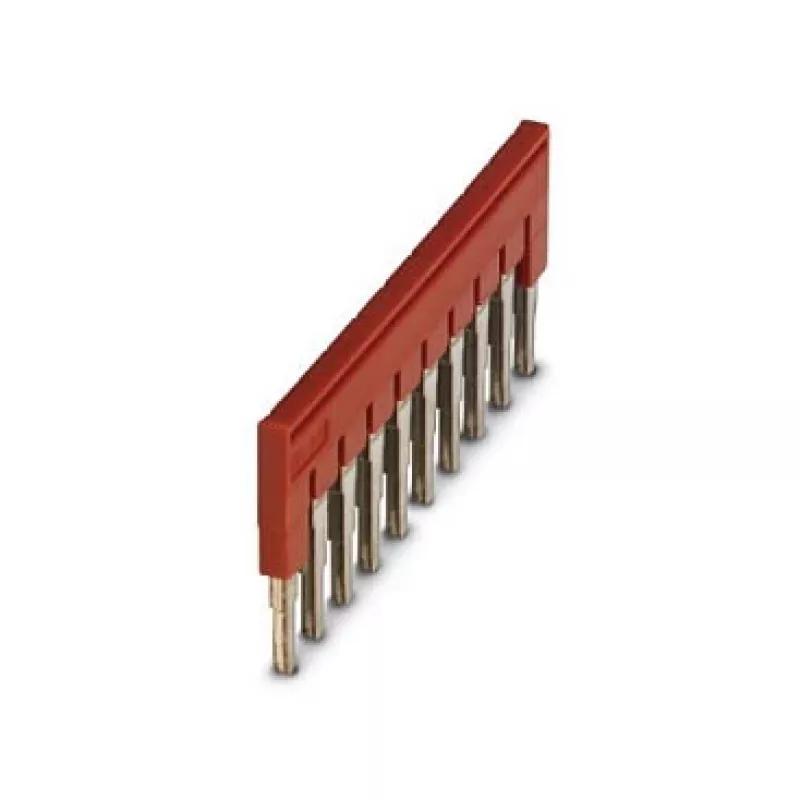

Phoenix Contact 3030271 FBS 10-6 Plug-in Bridge, 10-Position, 6.2 mm Pitch, Red

The Phoenix Contact 3030271 FBS 10-6 plug-in bridge is a robust and reliable solution for electrically connecting adjacent terminal blocks in control and distribution systems. Engineered for a 6.2 mm pitch, this 10-position bridge simplifies potential distribution, reducing wiring time and potential errors. Its bright red polyamide housing not only provides clear visual identification but also ensures high mechanical strength and electrical insulation, making it a trusted component for demanding industrial environments.

Highlights

• 10-position plug-in bridge for 6.2 mm terminal blocks
• Rated voltage: 500 V (IEC), rated surge voltage: 6 kV
• Rated current: 24 A
• Flame-retardant polyamide (PA) housing, UL 94 V0 rated
• Wide operating temperature range: -60 °C to 105 °C
• Red colour for easy identification
• Approvals: IEC 60947-7-1, UL, cUL, EAC

In daily use

This plug-in bridge is ideal for creating common potential rails across multiple terminal blocks, whether in control cabinets, junction boxes, or machinery. Simply push the bridge onto the terminal blocks' feed-through positions to establish a reliable electrical connection. The secure fit and robust construction ensure long-term stability even under vibration or thermal cycling. Its compact design helps maintain a tidy wiring layout, and the red colour makes it easy to spot during maintenance.

Full specifications

• Product Type: Plug-in bridge
• Number of Positions: 10
• Pitch: 6.2 mm
• Rated Voltage (IEC): 500 V
• Rated Surge Voltage: 6 kV
• Rated Current: 24 A
• Insulation Material: Polyamide (PA)
• Colour: Red
• Flammability Rating: UL 94 V0
• Operating Temperature Range: -60 °C ... 105 °C
• Mounting Type: Plug-in
• Compatible Terminal Block Pitch: 6.2 mm
• Standards/Approvals: IEC 60947-7-1, UL, cUL, EAC
• Environmental Compliance: RoHS, REACH
• Overvoltage Category: III
• Pollution Degree: 3

Final note

With its proven design and high-quality materials, the Phoenix Contact FBS 10-6 bridge delivers dependable performance in a compact form. It is a practical choice for engineers seeking to streamline wiring and enhance system reliability.
