WAGO Gelbox Size 1 4 mm² 207-1331

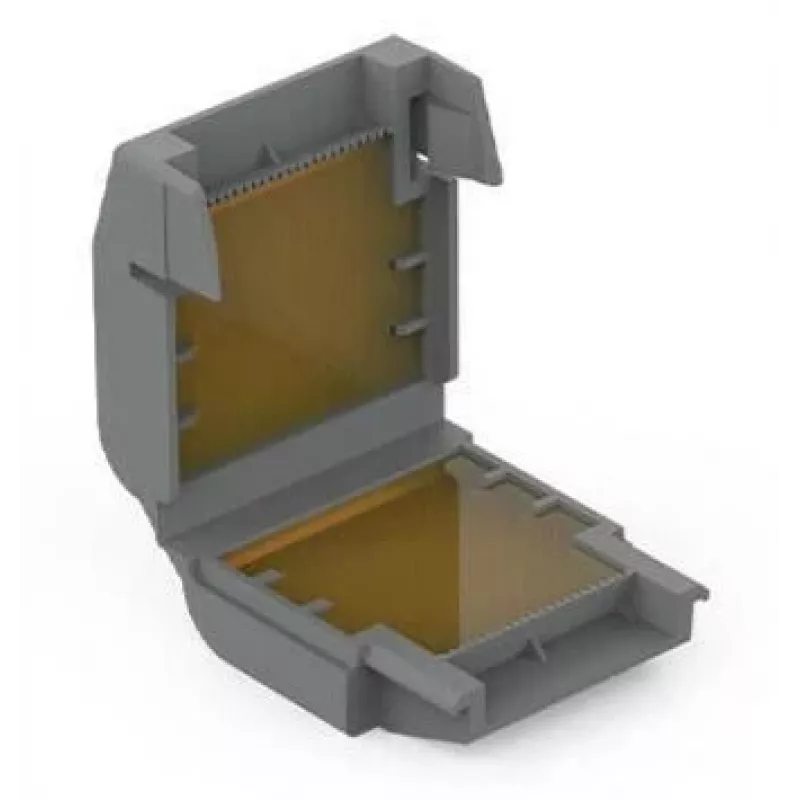

The WAGO Gelbox 207-1331 (Size 1) provides reliable, waterproof protection for electrical connections, specifically designed for use with WAGO 221 Series splicing connectors. This compact gel-filled enclosure ensures IPX8-rated protection, making it ideal for outdoor, underground, and damp indoor environments.

Advantages

IPX8 waterproof protection ensures safe operation even in submerged conditions. The silicone-free polyurethane gel is re-enterable, allowing for easy inspection and maintenance without damaging the seal. Halogen-free and UV-resistant materials guarantee long-term durability and safety.

Suitable for

• Protecting WAGO 221-412 (2-wire), 221-413 (3-wire), and 221-415 (5-wire) splicing connectors
• Outdoor lighting, garden installations, and irrigation systems
• Underground cable joints and junction boxes
• Industrial and marine electrical connections requiring high ingress protection

Key specifications

• Product Type: Gelbox
• Size: Size 1
• Max. Conductor Cross-Section: 4 mm²
• Ingress Protection: IPX8
• Rated Voltage: 450 V (with 221 Series)
• Rated Current: 32 A (with 221 Series)
• Operating Temperature: -20 °C to +85 °C
• Housing Material: Polypropylene (PP)
• Gel Material: Silicone-free polyurethane gel
• Halogen-Free: Yes
• UV Resistance: Yes
• Re-enterable: Yes
• Colour: Transparent / Orange

Recommendations

For optimal performance, use only with WAGO 221 Series connectors. Ensure the gel is fully seated and the lid is securely closed to maintain IPX8 rating. Suitable for indoor and outdoor use.
