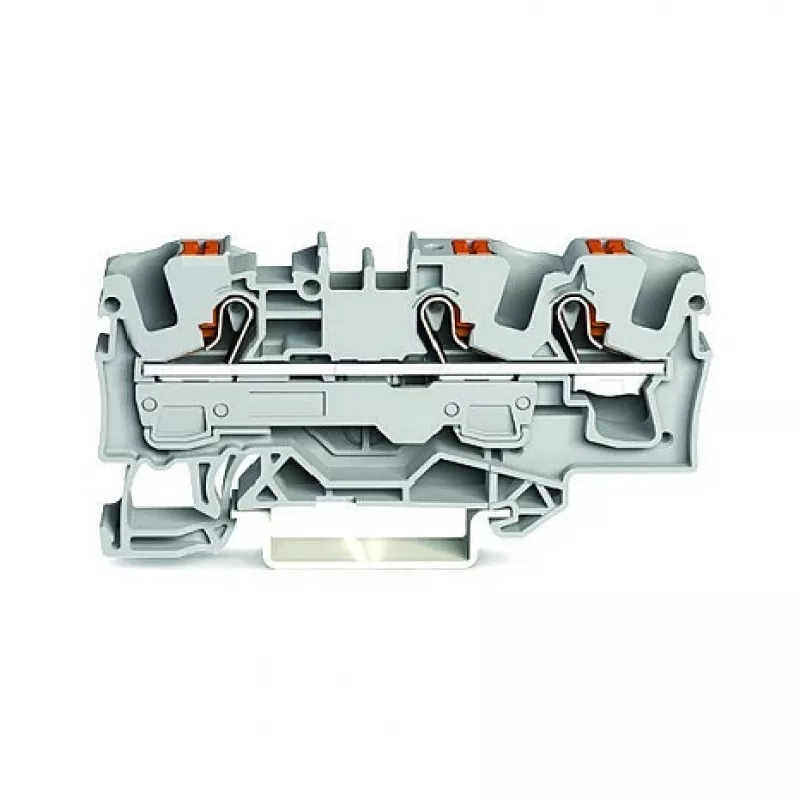

WAGO 2206-1301 3-Conductor Feedthrough Terminal Block with Push-Button, 6 mm², Grey

Panel builders and machine OEMs rely on the WAGO 2206-1301 for fast, tool-free wiring in control cabinets and distribution boxes. This grey 3-conductor feedthrough terminal block uses CAGE CLAMP® with a push-button to secure solid, stranded, and fine-stranded conductors from 0.5 to 6 mm² without ferrules. Mount it on a standard DIN-rail TS 35 and connect up to six wires on a single potential—ideal for dense, high-current circuits up to 41 A.

Key specifications

• 3-conductor feedthrough terminal block, grey
• Connection: CAGE CLAMP® with push-button (PUSH WIRE® compatible)
• Nominal cross-section: 0.5–10 mm² solid/stranded, 0.5–6 mm² fine-stranded
• Rated voltage/current (IEC): 800 V / 41 A
• Rated voltage/current (UL): 600 V / 30 A
• Mounting: DIN-rail TS 35, side-entry wiring
• Insulation: Polyamide (PA 66), UL94 V-0
• Stripping length: 12–14 mm
• Approvals: ENEC, UL, CSA, KEMA

Why choose it

The push-button actuation reduces insertion force and speeds up wiring, especially for fine-stranded conductors. The compact 6 mm housing saves rail space, while the high current rating and 800 V insulation make it suitable for industrial power distribution. The grey colour blends with standard cabinet components, and the UL94 V-0 material meets strict fire safety requirements.

Ideal use cases

• Control panel power distribution and feedthrough connections
• Machine building and automation systems
• Building installation and HVAC control cabinets
• Retrofit projects requiring DIN-rail terminal blocks

Good to know

The terminal block supports both solid and stranded conductors without ferrules, but for fine-stranded wires, a ferrule is recommended for optimal reliability. It is part of the WAGO TOPJOB® S series, known for tool-free operation and high vibration resistance. Always verify local electrical codes before installation.
