WAGO 285-154 Through Terminal Block, 35 mm², CAGE CLAMP, Gray, 20x94x87 mm

The WAGO 285-154 is a high-performance through terminal block designed for reliable and maintenance-free electrical connections. With a rated cross-section of 35 mm² and a rated current of 125 A, it is ideal for demanding industrial applications. The CAGE CLAMP® connection technology ensures fast, vibration-proof wiring without the need for tools.

Advantages

• Tool-free CAGE CLAMP® connection for solid, stranded, and fine-stranded conductors
• Compact design saves space on DIN-35 rail
• High rated voltage of 1000 V and impulse voltage of 8 kV for safety
• Wide operating temperature range from -35 to +85 °C
• Side-entry wiring simplifies installation in tight spaces

Suitable for

• Industrial control cabinets
• Power distribution systems
• Building automation
• Machine wiring

Key specifications

• Connection Technology: CAGE CLAMP®
• Number of Potentials: 1
• Number of Clamping Units per Pole: 2
• Number of Connection Points: 2
• Nominal Voltage (III/3): 1000 V
• Rated Impulse Voltage (III/3): 8 kV
• Rated Current: 125 A
• Rated Cross Section: 35 mm²
• Connectable Conductor Size (Solid/Stranded): 0.5 - 50 mm² (20 - 1 AWG)
• Connectable Conductor Size (Fine-Stranded): 0.5 - 35 mm² (20 - 2 AWG)
• Stripped Length: 25 - 27 mm (0.98 - 1.06 inch)
• Mounting Type: DIN-35 Rail
• Insulating Material: Polyamide (PA 66)
• Color: Gray
• Pollution Degree: 3
• Operating Temperature: -35 to +85 °C
• Type of Wiring: Side-entry wiring

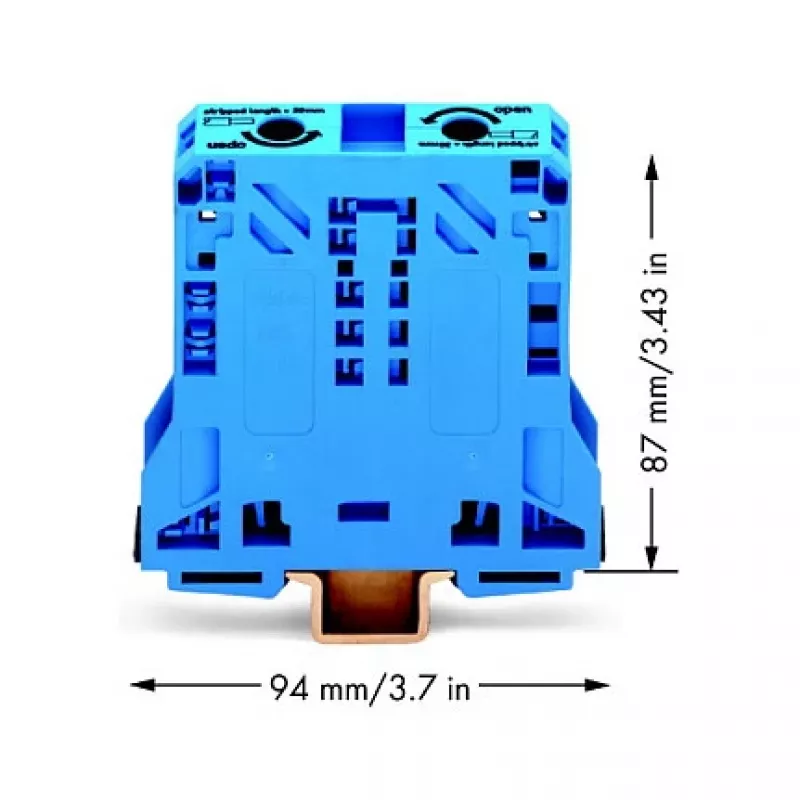

• Dimensions (WxHxD): 20 mm x 94 mm x 87 mm

Recommendations

For optimal performance, use with WAGO marking strips and appropriate accessories.
