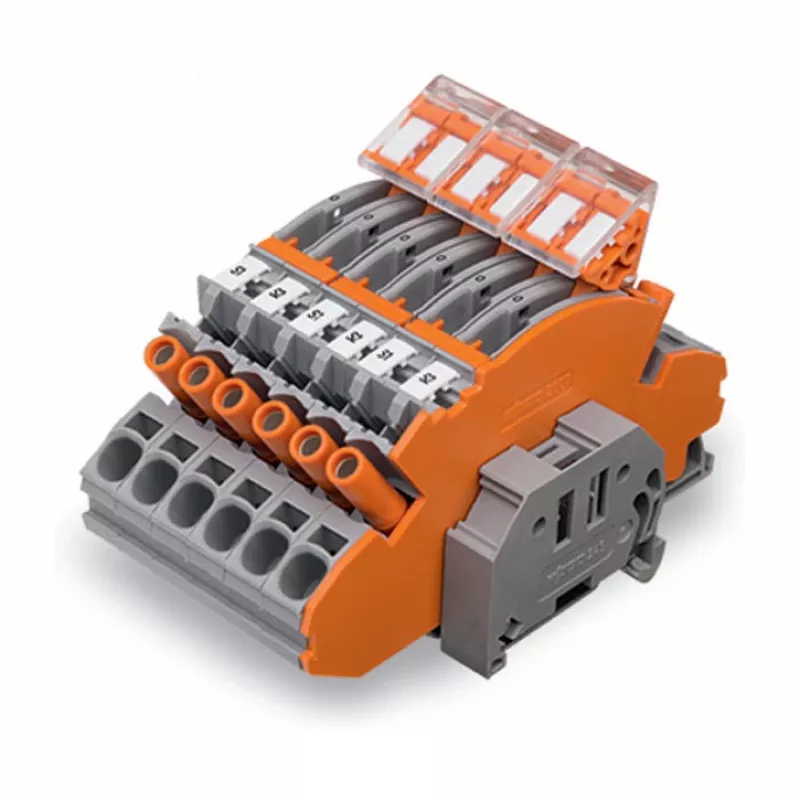

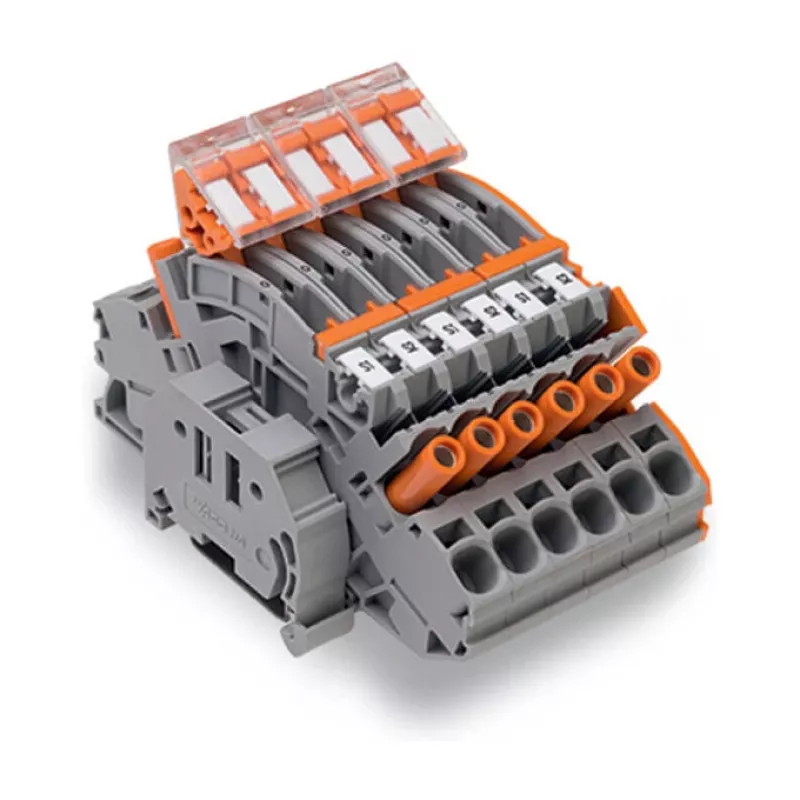

WAGO 2007-8875 Terminal Block for Current Transformers, 1-Pole, Gray, Push-in CAGE CLAMP, 41 A, 1000 V, DIN-rail

The WAGO 2007-8875 terminal block is specifically designed for current transformer applications, offering a reliable and space-saving connection solution. With its innovative Push-in CAGE CLAMP® technology, it ensures fast, tool-free wiring for solid and fine-stranded conductors. This 1-pole block features 3 connections and is rated for 41 A and 1000 V, making it suitable for demanding industrial environments.

Advantages

• Tool-free Push-in connection for solid and fine-stranded conductors
• Compact 1-pole design saves space on DIN-rail
• Integrated disconnect link and test socket for easy troubleshooting
• High rated voltage (1000 V) and surge voltage (8 kV) for safety
• Wide operating temperature range (-35 to +85 °C)
• Gray polyamide housing provides insulation and durability

Suitable for

• Current transformer secondary circuits
• Control cabinets and distribution boards
• Industrial automation and power distribution
• Applications requiring disconnect and test functionality

Key specifications

• Connection Technology: Push-in CAGE CLAMP®
• Number of Poles: 1
• Total Connections: 3
• Nominal Voltage (III/3): 1000 V
• Rated Surge Voltage (III/3): 8 kV
• Nominal Current: 41 A
• Solid Conductor: 0.25 - 6 mm² (22 - 10 AWG)
• Fine-Stranded Conductor: 0.25 - 6 mm² (22 - 10 AWG)
• Fine-Stranded with Ferrule: 0.25 - 4 mm² (22 - 12 AWG)
• Stripping Length: 12 - 14 mm
• Mounting: DIN-rail 35 x 15 / 35 x 7.5
• Color: Gray
• Insulation Material: Polyamide (PA 66)
• Operating Temperature: -35 to +85 °C
• Pollution Degree: 3
• Overvoltage Category: III
• Wiring Type: Front-entry
• Approvals: UL, CSA, VDE, EAC, KEMA/KEUR

Recommendations

For optimal performance, use with WAGO 2007 series accessories and ensure proper DIN-rail mounting. Always follow local electrical codes and manufacturer guidelines.
