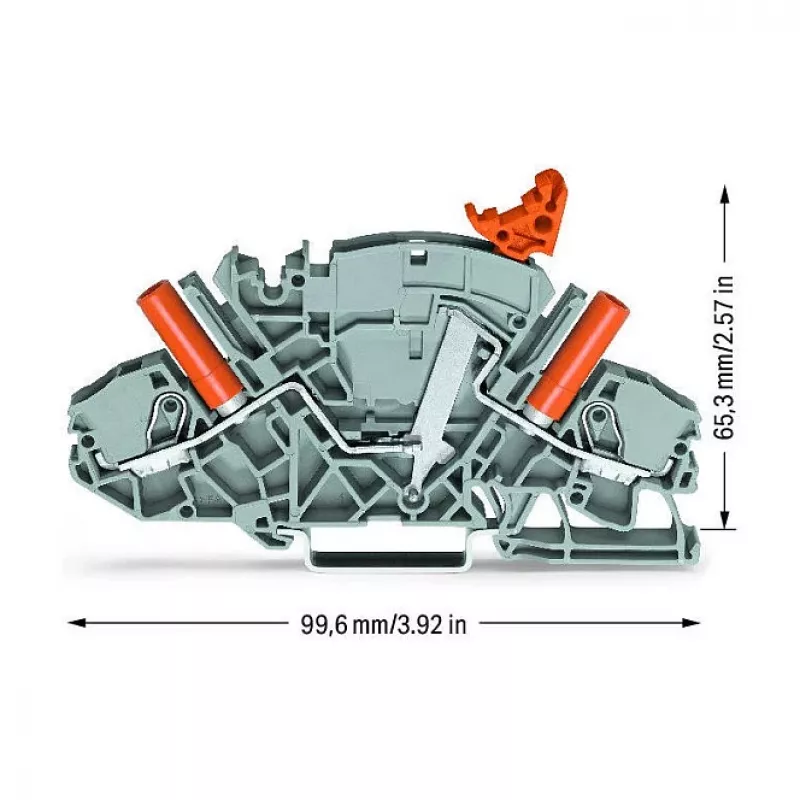

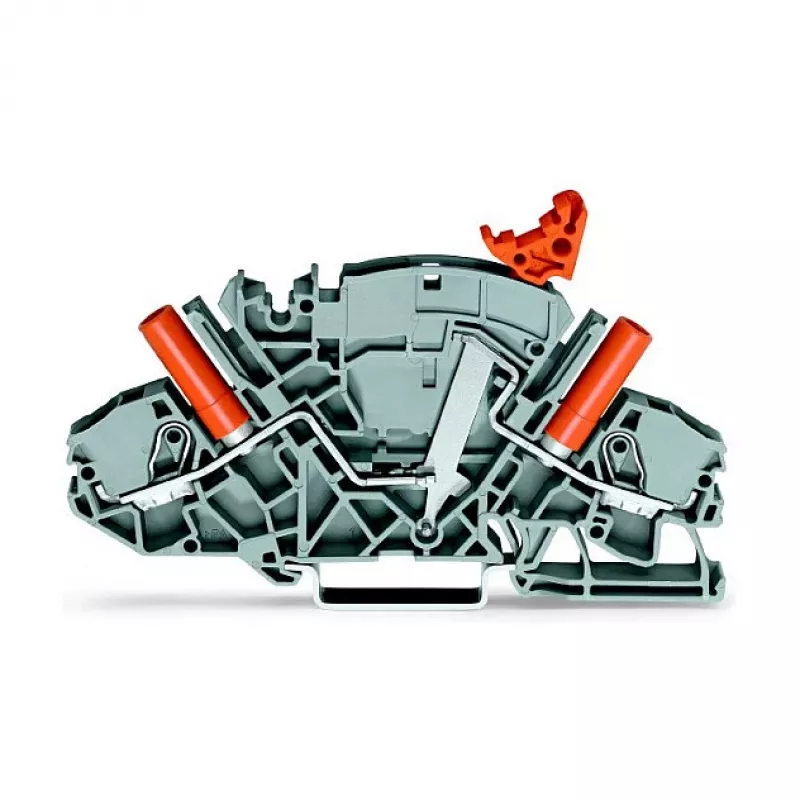

WAGO 2007-8821 3-Conductor Push-in Terminal Block, 10 mm², Gray

The WAGO 2007-8821 is a high-quality 3-conductor through terminal block designed for reliable and maintenance-free wiring in industrial and building installations. Featuring the innovative Push-in CAGE CLAMP® connection technology, it allows for fast and tool-free connection of solid conductors, significantly reducing installation time. With a nominal cross-section of 10 mm² (10 AWG) and a rated voltage of 1000 V, this terminal block is suitable for a wide range of applications requiring high current and voltage ratings.

Advantages

Push-in CAGE CLAMP® technology enables direct insertion of solid conductors without tools, saving time and effort. The compact design with side-entry wiring simplifies installation in tight spaces. The terminal block is made of polyamide (PA 66) with a flammability rating of UL94 V-0, ensuring high safety and durability. It is approved by multiple international standards including UL, CSA, VDE, EAC, ATEX, IECEx, and major marine classification societies.

Suitable for

• Industrial control cabinets and switchgear
• Building automation and lighting systems
• Power distribution and junction boxes
• Marine and offshore installations
• Hazardous area applications (ATEX/IECEx)

Key specifications

• Connection Technology: Push-in CAGE CLAMP®
• Number of Conductors: 3
• Nominal Cross-Section: 10 mm² (10 AWG)
• Nominal Voltage (IEC): 1000 V
• Nominal Current (IEC): 57 A
• Rated Impulse Voltage: 8 kV
• Mounting Type: DIN-rail 35
• Color: Gray
• Insulation Material: Polyamide (PA 66)
• Solid Conductor Size: 0.5 - 16 mm² (20 - 6 AWG)
• Fine-Stranded Conductor Size: 0.5 - 10 mm² (20 - 8 AWG)
• Stripping Length: 18 - 20 mm (0.71 - 0.79 inch)
• Pollution Degree: 3
• Overvoltage Category: III
• Flammability Rating: UL94 V-0
• Operating Temperature: -35 °C to +85 °C
• Approvals: UL, CSA, VDE, EAC, ATEX, IECEx, Marine (GL, DNV, LR, RINA, ABS, BV)
• Type of Wiring: Side-entry wiring
• Number of Potentials: 1
• Actuation Type: Push-in / Push-button

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length (18-20 mm) for reliable connection. Suitable for use with copper conductors only.
