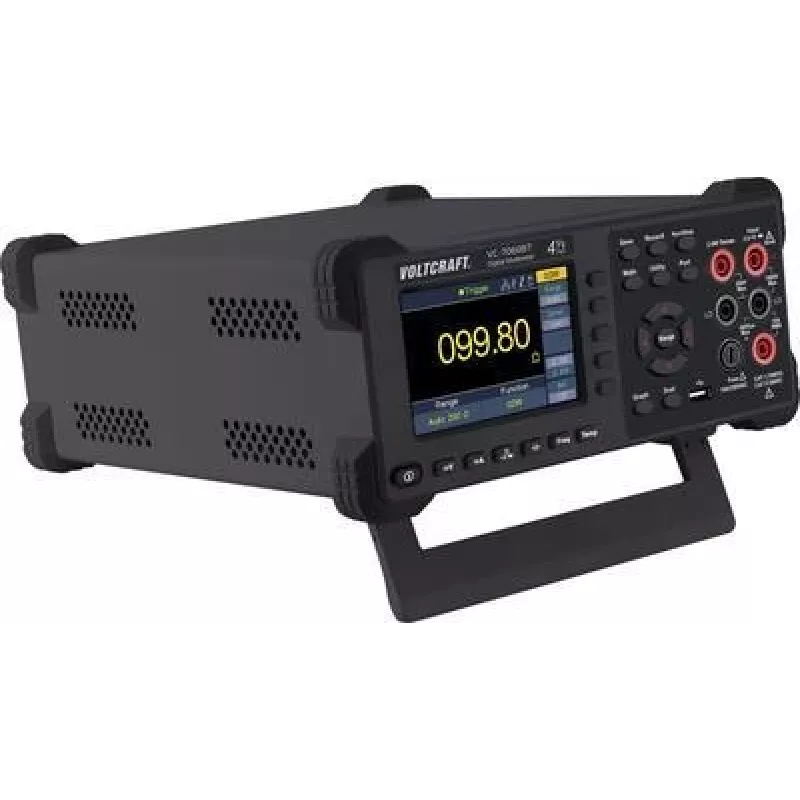

VOLTCRAFT VC-7060BT Bench Multimeter Digital Data Logger True RMS 60000 Counts CAT I 1000 V, CAT II 600 V VC-11015335

The VOLTCRAFT VC-7060BT is a high-precision bench multimeter with true RMS measurement and a 60,000-count display, ideal for demanding electronics work. Its standout capability is the built-in data logger with 10,000-reading storage and Bluetooth/USB connectivity for effortless PC analysis.

Advantages

Accurate true RMS readings with 0.05% basic DC voltage accuracy, CAT I 1000 V / CAT II 600 V safety rating, and a wide range of measurement functions including temperature, capacitance, frequency, diode, and continuity tests. The bright LCD with backlight ensures readability in any lab environment.

Suitable for

• Professional electronics laboratories and service centers
• Research and development departments
• Educational institutions for advanced training
• Field service technicians needing data logging

Key specifications

• Display: 60,000 counts, LCD with backlight
• True RMS measurement
• DC voltage: 60 mV – 1000 V
• AC voltage: 60 mV – 750 V
• DC current: 600 µA – 10 A
• AC current: 600 µA – 10 A
• Resistance: 600 Ω – 60 MΩ
• Capacitance: 6 nF – 60 mF
• Frequency: 10 Hz – 10 MHz
• Temperature: -50 to +1000 °C (K-type)
• Data logging: 10,000 readings
• Interfaces: USB, Bluetooth
• Power: 230 V AC mains
• Diode and continuity test

Recommendations

For professionals who demand precision and connectivity, the VC-7060BT is an excellent choice. Pair it with the VOLTCRAFT software for seamless data visualization and reporting.
