Digital multimeter Unit UT60EU TRMS, CAT II 1000V / CAT III 600V, handheld measuring instrument

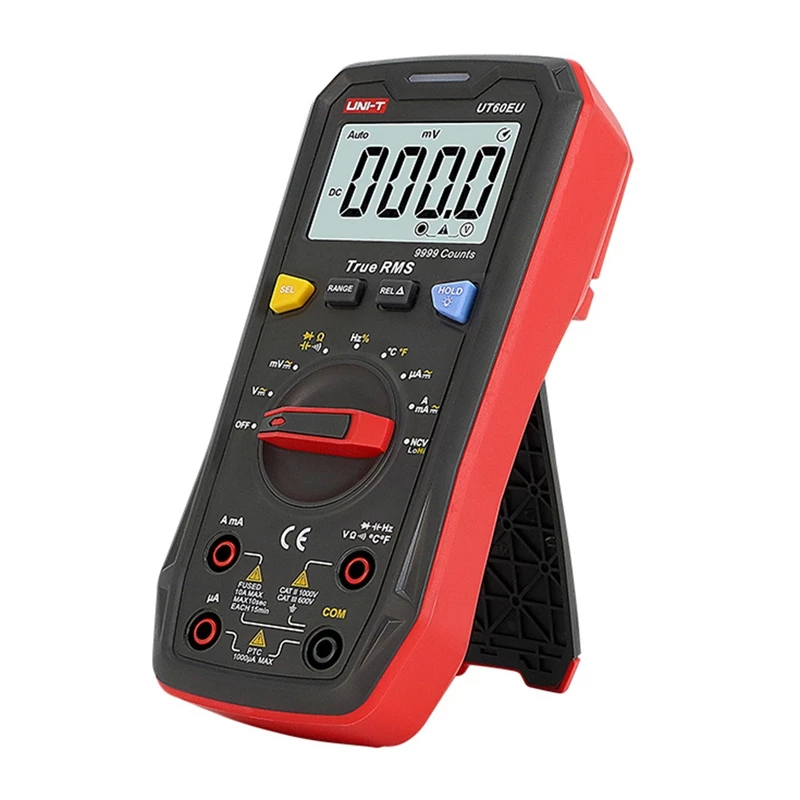

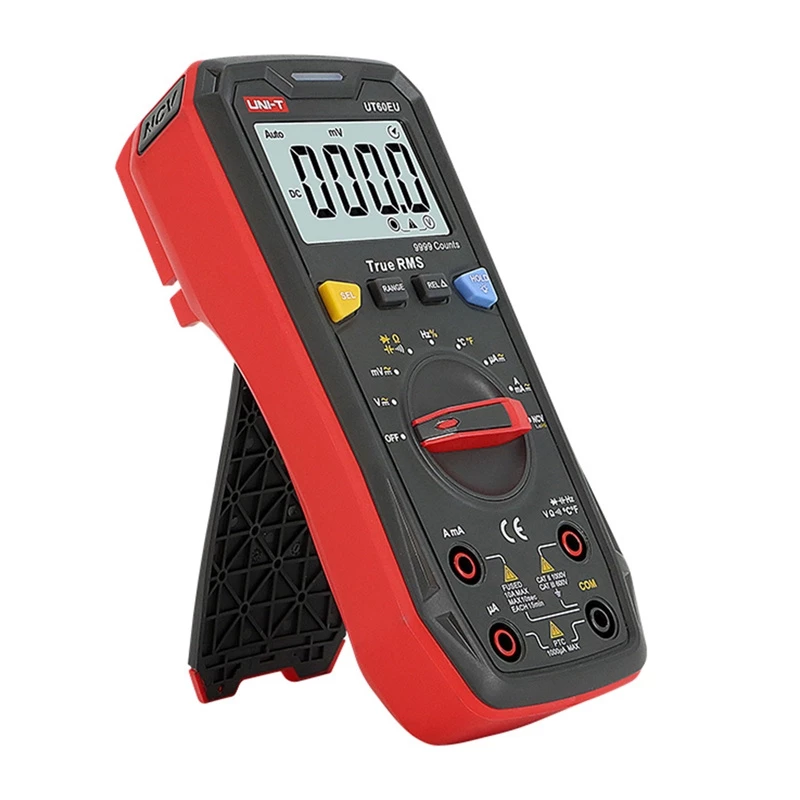

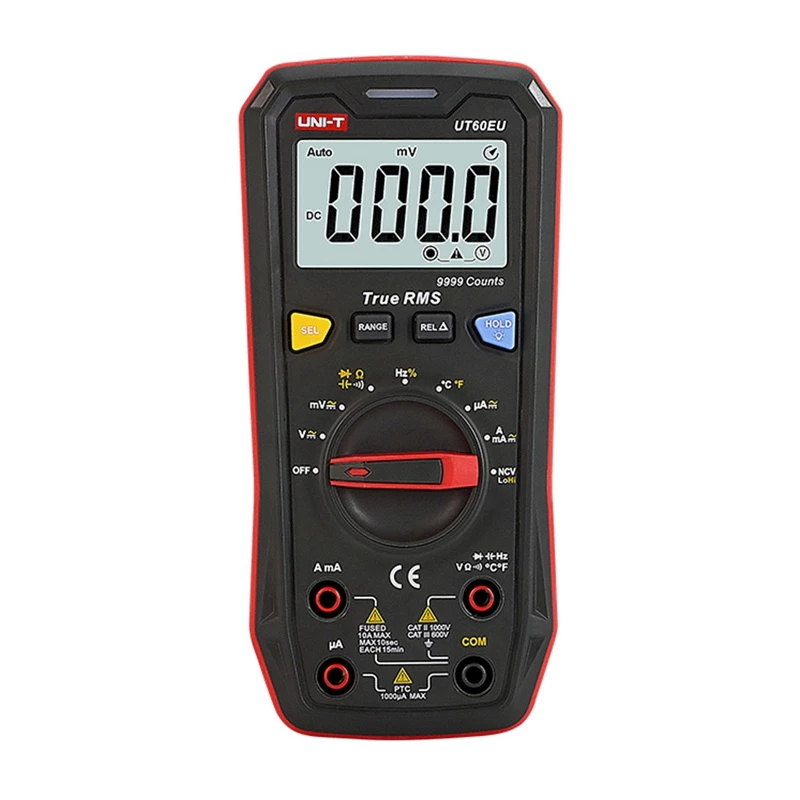

UNI-T UT60EU digital multimeter

The UNI-T UT60EU is designed for users who work in a wide variety of conditions - from workshops and industrial halls to electronic service and installation work in the field. Thanks to its accurate True RMS measurement, the UT60EU allows for reliable readings in both simple electrical circuits and environments with interference or nonlinear voltage waveforms. The device provides a resolution of 9999 counts, which means very precise measurement results even with small signal values. Its intuitive operation, backlit screen and robust housing make it perfect for the daily work of any professional who needs accurate and reliable measurements.

Wide range of measurements and high accuracy

The UT60EU supports measurements of AC and DC voltage up to 1000 V, current up to 10 A, and resistance up to 99.99 MΩ. Thanks to the True RMS function, the device provides accurate readings of pulsed power systems or inverters. Capacitor capacitance measurement goes up to 99.99 mF, and frequency can be measured from 99.99 Hz to 9.999 MHz. The multimeter also offers duty cycle and temperature measurements from -40°C to 1000°C.

Safety and additional utility features

The multimeter meets CAT II 1000V and CAT III 600V safety standards, and its rugged housing enhances drop and impact resistance. The UT60EU also features NCV (non-contact voltage detection), diode and continuity test with audible and visual indication, REL (relative measurement) function, data storage (Data Hold) and automatic shutdown after 15 minutes of inactivity. A three-color LED indicator shows power status and test results.

How to use

Before use, visually inspect the instrument and test leads for damage and verify battery condition. Select the appropriate measurement function and range if manual range selection is required, then connect the test leads to the correct input terminals and to the circuit under test. Observe polarity when measuring DC quantities and follow the safety markings on the device. Read the measurement from the display and disconnect the test leads when finished. When measuring high voltages or currents, follow safe working distances and use protective equipment as needed.

Recommendations

For reliable results, allow the meter to acclimate to the ambient temperature of the measurement location, and avoid measuring in excessively humid or dusty conditions. Use the True RMS function when testing variable-frequency drives, switching power supplies or other non-sinusoidal sources to obtain accurate AC readings. Replace batteries and inspect leads regularly to maintain measurement safety and accuracy.
