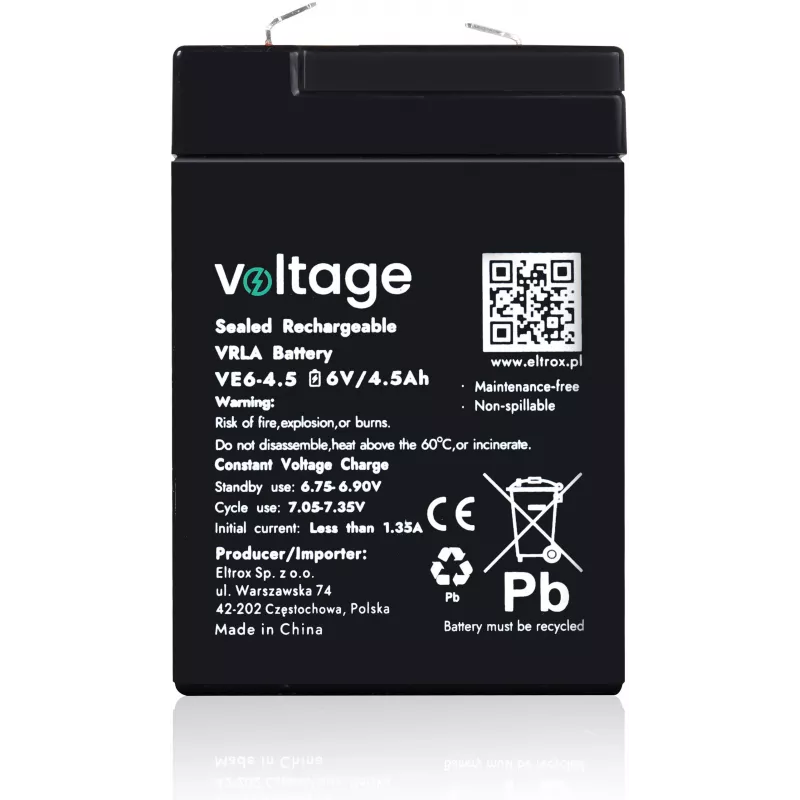

VOLTAGE AGM Battery 6V 4.5Ah VE6-4.5 (6-9 Years Lifespan)

The VOLTAGE VE6-4.5 is a high-quality AGM (Absorbent Glass Mat) battery designed for reliable standby and cyclic power applications. With a nominal voltage of 6V and a capacity of 4.5Ah (C20), this maintenance-free, spill-proof battery offers a design lifespan of 6-9 years, making it ideal for UPS systems, alarm systems, emergency lighting, medical devices, toys, and telecommunications.

Advantages

• Maintenance-free operation with no water refilling required
• Spill-proof and explosion-proof valve for safe use in any orientation
• Low self-discharge rate of less than 3% per month at 25°C
• Wide operating temperature range from -20°C to 60°C
• High discharge current capability up to 45A (5 seconds)
• Compliant with CE and RoHS standards

Suitable for

• UPS systems
• Alarm and security systems
• Emergency lighting
• Medical devices
• Toys and hobby applications
• Telecommunications equipment

Key specifications

• Battery Type: AGM, VRLA
• Nominal Voltage: 6V
• Nominal Capacity: 4.5Ah (C20)
• Design Lifespan: 6-9 years (EUROBAT General Purpose)
• Terminal Type: F1 (Faston Tab 187 / 4.75mm)
• Internal Resistance: Approx. 25 mΩ (at 25°C, full charge)
• Max Discharge Current: 45A (5 seconds)
• Max Charging Current: 1.35A
• Charging Voltage (Standby Use): 6.75 - 6.90V (at 25°C)
• Charging Voltage (Cyclic Use): 7.20 - 7.50V (at 25°C)
• Operating Temperature Range (Discharge): -20°C to 60°C
• Operating Temperature Range (Charge): 0°C to 50°C
• Operating Temperature Range (Storage): -20°C to 60°C
• Self-Discharge Rate: Less than 3% per month at 25°C
• Container Material: ABS
• Maintenance: Maintenance-free
• Safety Features: Spill-proof, explosion-proof valve
• Certifications: CE, RoHS

Recommendations

For optimal performance and longevity, charge the battery using a compatible charger with the recommended charging voltage. Store in a cool, dry place. Always follow manufacturer guidelines for installation and use.
