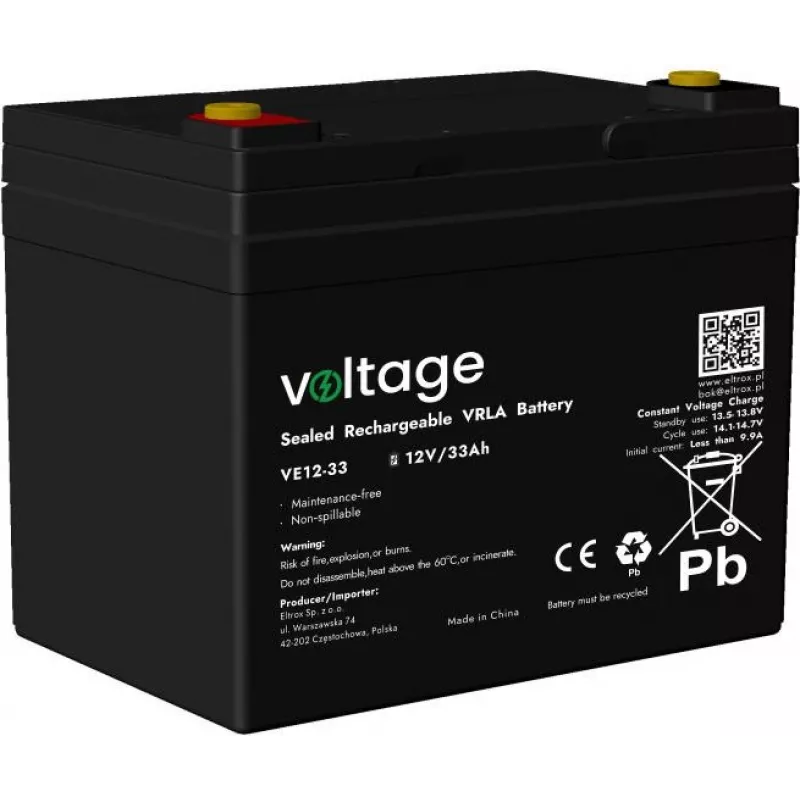

AGM Battery Voltage 12V 33Ah VE12-33 (Lifespan 6-9 years)

The Voltage VE12-33 is a high-quality VRLA AGM (Valve-Regulated Lead-Acid, Absorbent Glass Mat) battery designed for reliable backup power and cyclic applications. With a nominal voltage of 12V and a capacity of 33Ah (20-hour rate), it delivers consistent performance for UPS systems, solar installations, alarm systems, emergency lighting, and telecommunications. Its maintenance-free, spill-proof construction ensures safe operation in any orientation.

Advantages

Sealed AGM technology eliminates the need for water refilling and prevents acid leakage. The battery offers a long float life of 6-9 years (Eurobat Commercial standard) and low self-discharge of less than 3% per month at 25°C, making it ideal for standby applications. High discharge capability (330A for 5 seconds) supports demanding loads.

Suitable for

• UPS (Uninterruptible Power Supplies)
• Solar energy storage systems
• Alarm and security systems
• Emergency lighting
• Telecommunications equipment

Key specifications

• Battery Type: VRLA AGM (Sealed Lead-Acid)
• Nominal Voltage: 12V
• Nominal Capacity: 33Ah (20HR to 10.5V)
• Design Life: 6-9 years (float service)
• Terminal Type: F3 (T3) / M5 bolt
• Max Discharge Current: 330A (5 seconds)
• Internal Resistance: Approx. 8 mΩ (fully charged, 25°C)
• Float Charging Voltage: 13.5V - 13.8V (at 25°C)
• Cycle Charging Voltage: 14.4V - 14.7V (at 25°C)
• Max Charging Current: 9.9A (0.3C)
• Operating Temperature (Discharge): -20°C to 50°C
• Operating Temperature (Charge): -10°C to 50°C
• Operating Temperature (Storage): -20°C to 50°C
• Self-Discharge: <3% per month at 25°C
• Height with Terminals: 170 mm

Recommendations

For optimal performance and longevity, use a compatible smart charger with appropriate voltage settings. Ensure proper ventilation during charging. Store in a cool, dry place. Always follow manufacturer guidelines for installation and maintenance.
