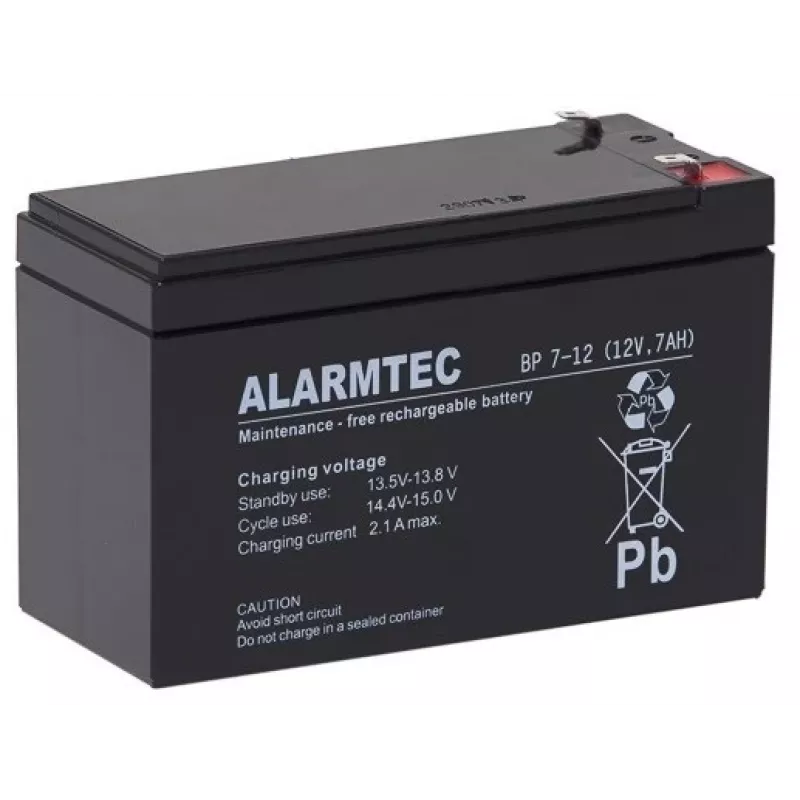

ALARMTEC BP 7-12 AGM Battery 12V 7Ah Sealed Lead Acid

The ALARMTEC BP 7-12 is a high-quality sealed lead acid (SLA) battery featuring AGM (Absorbent Glass Mat) technology. Designed for reliable backup power and cyclic applications, this 12V 7Ah battery offers maintenance-free operation and long service life.

Advantages

AGM technology ensures low internal resistance, excellent discharge performance, and no electrolyte leakage. The battery is maintenance-free, valve-regulated, and can be installed in any orientation. With a design life of 5 years (Eurobat classification), it provides dependable power for security systems, UPS, emergency lighting, and more.

Suitable for

• Alarm and security systems
• Uninterruptible power supplies (UPS)
• Emergency lighting
• Electronic cash registers
• Medical devices
• Telecommunications equipment

Key specifications

• Battery Type: Sealed Lead Acid (SLA) – AGM
• Nominal Voltage: 12V
• Nominal Capacity: 7Ah (C20 rate)
• Terminal Type: F1 (Faston Tab 4.75mm)
• Design Life: 5 years (Eurobat)
• Internal Resistance: Approx. 25 mΩ
• Max. Discharge Current: 105A (5 seconds)
• Float Charge Voltage: 13.5V – 13.8V (at 25°C)
• Cycle Charge Voltage: 14.4V – 15.0V (at 25°C)
• Operating Temperature (Discharge): -15°C to 50°C
• Operating Temperature (Charge): -15°C to 40°C
• Operating Temperature (Storage): -15°C to 40°C
• Self-Discharge Rate: Less than 3% per month (at 25°C)
• Container Material: ABS
• Maintenance: Maintenance-Free

Recommendations

For optimal performance and longevity, use a compatible charger with appropriate voltage settings. Store in a cool, dry place. Always follow manufacturer guidelines for installation and disposal.
