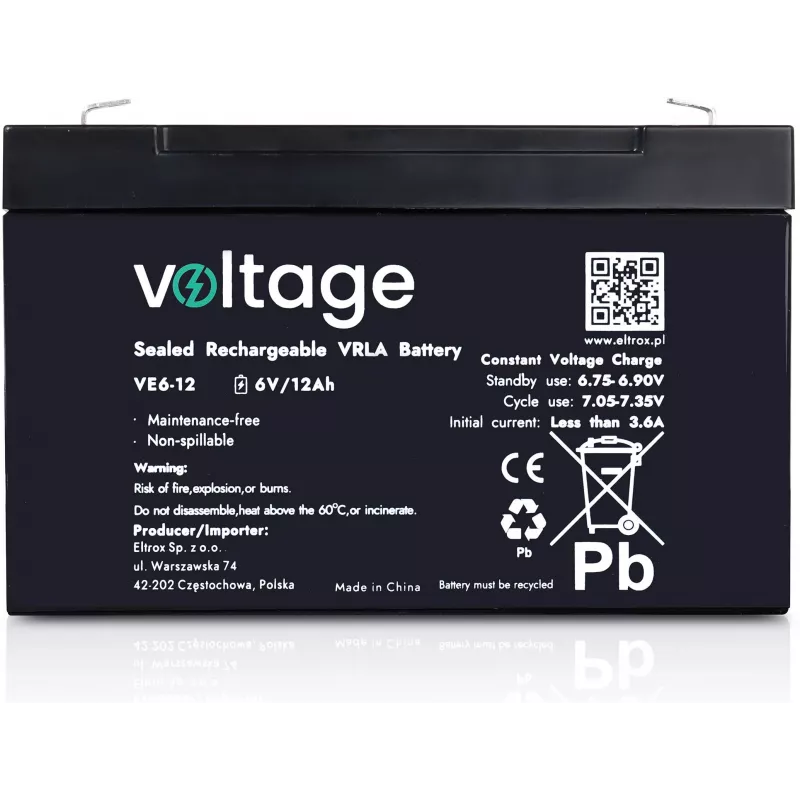

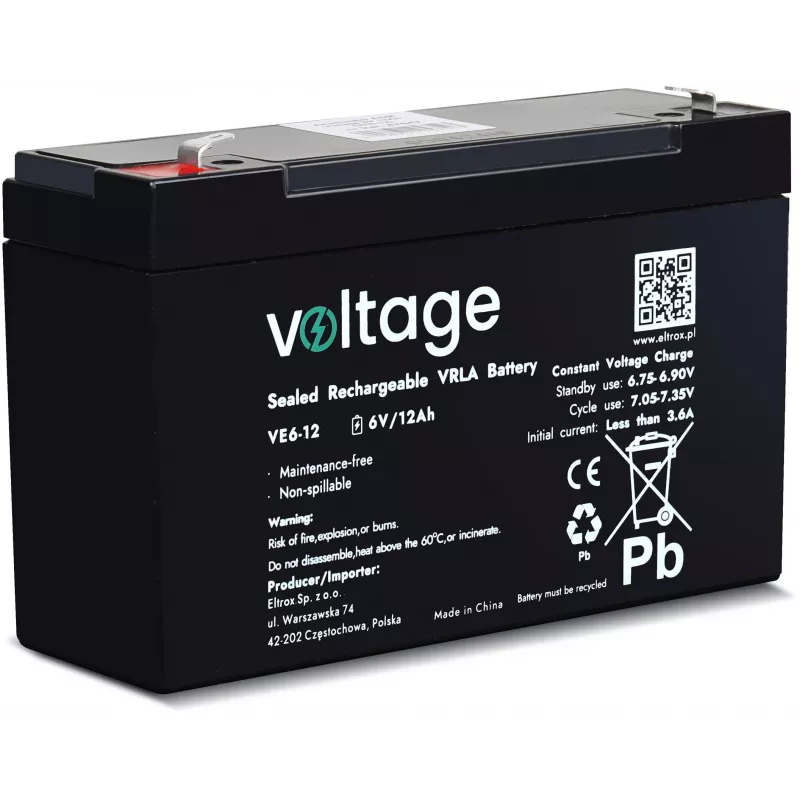

VOLTAGE AGM Battery 6V 12Ah VE6-12 (6-9 Years Life)

The VOLTAGE VE6-12 is a high-quality AGM (Absorbent Glass Mat) VRLA battery designed for reliable backup power and cyclic applications. With a nominal voltage of 6V and a capacity of 12Ah, this maintenance-free, sealed battery delivers consistent performance for UPS systems, alarm systems, emergency lighting, medical devices, and telecommunications. Its design life of 6-9 years ensures long-term dependability.

Advantages

Sealed and maintenance-free construction eliminates the need for water refilling. The AGM technology immobilizes the electrolyte in glass mats, providing low internal resistance and high discharge rates. The battery is valve-regulated, ensuring safe operation in any orientation (except inverted). With a self-discharge rate of less than 3% per month at 25°C, it retains charge well during storage.

Suitable for

• UPS (Uninterruptible Power Supplies)
• Alarm and security systems
• Emergency lighting
• Medical devices
• Telecommunications equipment
• Toys and hobby applications

Key specifications

• Battery Type: AGM VRLA
• Nominal Voltage: 6V
• Nominal Capacity: 12Ah (20HR to 1.75V/cell)
• Design Life: 6-9 years (Eurobat General Purpose)
• Terminal Type: F2 (Faston Tab 250 - 6.35mm)
• Internal Resistance: Approx. 12 mΩ
• Max. Discharge Current: 120A (5 seconds)
• Max. Charge Current: 3.6A
• Float Charge Voltage: 6.75 - 6.90V (at 25°C)
• Cycle Use Voltage: 7.20 - 7.50V (at 25°C)
• Operating Temperature Range (Discharge): -15°C to 50°C
• Operating Temperature Range (Charge): -15°C to 40°C
• Self-Discharge Rate: Less than 3% per month at 25°C
• Construction: Sealed, Maintenance-Free, Valve Regulated
• Electrolyte: Immobilized in Absorbent Glass Mat
• Case Material: ABS Plastic
• Certifications: CE, ISO9001, ISO14001

Recommendations

For optimal performance and longevity, use a compatible charger with the recommended float or cycle voltage. Store in a cool, dry place. Ensure proper ventilation during charging. Always follow manufacturer guidelines for installation and disposal.
