Vivolink VL120016R AV extender AV receiver Black

The Vivolink VL120016R is a compact HDBaseT AV receiver that extends video and control signals over a single CAT5e/6 cable. It supports 4K and 1080p video transmission — up to 40 m (131 ft) for 4K and up to 70 m (230 ft) for 1080p — and accepts 24 V power with 100–240 V AC input. The unit is designed for professional wired AV setups and features a small footprint (115 mm × 84 mm × 16.2 mm) and black housing for easy integration.

Advantages

The VL120016R provides reliable long‑reach video distribution with HDBaseT technology while preserving full control capabilities via CEC, bidirectional RS232, and IR. Its one‑way Power over HDBaseT (PoH) function simplifies installation when a compatible transmitter provides power. Compact dimensions and lightweight design make the receiver easy to mount in racks or behind displays.

Suitable for

• Extending HDMI sources to distant displays over CAT5e/6 cabling
• Professional AV installations in conference rooms, classrooms, and digital signage
• Setups requiring remote control via CEC, RS232 or IR

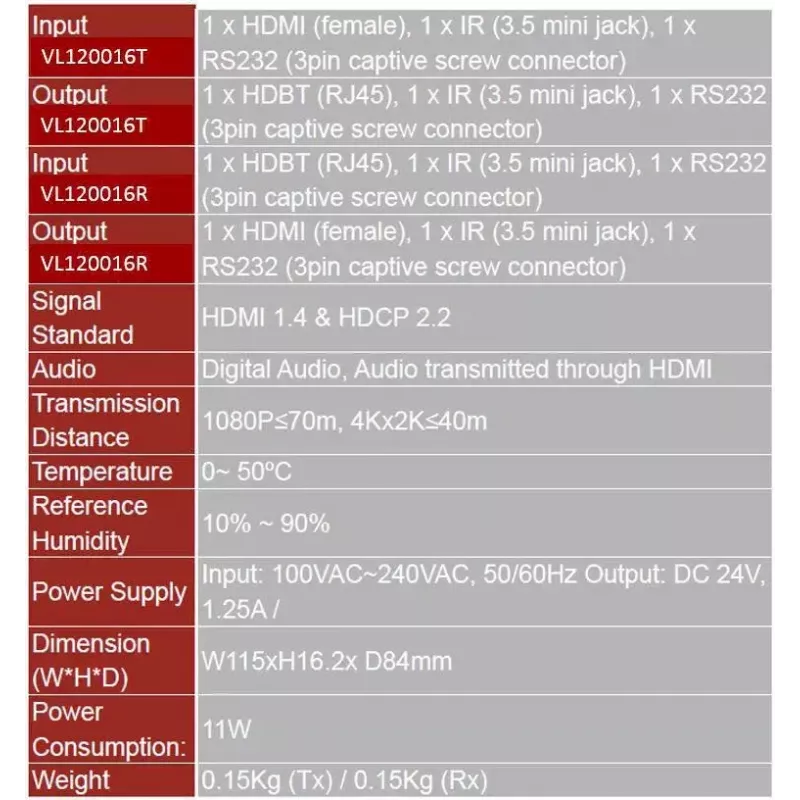

Key specifications

• Model: VL120016R
• Video support: 4K up to 40 m (131 ft); 1080p up to 70 m (230 ft) over single CAT5e/6
• Control: CEC, bidirectional RS232, IR
• Power: 24 V (AC input 100–240 V)
• Dimensions: 115 × 84 × 16.2 mm
• Weight: 0.208 kg
• Colour: Black

How to use

Connect the VL120016R receiver to a compatible HDBaseT transmitter using a single CAT5e or CAT6 cable. Attach the HDMI display to the receiver’s HDMI output and connect control lines (RS232/IR) or enable CEC as required by your source and display. Supply power via the unit’s 24 V input or allow a compatible transmitter to provide PoH if supported. Ensure cable runs do not exceed the specified distances for the chosen resolution.

Recommendations

For optimal performance use high‑quality, shielded CAT6 cable for longer runs, verify that both transmitter and receiver firmware are up to date, and note that this receiver is not compatible with the HDBaseT splitter model VLHDBSP1X4V2.
