Video Switch HDMI DeLOCK 87619

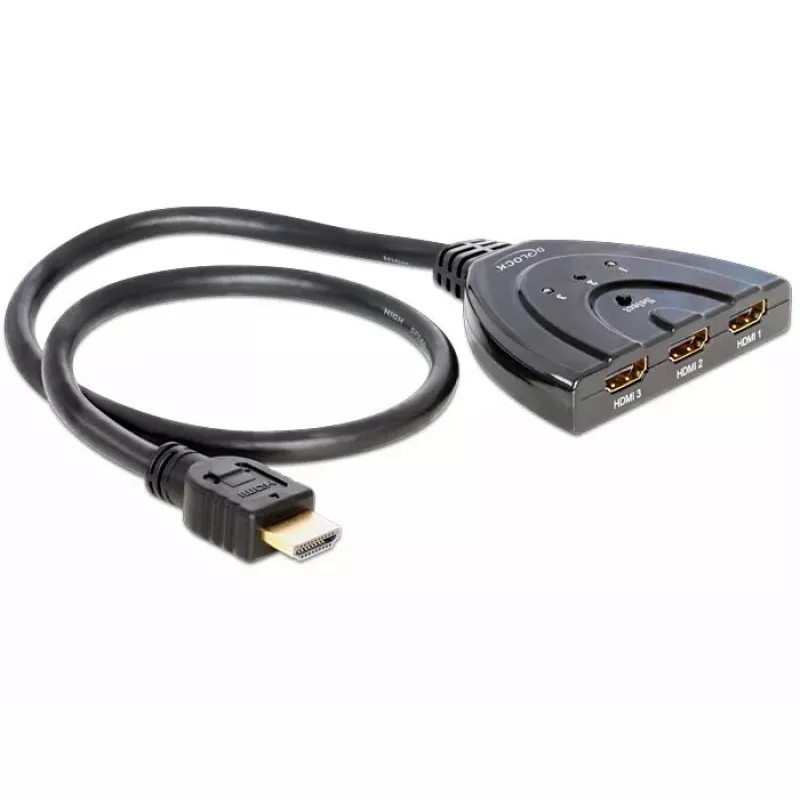

The DeLOCK 87619 HDMI video switch is a manual bidirectional device for routing HDMI signals between sources and displays. It supports two main modes: connect up to three HDMI source devices to a single display and switch which source is shown, or connect one HDMI source to up to three displays and select which display receives the signal. The switch supports resolutions up to 1920 x 1080 (Full HD) and comes in a compact black housing with a 0.6 m cable.

Advantages

The switch provides a simple mechanical button for fast selection between inputs or outputs without software configuration. Its bidirectional design adds flexibility for use as either a 3-to-1 (multiple sources to one display) or 1-to-3 (one source to multiple displays, one active at a time) switch. The compact black casing and short integrated cable make it easy to place near equipment and maintain a tidy setup.

Suitable for

• Home entertainment systems to connect multiple players (Blu-ray, game console, set-top box) to one TV
• Small offices or meeting rooms to switch a laptop between different projectors or displays
• Retail or demo setups where one source needs to be shown on different screens at different times

Key specifications

• Model: DeLOCK 87619
• Video port type: HDMI
• Resolution support: up to 1920 x 1080 (Full HD)
• Cable length: 0.6 m
• Colour: Black
• Operation: Manual push-button, bidirectional (3-to-1 or 1-to-3)

How to use

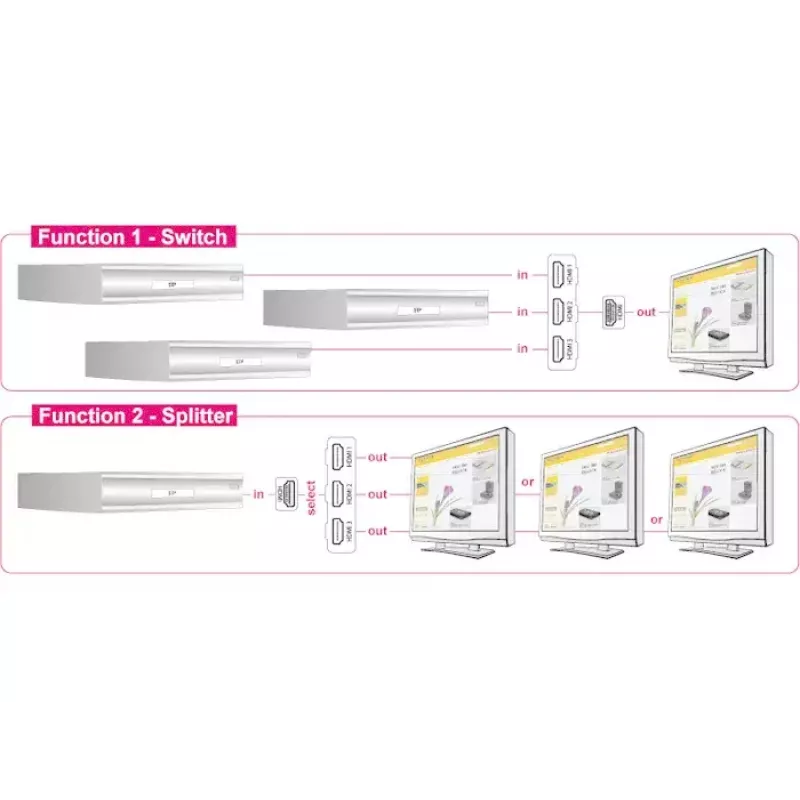

Connect the switch according to the chosen mode: for multiple sources to one display, plug up to three HDMI source devices into the switch’s input ports and connect the switch output to the display’s HDMI input. For one source to multiple displays, connect the source to the switch and connect up to three displays to the switch outputs. Press the front button to select which input or output is active. Only one output can be active at a time in 1-to-3 mode; simultaneous multi-screen output is not supported.

Recommendations

Use high-quality HDMI cables for best signal integrity and keep cable runs within recommended lengths for 1080p signals. If switching frequently between devices, allow a few seconds for displays and source devices to perform any required HDMI handshake after changing the active connection.
