video splitter ROLINE 14.01.3585

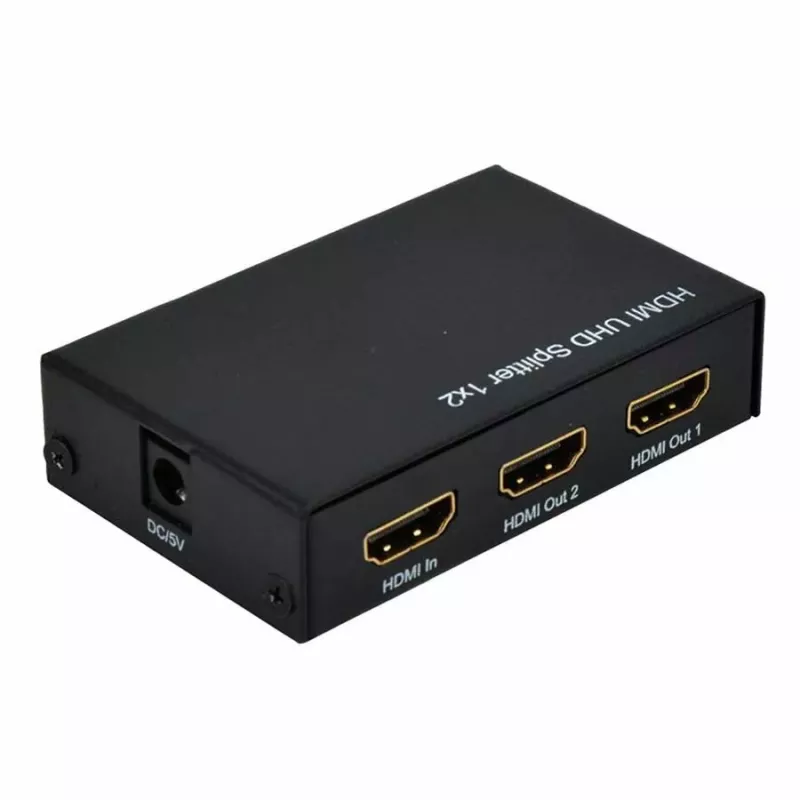

The ROLINE 14.01.3585 HDMI video splitter duplicates a single HDMI source to two HDMI displays simultaneously. It supports resolutions up to 3840 x 2160 (4K) and offers a compact black enclosure with HDMI input and two HDMI outputs. The unit is mains-powered (5V DC, 2A) and connects via standard HDMI cables for straightforward integration into home theatre, presentation or gaming setups.

Advantages

The splitter provides two identical HDMI outputs from one HDMI input, supporting a wide range of resolutions including 480i, 480p, 720i, 720p, 1080i, 1080p and 2160p. It is compatible with VGA/SVGA/XGA/UXGA signal timings where applicable, supports 3D formats, and requires no software installation. The device is plug & play, easy to install and comes with the required 5VDC 2A power supply.

Suitable for

• Home theatre systems to mirror video to multiple screens
• Business presentations and meeting rooms
• Retail displays and signage
• Gaming setups where the same output is needed on two monitors or TVs

Key specifications

• Brand: ROLINE
• Model / MPN: 14.01.3585
• EAN: 7611990145911
• Video port type: HDMI
• Connectors: 1 × HDMI input, 2 × HDMI outputs (total ports: 3)
• Maximum resolution: 3840 × 2160 pixels (4K)
• Supported resolutions: 480i, 480p, 720i, 720p, 1080i, 1080p, 2160p @60Hz (per source capabilities)
• Supported signal formats: VGA, SVGA, XGA, UXGA, 3D
• Power supply: 5V DC, 2A (included)
• Colour: Black

How to use

Connect your HDMI source (for example a Blu‑ray player, set‑top box or PC) to the HDMI input on the ROLINE splitter. Use standard HDMI cables to connect each of the two HDMI outputs to the target displays. Attach the included 5V DC, 2A power adapter and power on the unit. The device is plug & play and will duplicate the input signal to both outputs automatically; verify display resolution settings on the source device if the output does not match the expected resolution.

Recommendations

For best results, use high-quality HDMI cables rated for the required resolution (4K) and ensure the source device is configured to a supported output resolution. If displays differ in supported resolutions, set the source to the lowest common supported resolution to ensure both screens show signal correctly.
