TV mount ART AR-11 Black 70 inch 100 kg capacity 42 inch minimum

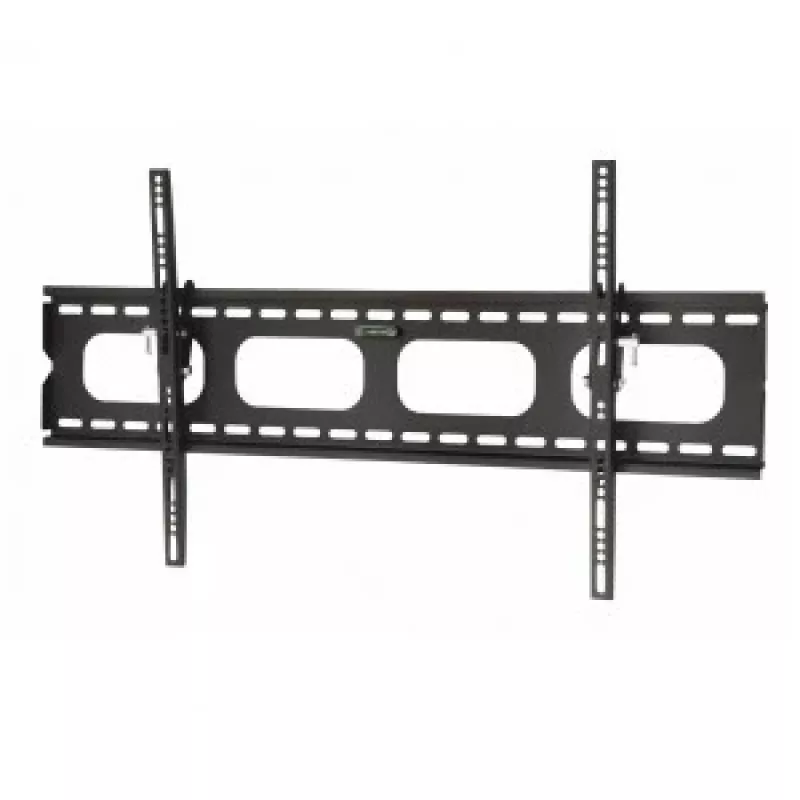

The ART AR-11 Black TV mount supports flat-panel screens from 42" up to 70" with a maximum load capacity of 100 kg. Designed for compact wall installation, the bracket holds the display at a shallow profile with a maximum distance from the wall of 3.8 cm and a tilt adjustment from -12° to 0°. Compatibility covers a wide range of VESA patterns from 200 x 200 mm to 800 x 400 mm, allowing use with many contemporary televisions. The mount has a matte black finish intended to blend with modern interiors while providing a stable mounting platform for medium to large screens.

Advantages

The mount offers a high payload capacity while remaining low-profile, combining strength and discreet appearance. Its wide VESA compatibility reduces the need to check multiple fitment standards and simplifies installation across different TV models. The tilt range enables modest vertical adjustment to reduce glare or adjust viewing angle without additional complex mechanisms. Constructed to support up to 100 kg, the bracket is suitable for heavier flat-panel TVs that require a sturdy fixed wall attachment.

Suitable for

• Mounting LED, LCD or OLED TVs between 42" and 70"
• Locations requiring a shallow wall clearance (living rooms, conference rooms, kitchens)
• Installations where a high weight capacity is necessary (heavier large-screen TVs)

Key specifications

• Screen size compatibility: 42"–70"
• Maximum load capacity: 100 kg
• VESA compatibility: 200 x 200 mm up to 800 x 400 mm

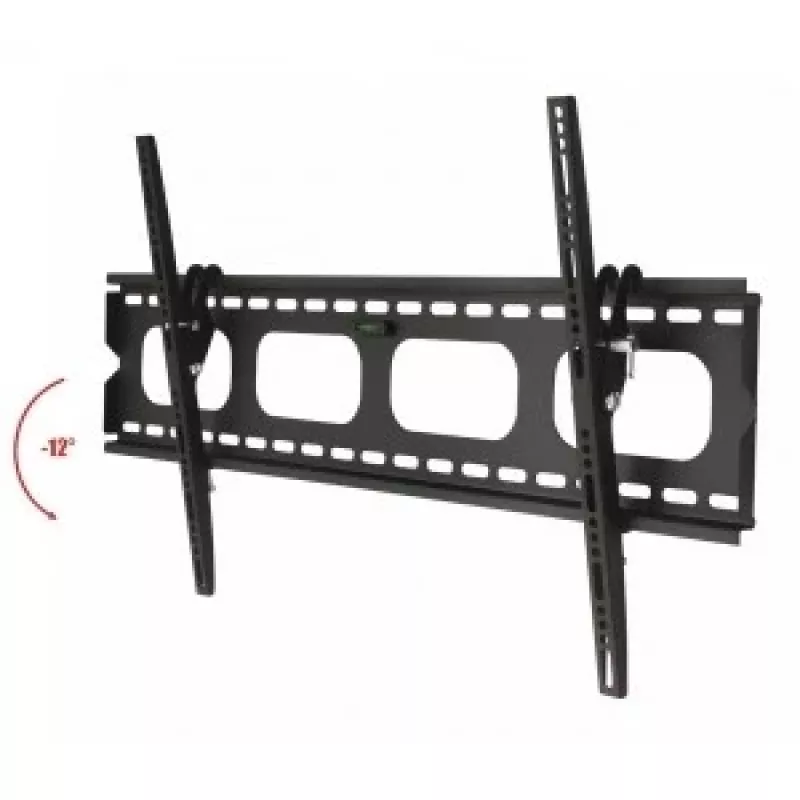

• Tilt range: -12° to 0°
• Maximum wall distance: 3.8 cm
• Finish: black

How to use

Choose a suitable mounting location on a solid wall surface and verify the wall structure can support the combined weight of the bracket and TV. Confirm the TV’s VESA pattern is within the supported range, then attach the mount plate to the TV using appropriate screws and spacers for the TV model. Secure the wall plate to the wall with appropriate anchors or bolts, align the bracket, and hang the TV on the wall plate. Use the tilt adjustment to set the desired viewing angle and tighten fasteners to lock the position. Follow the included instructions and use recommended fasteners for safe installation.

Recommendations

Use suitable wall anchors or bolts matched to the wall material and total load. For safety, two people are recommended when lifting and attaching the TV to the mount. Periodically check mounting hardware and fasteners for tightness, especially after the first 24–48 hours of use.
