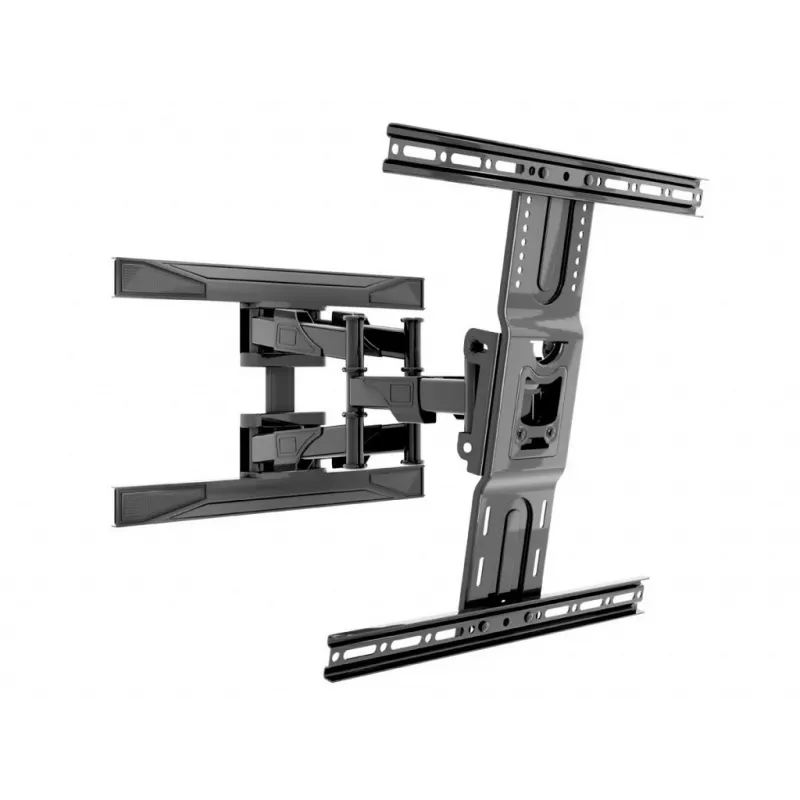

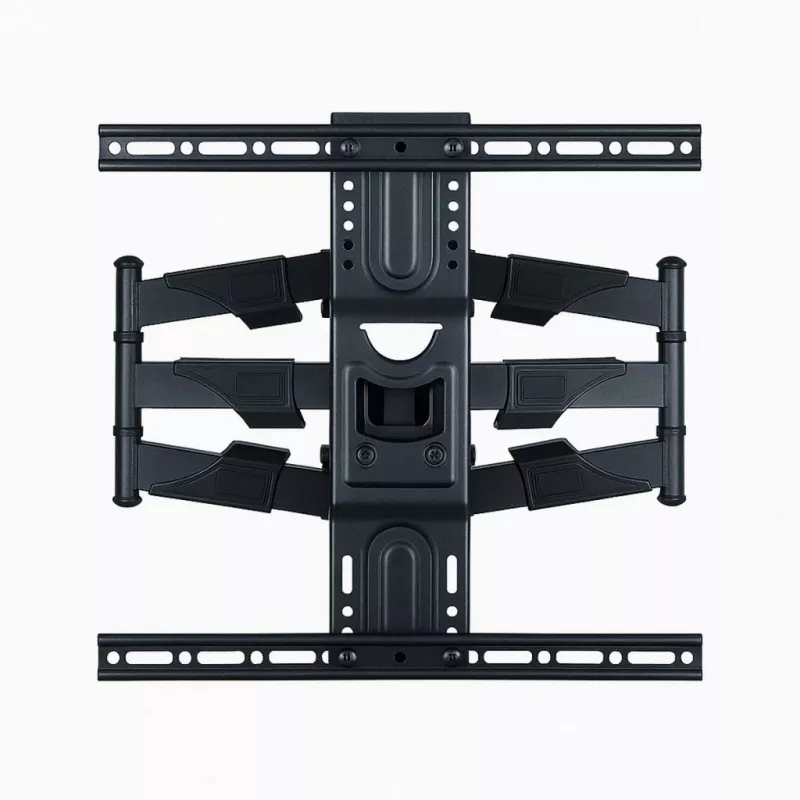

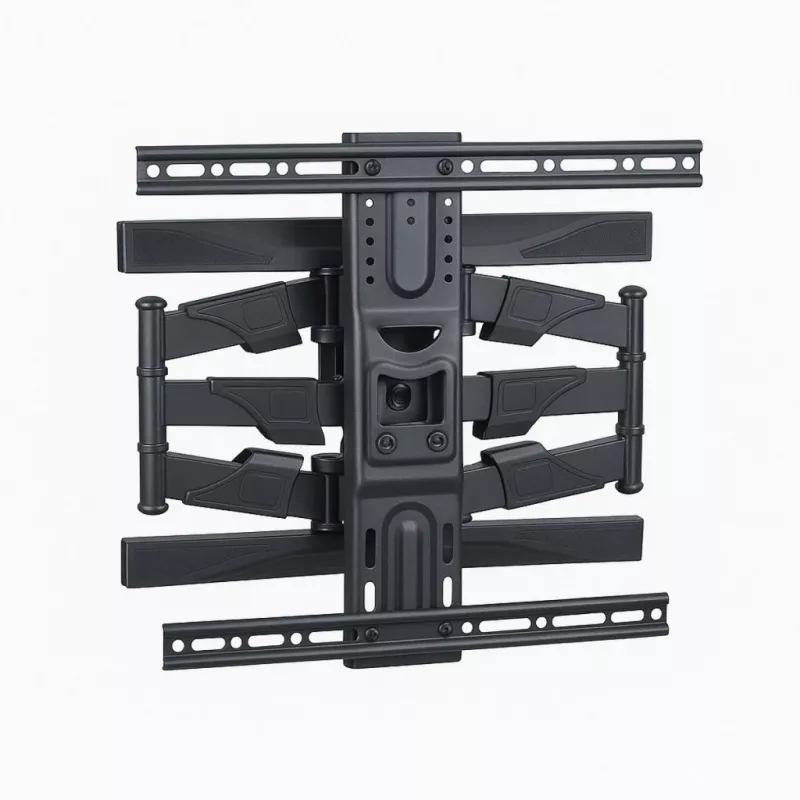

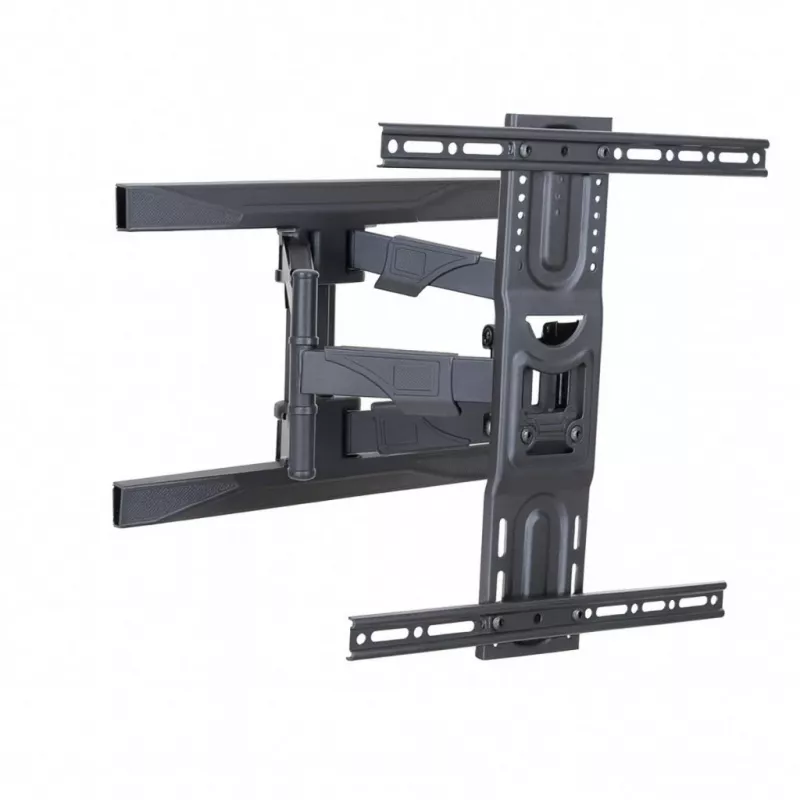

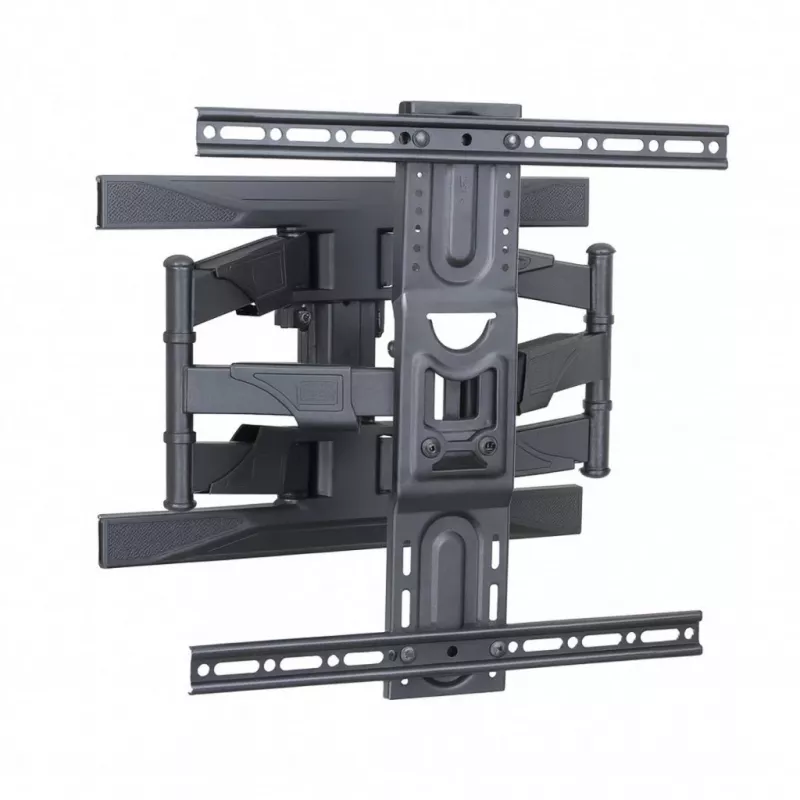

TV wall mount ART for LCD/LED 40–75 inch up to 45 kg, tilt & swivel, height 52–380 mm, max VESA 600x400

Wall mount for 40–75" LCD/LED TVs by ART supporting up to 45 kg and VESA up to 600×400 mm. Constructed from steel and finished in black, the mount offers tilt adjustment and a 160° swivel to improve viewing angles. Height is adjustable between 52 and 380 mm. The product is RoHS compliant and supplied with a mounting kit and user manual for installation.

Advantages

The steel housing provides durable support for single-screen installations while the tilt and 160° swivel functions allow flexible positioning. Compatibility with VESA up to 600×400 mm and a maximum load of 45 kg ensures it fits most 40–75" LCD/LED TVs. Supplied mounting kit and manual simplify installation, and RoHS compliance addresses basic sustainability and safety requirements.

Suitable for

• Mounting a single 40–75" LCD/LED TV on a wall
• Rooms requiring adjustable viewing angles (tilt and swivel)
• Installations where a VESA 600×400 mounting pattern is needed

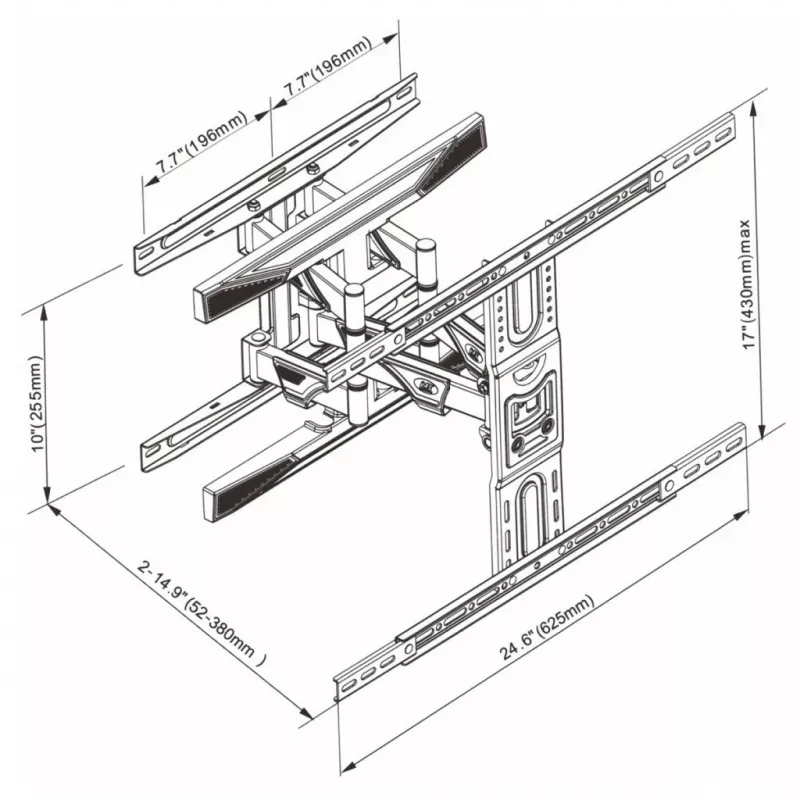

Key specifications

• Compatible screen size: 40–75" (101.6–190.5 cm)
• Maximum weight capacity: 45 kg
• Maximum VESA pattern: 600 × 400 mm
• Height adjustment range: 52–380 mm
• Swivel: yes — 160° swivel angle
• Tilt adjustment: yes
• Material: steel
• Color: black

How to use

Determine the desired mounting location on the wall and verify that the wall structure can support the combined weight of the mount and TV. Use the supplied mounting kit and follow the user manual to attach the mount to the wall and fix the TV using the appropriate VESA holes. Adjust height within the 52–380 mm range, set the tilt, and swivel the screen up to 160° to achieve the required viewing angle. Ensure the TV weight does not exceed 45 kg and that the VESA pattern matches or is smaller than 600×400 mm.

Recommendations

Do not exceed the manufacturer’s recommended maximum weight. Verify wall strength and use suitable anchors for the wall type before installation.
