Tuya HS084097

Tuya HS084097

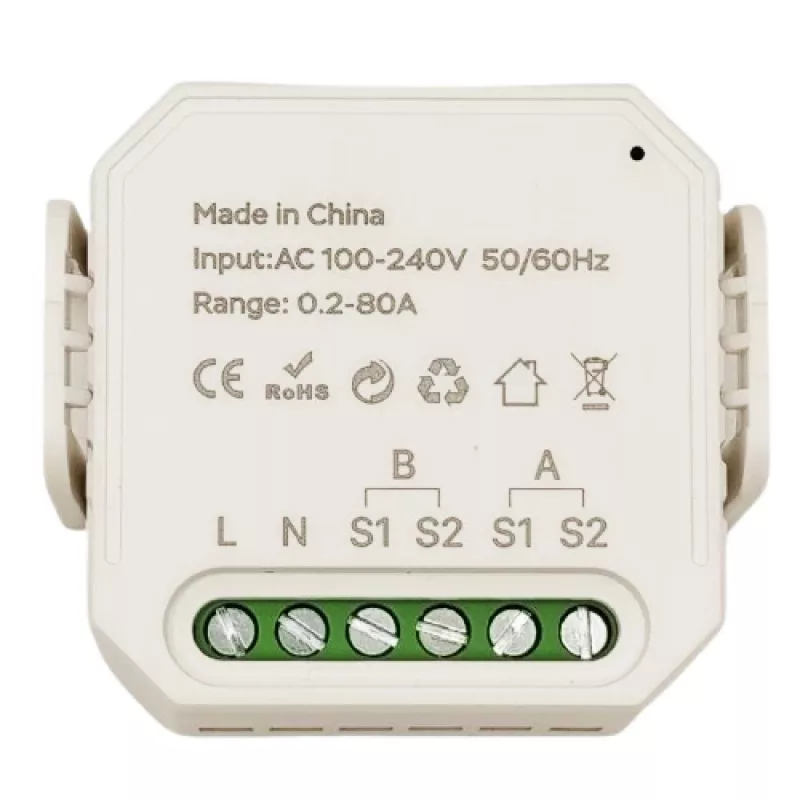

Smart energy meter, 2-channel, 80A, Wi-Fi, Tuya, with two CT current-measuring sensors. This advanced, compact dual-channel smart energy meter is designed to accurately monitor energy consumption across two separate circuits. Ideal for single-phase systems with two independent branches, or for partial monitoring of a three-phase system (e.g. two of the three phases). The device measures voltage, current, power and energy consumption for each of the two channels separately. Current measurement up to 80A per channel ensures accurate load monitoring. It uses two 10 mm split-core CT current-measuring modules, allowing quick, convenient installation without interrupting the power supply. Note: during installation, make sure the circuit measured by the CT sensor is on the same phase as the phase powering the module itself; otherwise the measurement data may be inaccurate or unstable. The device connects via the Tuya smart-home app, which allows real-time energy monitoring, history review and analysis. It works over a 2.4GHz Wi-Fi network and is compatible with Android and iOS devices. Voice control is supported via Amazon Alexa and Google Assistant. The device supports smart automation through the Tuya platform: when power, voltage or current on one of the channels reaches a set threshold, the system can automatically switch another Tuya-compatible device (e.g. a relay) on or off, enabling automated load management, energy saving or safety systems. Features a LED indicator and a pairing button. Compact, lightweight and easy to mount in distribution boards. Supplied with a bracket for DIN 35 mm rail or wall mounting.

Specifications

• Size: 10 mm

Genuine Tuya product — MPN: HS084097 · EAN: 9990001084097.
