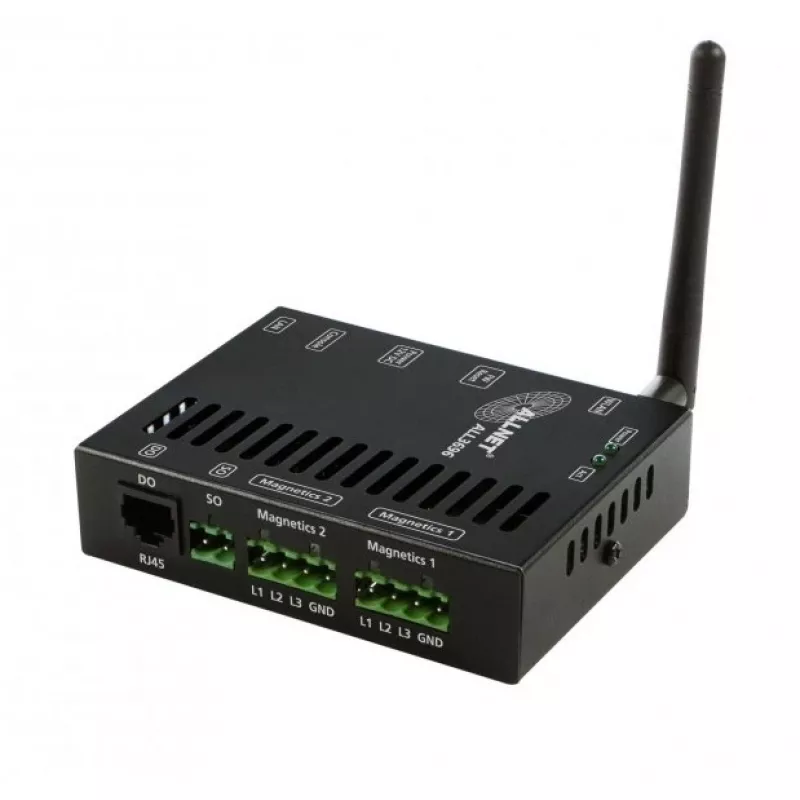

Electric meter ALLNET ALL3696 Black

The ALLNET ALL3696 electric meter in black is a compact network-capable device designed for real-time monitoring of electrical energy consumption. Operating at 2400 MHz and supporting common network protocols, it enables remote reading and integration with IT systems. The meter accepts a wide AC input range and fits into confined installation spaces thanks to its small footprint, making it suitable for residential, commercial, or small industrial environments where continuous energy monitoring is required.

Advantages

The ALLNET ALL3696 supports multiple communication standards including HTTP/HTTPS and TCP/IP for straightforward integration into existing networks. Time synchronization via SNTP and secure remote access through SSH help maintain accurate records and controlled administration. Its broad input voltage compatibility and standard AC frequency support ensure stable operation across different electrical installations. The compact dimensions make it easy to mount or install in panel cutouts or on DIN rails where space is limited.

Suitable for

• Remote energy monitoring in homes and apartments
• Power consumption tracking in offices and small commercial sites
• Integration with building management systems and energy dashboards
• Usage logging and remote alerts for facility managers

Key specifications

• Operating frequency: 2400 MHz
• Supported network protocols: HTTP, HTTPS, TCP/IP, SNTP, SMTP, SSH
• Input voltage range: 100–240 V AC
• AC input frequency: 50–60 Hz
• Dimensions (W × D × H): 155 mm × 28 mm × 26 mm

How to use

Install the meter in a suitable location with access to the mains supply and network connection. Connect the device to the AC supply following local electrical regulations and ensure secure grounding. Configure network settings through the device web interface using HTTP or HTTPS, and set time synchronization via SNTP to keep logs accurate. Enable SMTP or other alert mechanisms if remote notifications are required, and secure administrative access using SSH where available. Verify measurements against a reference to confirm correct installation.

Recommendations

Place the meter where it can be protected from direct moisture and excessive heat. Use HTTPS for configuration and enable SSH for administrative tasks to reduce the risk of unauthorized access. Regularly back up configuration and export consumption logs for long-term analysis.
