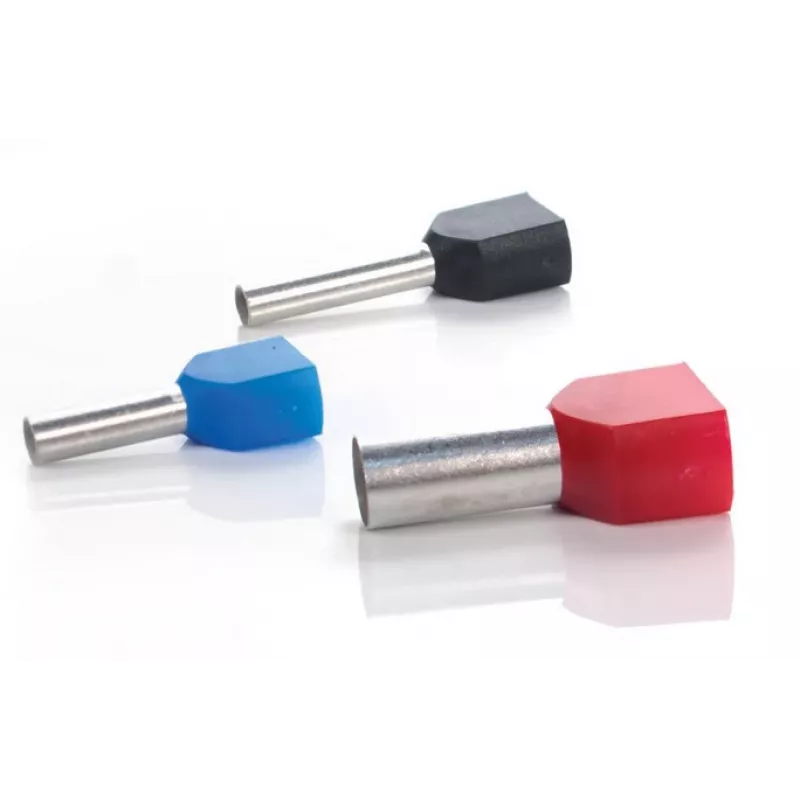

TRYTYT Insulated Twin Ferrule 2x2.5mm² Blue DUID-2x2,5-10NB (100 pcs.)

The TRYTYT DUID-2x2,5-10NB is a high-quality insulated twin ferrule designed for secure and reliable termination of two wires in electrical installations. Made from tin-plated electrolytic copper with a polypropylene insulation sleeve, this ferrule ensures excellent conductivity and durability. The funnel-shaped insulation flange facilitates easy wire insertion, while the blue color coding aids in quick identification. Suitable for use in control panels, switchgear, and terminal blocks, this pack contains 100 pieces for professional wiring tasks.

Advantages

• Twin design for simultaneous termination of two wires
• Tin-plated copper conductor ensures low resistance and corrosion resistance
• Polypropylene insulation provides high temperature resistance (-40°C to +105°C)
• Funnel-shaped entry for easy wire insertion
• RoHS compliant and UL94 V-2 rated for safety

Suitable for

• Electrical wiring and control panels
• Switchgear and distribution boards
• Terminal block connections
• Industrial automation and machinery

Key specifications

• Product Type: Insulated Twin Ferrule
• Wire Cross-Section: 2 x 2.5 mm²
• Color: Blue
• Quantity per Pack: 100 pieces
• Metal Tube Length: 10 mm
• Total Length: ~16 mm
• Inner Diameter of Metal Tube: ~4.5 mm
• Outer Diameter of Insulation: ~6.5 mm
• Temperature Resistance: -40°C to +105°C
• Voltage Rating: Max. 600V
• Flammability Rating: UL94 V-2
• Standard Compliance: RoHS Compliant

Recommendations

For optimal performance, use with a standard ferrule crimping tool designed for twin ferrules. Ensure proper stripping length and crimp pressure to achieve a secure connection.
