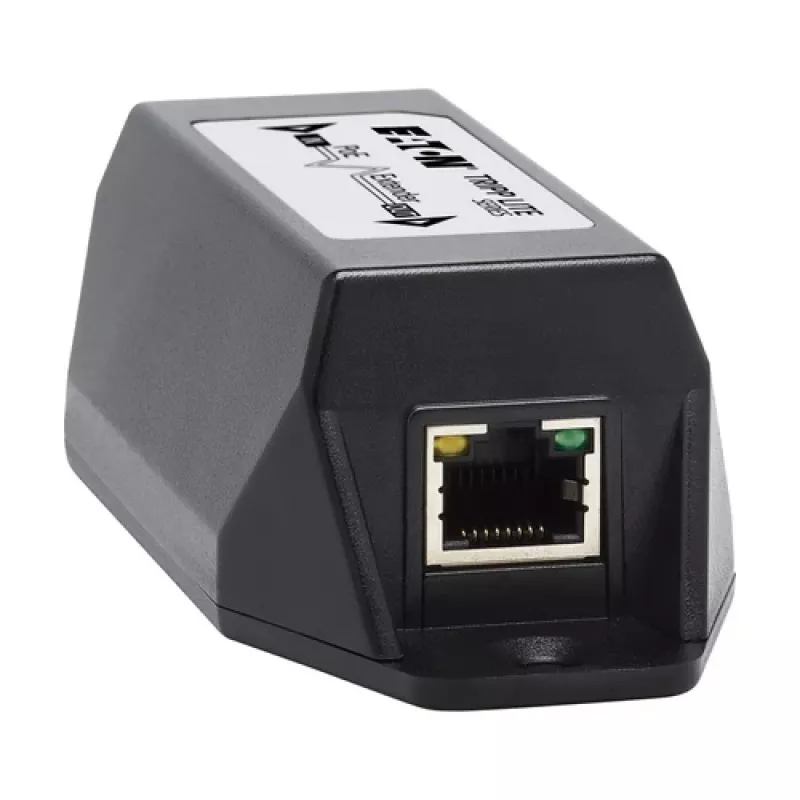

Tripp Eaton Tripp Lite Series Gigabit Ethernet PoE/PoE+ Extender - Cat5e/6/6a, RJ45, IEEE 802.3at/af, 30W, 1 Port, 328 ft. (100 m)

The Tripp Eaton Tripp Lite Series Gigabit Ethernet PoE/PoE+ Extender extends your network and Power over Ethernet (PoE) signals up to 100 meters (328 feet) over Cat5e/6/6a cabling. This compact, wall-mountable extender is ideal for expanding PoE-powered devices such as IP cameras, wireless access points, and VoIP phones beyond the standard 100-meter Ethernet limit.

Advantages

Extend both data and power simultaneously without additional power sources. Plug-and-play installation with no configuration required. Rugged metal housing ensures durability in demanding environments. Supports IEEE 802.3af/at PoE standards for compatibility with a wide range of devices.

Suitable for

• Extending PoE cameras in surveillance systems
• Deploying wireless access points in large areas
• Connecting VoIP phones in remote locations
• Industrial and commercial network installations

Key specifications

• Product Type: PoE/PoE+ Extender
• Ethernet Speed: Gigabit Ethernet (10/100/1000 Mbps)
• PoE Standard: IEEE 802.3af/at (PoE/PoE+)
• Max PoE Power Output: 30W
• Max Extension Distance: 100 m (328 ft.)
• Compatible Cable Types: Cat5e, Cat6, Cat6a
• Connector Type: RJ45
• Number of Ethernet Ports: 2 (1 Input, 1 Output)
• Data Transfer Rate: 1 Gbps
• Power Input: PoE (from upstream PSE)
• Power Output: PoE/PoE+ (to downstream PD)
• Plug and Play: Yes
• Housing Material: Metal
• LED Indicators: Power, PoE, Link/Activity
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Relative Humidity: 10% to 90% Non-Condensing
• Mounting Type: Wall-mountable
• Protection Features: Overcurrent, Overvoltage, Short-circuit protection

Recommendations

This extender is a reliable solution for extending PoE networks beyond the standard distance. Its metal housing and protection features make it suitable for both indoor and outdoor installations when placed in a weatherproof enclosure.
