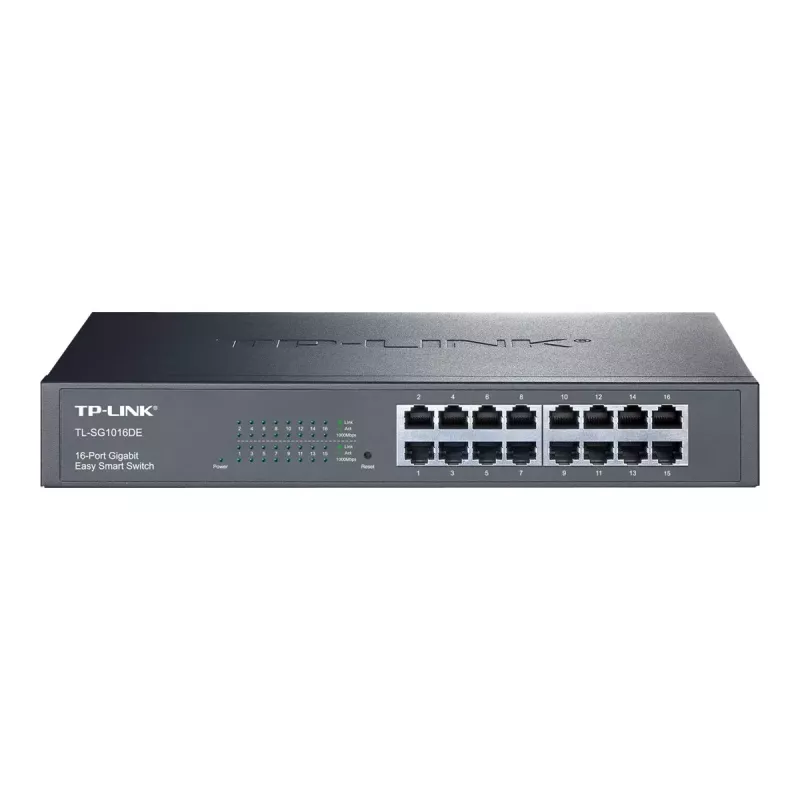

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch

The TP-Link TL-SG1016DE is a 16-port Gigabit Easy Smart Switch designed for small and medium businesses seeking an affordable, manageable network solution. It provides 16 10/100/1000 Mbps ports with a switching capacity of 32 Gbps and a packet forwarding rate of 23.8 Mpps, ensuring smooth data transfer for bandwidth-intensive applications. This fanless metal switch supports VLAN, QoS, IGMP snooping, and link aggregation, making it ideal for segmenting traffic, prioritizing critical data, and optimizing network performance. With rack-mountable 1U design and green technology (IEEE 802.3az EEE), it offers energy efficiency without compromising functionality.

Advantages

Easy web-based management via GUI or utility, port-based and tag-based VLAN for network segmentation, QoS with 4 priority queues for traffic prioritization, link aggregation for increased bandwidth, IGMP snooping for multicast optimization, fanless operation for silent environment, and metal housing for durability.

Suitable for

• Small and medium businesses requiring managed switching
• Office networks needing VLAN and QoS features
• Surveillance systems with IGMP snooping
• Workgroups requiring link aggregation

Key specifications

• 16 Gigabit Ethernet ports (10/100/1000 Mbps)
• Switching capacity: 32 Gbps
• Packet forwarding rate: 23.8 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 10 KB
• VLAN support: Port-based, Tag-based, MTU VLAN (up to 32 VLANs)
• QoS: Port-based, 802.1p, DSCP, 4 priority queues
• Link aggregation: up to 8 groups, 4 ports per group
• IGMP snooping: V1/V2/V3
• Fanless design
• Rack-mountable 1U metal case
• Internal power supply: 100-240VAC, 50/60Hz
• Operating temperature: 0°C to 40°C
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use Category 5e or higher Ethernet cables. Configure VLANs to isolate traffic and QoS to prioritize voice or video. The switch is suitable for desktop or rack mounting.
