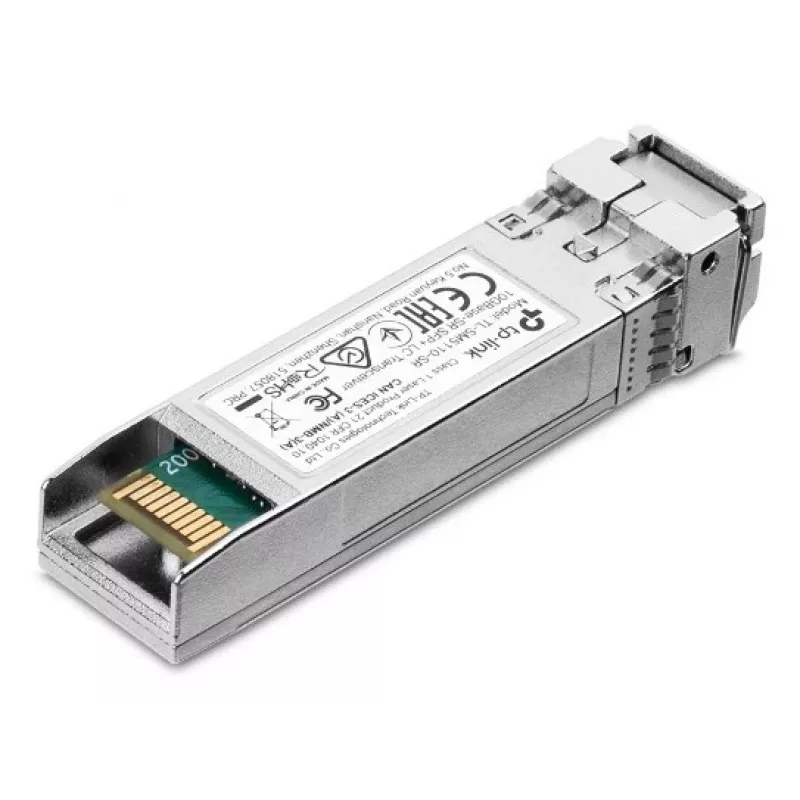

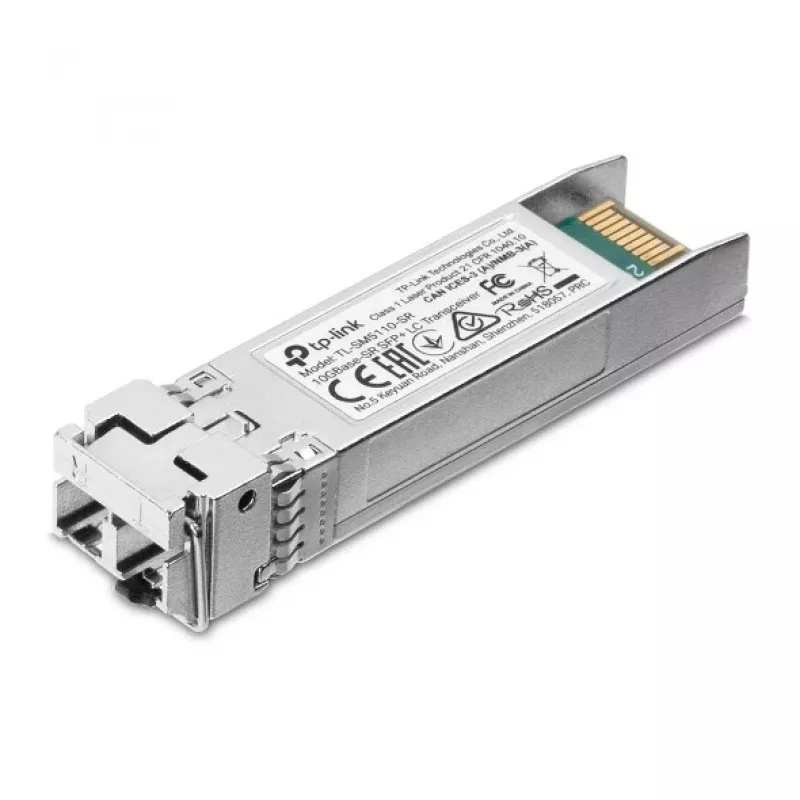

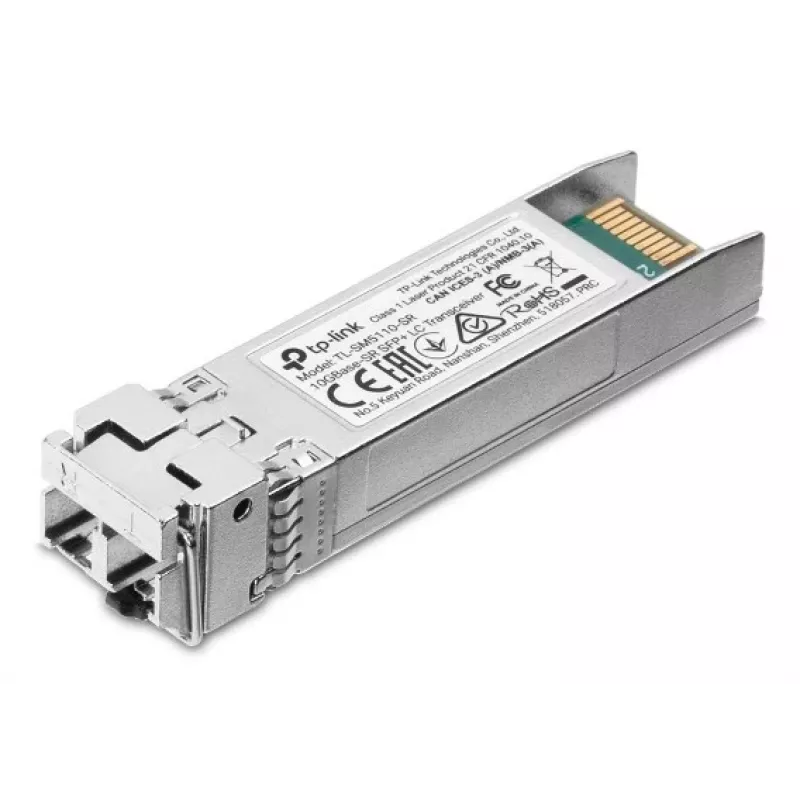

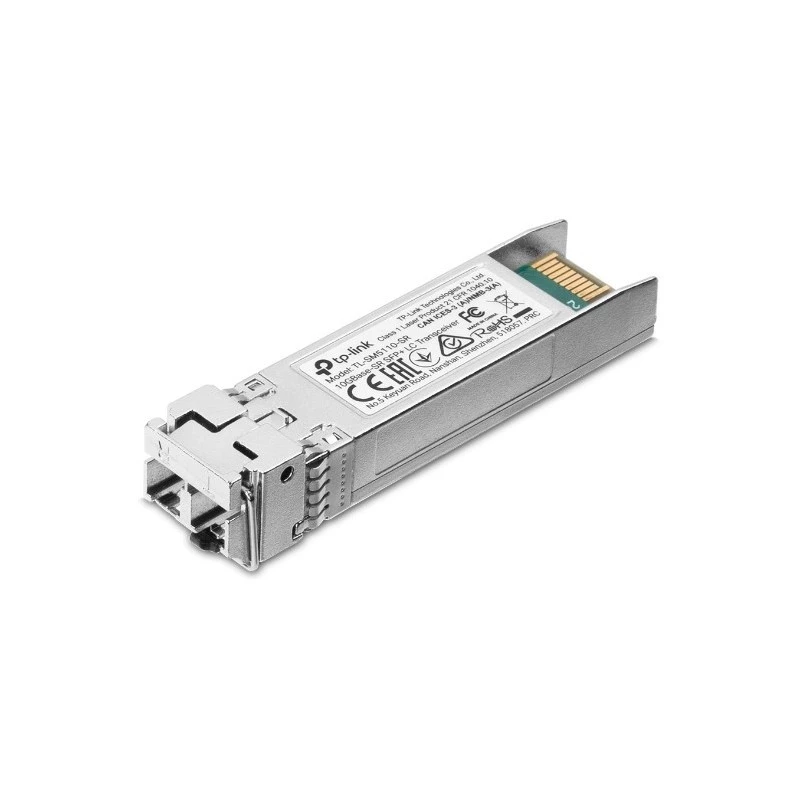

TP-Link SM6110-SR network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm

The TL-SM5110-SR is a 10GBASE-SR SFP+ transceiver designed to extend transfer distances for 10Gbps Ethernet links. Operating at an 850 nm wavelength, this multi-mode optical module supports full-duplex 10G Ethernet connections and is intended for short-reach fiber applications.

Advantages

The module provides high-performance 10Gbps connectivity in a compact SFP+ form factor. It supports reliable full-duplex communication and is compatible with multi-mode fiber, enabling cost-effective short-distance links within data centers and enterprise networks.

Key specifications

• Type: 10GBASE-SR SFP+
• Wavelength: 850 nm
• Fiber type: Multi-mode fiber (MMF)
• Maximum reach: Up to 300 m with 50/125 µm MMF
• Maximum reach: Up to 33 m with 62.5/125 µm MMF
• Duplex: Full duplex
• Data rate: 10 Gbps

How to use

Insert the TL-SM5110-SR into an available SFP+ port on a compatible switch or network device, ensuring correct orientation. Connect the appropriate multi-mode fiber cable (50/125 µm or 62.5/125 µm) between devices and verify link status on the equipment. Observe maximum distance limits to maintain signal integrity and performance.

Recommendations

Choose the fiber type according to link distance: use 50/125 µm MMF for links up to 300 m and 62.5/125 µm MMF for shorter runs up to 33 m. Ensure devices support 10GBASE-SR and SFP+ modules for interoperability.
