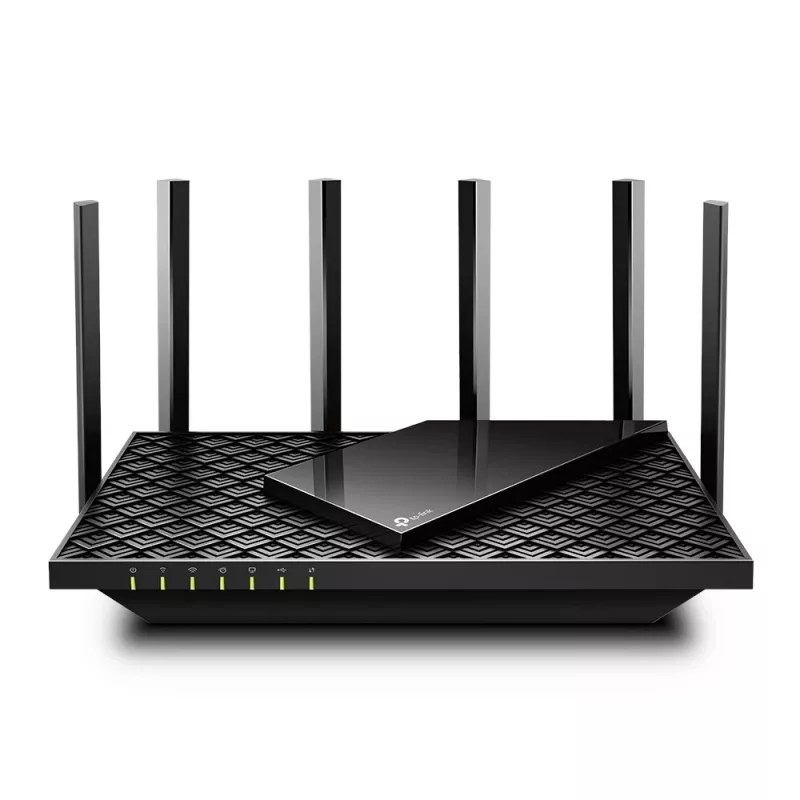

TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black

The TP-Link Archer AX5400 Dual-Band Wi-Fi 6 router delivers up to 5400 Mbps combined throughput across 2.4 GHz and 5 GHz bands, using the Wi‑Fi 6 (802.11ax) standard and a 4T4R HE160 structure on the 5 GHz band. Six external antennas, high-power FEM and beamforming focus signal strength toward connected devices to extend coverage and provide stable connections throughout a home. The router supports Gigabit Ethernet LAN and WAN interfaces, one USB 3.0 port for media sharing, and advanced security features including WPA3 and the HomeShield service for network and IoT protection.

Advantages

The router provides faster speeds, reduced latency and higher capacity for many simultaneous connections, supporting over 200 devices with MU‑MIMO and OFDMA to reduce congestion and improve average throughput. Enhanced ventilation helps dissipate heat under heavy load. HomeShield detects abnormal incoming traffic and can block requests from listed IPs while parental controls let you manage online time and restrict inappropriate content. Link aggregation is supported on two LAN ports for increased wired throughput.

Suitable for

• High-definition streaming and simultaneous 4K video playback
• Online gaming with lower latency
• Homes or small offices with 50–200+ connected devices
• Media sharing and private cloud via USB 3.0

Key specifications

• Wi‑Fi standard: Wi‑Fi 6 (802.11ax)
• Bands: Dual‑band (2.4 GHz / 5 GHz)
• Maximum throughput: 5400 Mbit/s (combined)
• Antennas: 6 external antennas
• Structure: 4T4R with HE160 on 5 GHz
• Ethernet ports: 4 × Gigabit LAN, 1 × Gigabit WAN
• USB: 1 × USB 3.0
• Security: WPA3, HomeShield network and IoT protection
• Link aggregation: Static LAG on 2 LAN ports
• Colour: Black

How to use

Place the router centrally in your home to maximize coverage and connect the WAN port to your modem using an Ethernet cable. Power on the device and follow the quick setup using the TP‑Link Tether app or the web management interface to configure Wi‑Fi names (SSIDs), passwords and security settings. Connect wired devices to Gigabit LAN ports and attach external storage or a USB drive to the USB 3.0 port for media sharing or private cloud access. Enable HomeShield and parental controls as needed to manage access and monitor network activity.

Recommendations

For best performance, position the Archer AX5400 at a raised, central location away from large metal objects and sources of interference; keep firmware up to date and enable WPA3 and HomeShield features for improved security and device management.
