Touchscreen Keypad Satel INTEGRA INT-TSH2-W

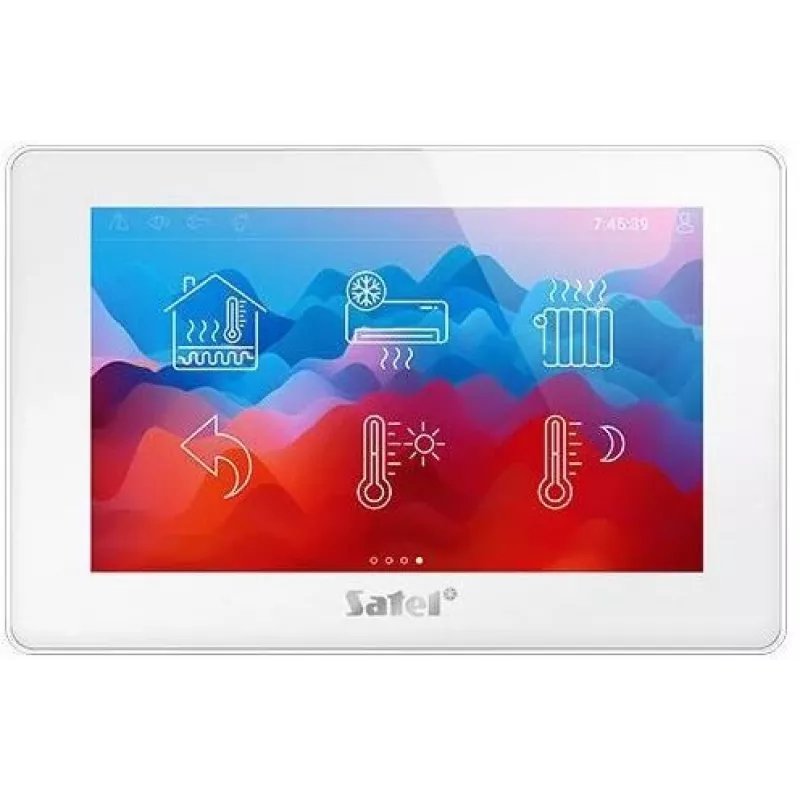

The Satel INTEGRA INT-TSH2-W is a 7" touchscreen keypad designed to replace traditional alarm-system keypads with a modern, customizable interface. It features a high-resolution LCD (41024 x 600 pixels), a capacitive touch panel that supports swipe gestures, and options for wall or tabletop mounting. Available in white or black, the keypad connects to the INTEGRA system at 12 V and is intended for everyday control of alarm and building automation functions.

Advantages

The capacitive screen provides precise touch response and swipe support while the upgraded processor and software ensure smooth operation even with complex systems. The interface supports more than 16 million colours and is fully customisable: installers can create themes, set wallpapers and adjust screen brightness and sound volume. Models with built-in MIFARE® card readers (INT-TSH2R, INT-TSG2R) allow convenient arming and control without entering a password.

Suitable for

• Residential alarm systems
• Small and medium commercial buildings
• Integration with building automation functions
• Locations where a modern, wall-mounted control panel is required

Key specifications

• Display size: 7" (model INT-TSH2-W)
• Resolution: 41024 x 600 pixels
• Touch type: capacitive touch panel
• Power supply: 12 V
• Mounting: wall or tabletop
• Colour variants: white and black
• Optional card reader: MIFARE® (INT-TSH2R / INT-TSG2R)
• Dimensions (W×D×H): 120 mm × 92 mm × 14 mm

How to use

Install the keypad on a compatible INTEGRA system according to the installer’s instructions and connect it to a 12 V supply. Use the capacitive screen to navigate the multiscreen, multilevel menu; swipe gestures and touch controls make selecting zones, arming/disarming and controlling automation devices intuitive. If your model includes a card reader, present a compatible MIFARE® proximity card to perform authorised actions without entering a code.

Recommendations

Adjust the screen brightness and sound volume to suit the environment and time of day. Work with your installer to configure themes, place icons on the available screens and, if desired, upload a building map to simplify locating and controlling connected devices.
