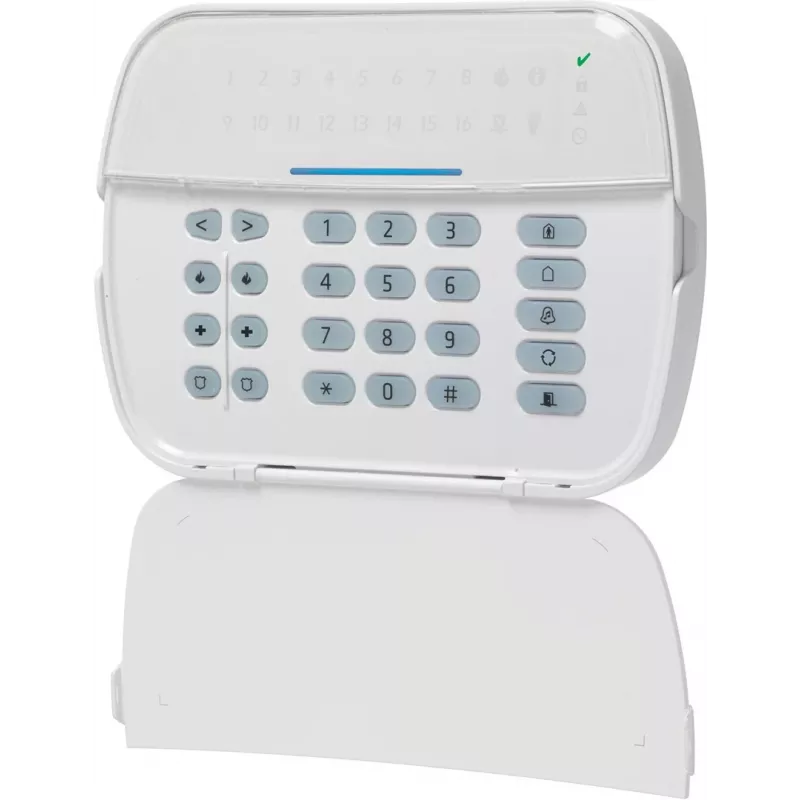

Wired LED Keypad DSC 45008 for security panels — 16 zones, F1–F5 function keys

The Wired LED Keypad DSC 45008 provides a compact, hardwired user interface for compatible DSC security control panels. It features LED indicators that show system status and zone conditions, five programmable function keys labeled F1–F5 for quick actions, and supports up to 16 zones. The keypad offers basic arming and disarming controls and clear visual feedback, making it suitable for residential and small commercial alarm installations where a reliable wired keypad is required.

Advantages

The keypad delivers clear LED status indications for zones, system armed/disarmed state, and fault conditions, enabling straightforward monitoring at the control point. Built-in programmable F1–F5 keys allow customization of common tasks such as panic, bypass, or other user-defined functions without navigating complex menus. Designed for wired connection to DSC panels, the device provides consistent power and communication reliability compared with wireless alternatives. The compact form factor and straightforward layout simplify installation and daily use.

Suitable for

• Residential alarm systems requiring a dedicated wired keypad
• Small offices and retail premises with up to 16 monitored zones
• Installations where visible LED status indicators and quick-function keys are needed
• Retrofit projects replacing or expanding existing wired control systems

Key specifications

• Interface type: wired LED keypad compatible with DSC control panels
• Zone capacity: supports indication for up to 16 zones
• Function keys: five programmable function keys (F1–F5) for user-defined actions
• Indicators: multi-segment LED indicators for system status and zone faults
• User controls: arming and disarming functions via keypad input
• Installation: flush or surface mounting as per panel wiring requirements

How to use

Connect the keypad to a compatible DSC security panel following the panel wiring diagram and local electrical codes; ensure power is isolated during installation. Once wired and powered, use the numeric keypad and LED indicators to arm or disarm the system and to view zone statuses. Program the F1–F5 keys through the control panel programming menus or installer setup to assign actions such as panic alarm, bypass zone, or quick arm. Verify each zone indicator responds correctly by performing an opening and closing test on sensors while observing LED feedback.

Recommendations

Position the keypad in a convenient, visible location near main entry points for quick access. Use the programmable F1–F5 keys for the most frequent functions to reduce response time. Maintain regular system tests to confirm LED indications and key functions remain operational; consult the DSC panel manual for programming details and compatibility notes.
