DSC CorBus Neo Power Supply Module HSM2300

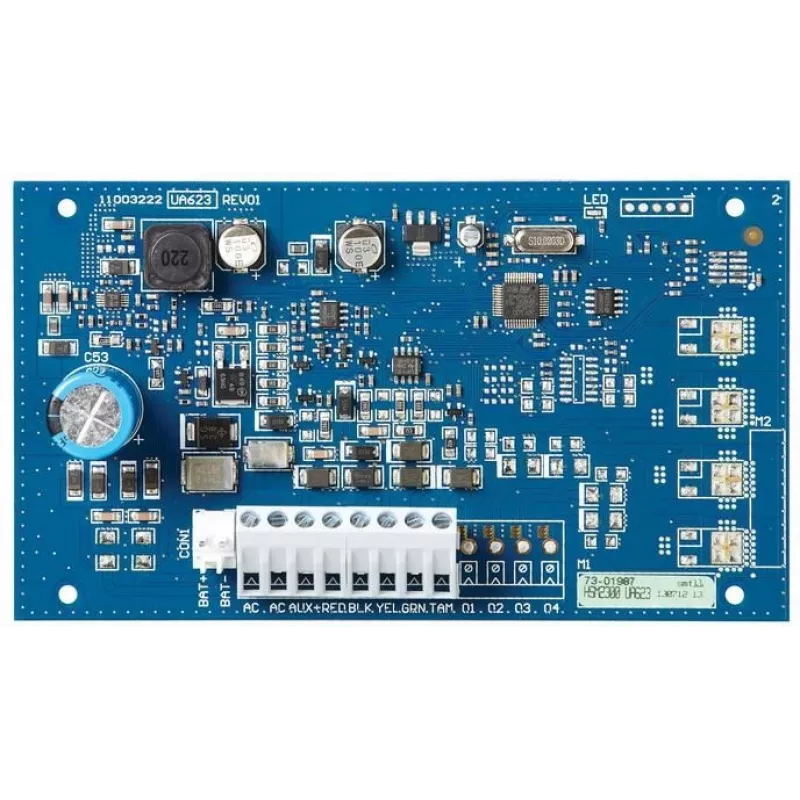

The DSC CorBus Neo Power Supply Module HSM2300 is an auxiliary power supply module designed for use with DSC PowerSeries Neo security systems. It provides reliable power distribution and battery charging capabilities, ensuring continuous operation of your security system.

Advantages

This module offers a dedicated 1A auxiliary power output at 12VDC, along with a 700mA siren output. It features comprehensive supervision for AC failure, low battery, and auxiliary power failure, enhancing system reliability. The module supports 12V lead-acid battery charging with a 500mA current, and includes status LEDs for easy monitoring.

Suitable for

• DSC PowerSeries Neo security systems requiring additional power distribution
• Installations needing battery backup and charging capabilities
• Systems requiring supervised auxiliary power and siren outputs

Key specifications

• Product Type: Auxiliary Power Supply Module
• System Compatibility: DSC PowerSeries Neo Security Systems
• Bus Interface: CorBus
• Auxiliary Power Output: 1A @ 12VDC
• Input Voltage (AC): 16.5 VAC (from external transformer)
• Battery Charging Capability: Yes
• Battery Type Supported: 12V Lead-Acid
• Battery Charging Current: 500mA
• Supervision Features: AC Failure, Low Battery, Auxiliary Power Failure
• Dedicated Siren Output: Yes
• Siren Output Current: 700mA (max)
• Module Current Draw: 40mA (standby)
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Operating Humidity: 5% to 93% RH non-condensing
• Protection: PTC Resettable Fuses
• Indicators: Status LEDs (AC, BAT, AUX)
• Mounting: Enclosure Mountable (PCB)

Recommendations

For optimal performance, use with a compatible DSC PowerSeries Neo alarm panel and a 12V lead-acid battery. Ensure proper enclosure mounting and follow all local electrical codes.
