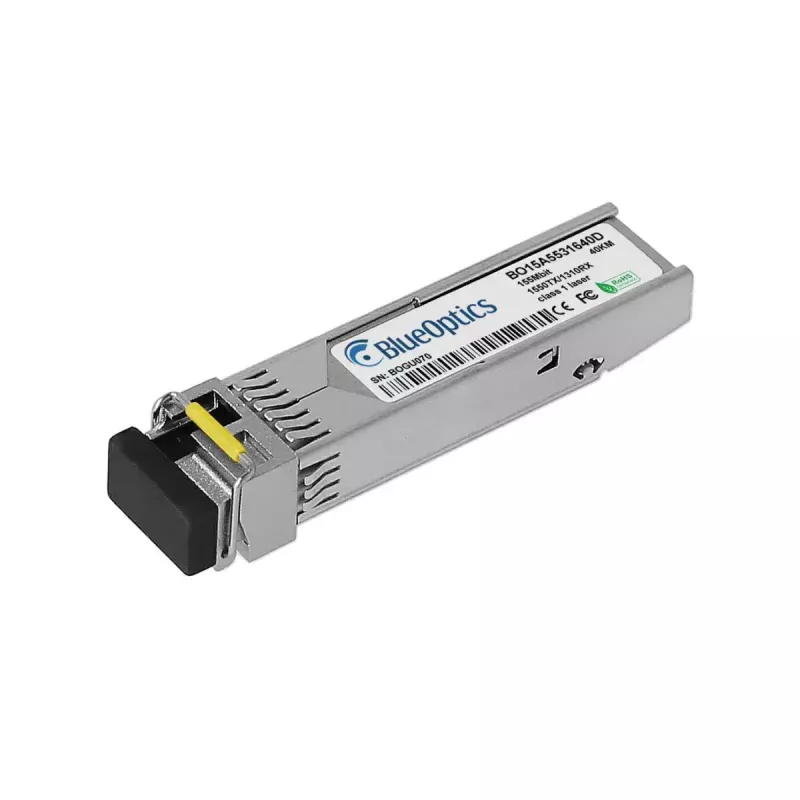

SFP transceiver module BlueOptics 551095-BO Fiber optic 1250 Mbit/s

The BlueOptics 551095-BO SFP transceiver module is a compact fiber optic interface designed for 1.25 Gigabit Ethernet links with a maximum data transfer rate of 1250 Mbit/s. Built in a standard SFP form factor and finished in silver, the module supports LC fiber connectors and enables single-mode links up to 40,000 m. With an MTBF of 1,000,000 hours and compliance with CE, FCC and RoHS directives, this transceiver is intended for use in networking equipment where a reliable, interoperable fiber uplink or link extension is required.

Advantages

The module’s compact SFP form factor allows hot-pluggable installation in switches, routers and media converters that accept SFP optics. Support for LC connectors and a long maximum transfer distance make it suitable for long-reach single-mode fiber connections. The rated MTBF of 1,000,000 hours and regulatory compliance provide predictable service life and simplified integration into standards-compliant network installations.

Suitable for

• Long-reach single-mode fiber links between buildings or data centers
• Uplink ports on switches and routers that use SFP modules
• Media converters and modular transceiver slots for fiber connectivity
• Network upgrades requiring 1.25 Gigabit Ethernet fiber interfaces

Key specifications

• Maximum data transfer rate: 1250 Mbit/s
• Maximum transfer distance: up to 40,000 m (single-mode)
• Ethernet interface type: 1.25 Gigabit Ethernet
• Fiber optic connector: LC
• Form factor: SFP (hot-pluggable)
• Product colour: Silver
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours
• Compliance: CE, FCC, RoHS

How to use

Handle the transceiver by its housing and avoid touching the fiber connector end-face. Insert the BlueOptics 551095-BO into an appropriate SFP slot until it clicks, then secure the fiber cable with an LC connector. Configure the host device’s interface settings (speed and duplex if required) and verify link status through the device management interface or link LEDs. For removal, power down or follow your device’s hot-swap procedure, then depress the latch and pull the module straight out.

Recommendations

Use clean, inspected LC connectors and appropriate single-mode fiber cabling for distances approaching the module’s maximum. Keep dust caps on unused transceivers and use ESD precautions when handling. Verify compatibility with the host device’s supported SFP module list to ensure firmware and optical parameter alignment.
