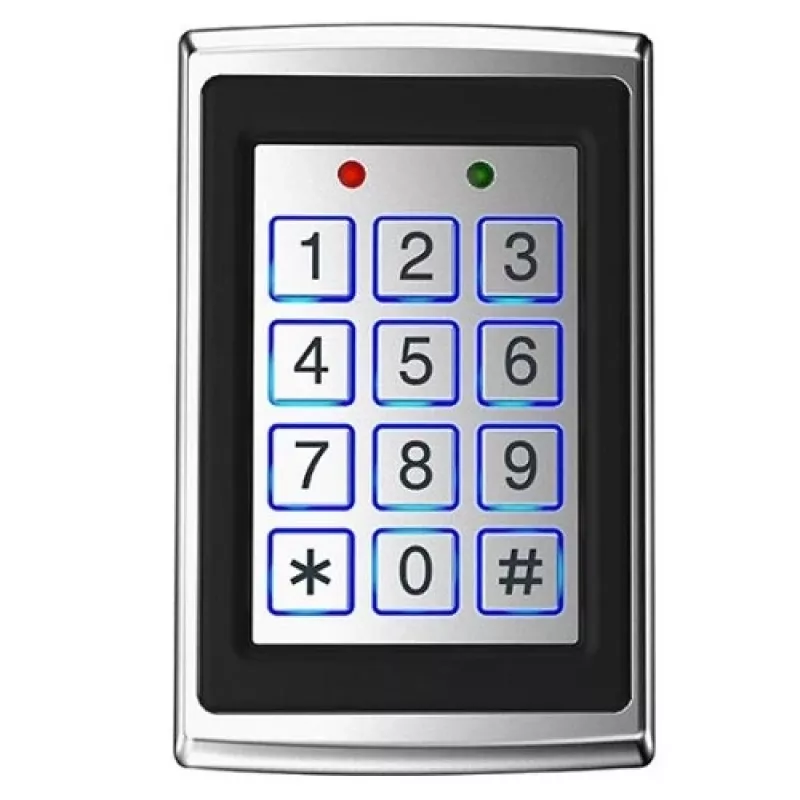

HISMART TV993772 Multifunction Access Control Keypad with Mifare Card Reader, PIN, 2000 Users, IP65, Wiegand 26/34, Zinc Alloy

Lost keys and duplicated credentials create security gaps, while basic keypads leave no audit trail. The HISMART TV993772 solves this by combining a Mifare card reader, backlit PIN keypad, and integrated controller in one rugged, weather-resistant unit. Manage up to 2,000 users with card, PIN, or card+PIN authentication, and connect to larger systems via Wiegand 26/34.

Who is it for

Ideal for small to medium businesses, office doors, server rooms, storage areas, residential communities, and any site needing a cost-effective standalone access solution. Security integrators and electricians will appreciate its dual standalone/Wiegand operation.

Main features

• Integrated Mifare reader: Works with 13.56 MHz Mifare cards and fobs, a widely used and secure contactless credential.
• Combined keypad and reader: Supports card-only, PIN-only, or card+PIN authentication for enhanced security.
• Large user capacity: Stores up to 2,000 users and keeps a 10,000-event audit trail.
• Standalone or system use: Built-in controller manages door locking directly, while Wiegand 26/34 input/output allows connection to third-party controllers.
• Durable and weatherproof: Zinc alloy casing with IP65 rating for dust and water resistance, suitable for outdoor use.
• Backlit keypad: Numeric keypad with backlight for easy use in low-light conditions.
• Adjustable door open time: Configurable from 0 to 99 seconds to suit different door types.
• Alarm outputs: Supports tamper, door ajar, and forced entry alarms for comprehensive security.

Specifications

• Product type: Access Control Keypad with Integrated Reader
• Reader technology: Mifare (13.56 MHz)
• Integrated controller: Yes
• Authentication modes: Card, PIN, Card + PIN
• User capacity: 2000 users
• Event log capacity: 10,000 events
• Operating voltage: DC 12V
• Current consumption: <100mA (standby), <150mA (active)
• Output relay: 1 x door lock relay
• Wiegand interface: Wiegand 26/34 input & output
• Keypad type: Backlit numeric keypad
• Material: Zinc alloy casing
• Ingress protection: IP65
• Operating temperature: -20°C to 60°C
• Adjustable door open time: 0-99 seconds
• Alarm output: Yes (tamper, door ajar, forced entry)
• Status indicators: Multi-color LED, buzzer
• Mounting type: Surface mount
• Anti-tamper alarm: Yes
• Short circuit protection: Yes

Tips

For maximum security, use card+PIN mode for high-traffic areas. Regularly review the event log to monitor access patterns. Ensure the unit is mounted on a flat surface and protected from direct rain if possible, despite its IP65 rating.
